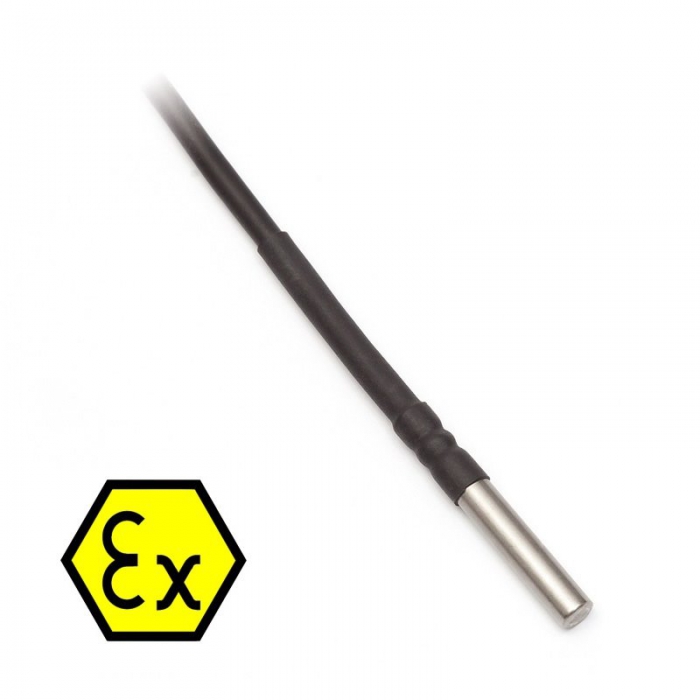

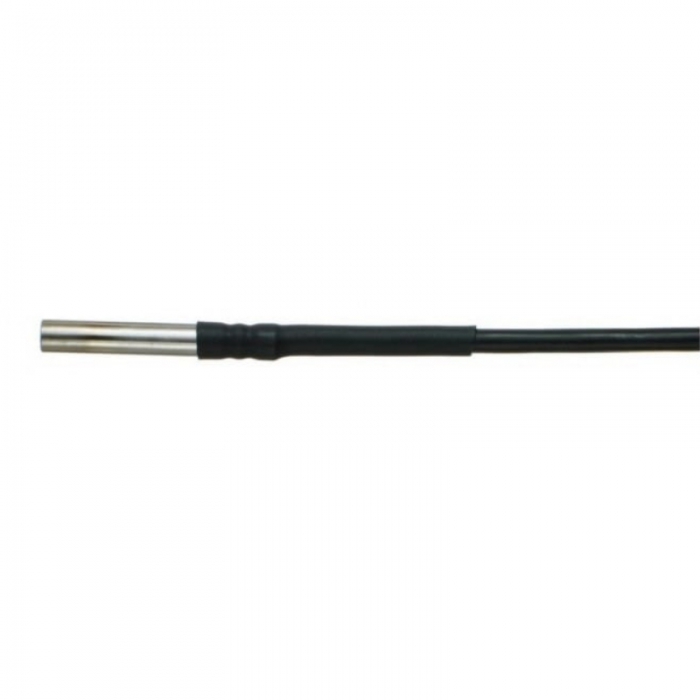

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 5 meters

Multi-purpose watertight IP67 probe -80 to +200°C.

Temperature probes marked II3G Ex ec IIC T3 Gc and II3D Ex tc IIIC T60 °C… 230 °C Dc can be used in potentially explosive atmospheres - equipment group II, zone 2 and zone 22.

The probes operate on the principle of a defined dependence of the change of the sensor property on the change of the temperature. They are not able to generate sparks, arcs or high surface temperatures. The temperature range for use in potentially explosive atmospheres is limited to a maximum temperature of +180 °C (the measuring range must not be exceeded even for a short time). The probes are designed for operation in a chemically non-aggressive environment, the method of use must be chosen with regard to the temperature and chemical resistance of the housing and the supply cable.

The manufacturer issues an EU Declaration of Conformity. The design of the probe is certified due to the certificate FTZÚ07 ATEX 142X.

  • code
    SN265M
  • $144

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +180 °C
Accuracy ± (0.15 + 0.002 ltl) at °C
Accuracy class A
Time response t0.5 <5 s (in flowing water at > 0.2 m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4571
Dimensions of the case length 60 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable silicone shielded
Length of lead-in cable 5 meters
Connector MiniDin
IP protection IP67
Warranty 30 months
