Datalogging Thermometer

Temperature datalogger is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based

on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

  • code

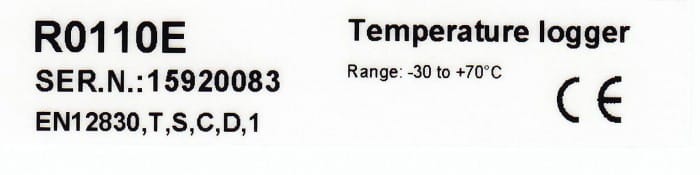

    R0110E
  • Warranty
    3 years
  • $186

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +70 °C
Accuracy ±0.6°C (-30 to +30 °C);
±0.8°C (+30 to +70 °C)
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -40 to +80 °C
Channels internal temperature sensor
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Battery life 7 years
Protection class IP67
Dimensions 93 x 64 x 27 mm
Weight (including batteries) approx. 100 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years

Záruka 3 roky Kalibrační list Teplotní čidlo Teplotní čidlo Dvoustavové vstupy Čítač pulsů Napětí Proud Dvouřádkový LCD displej Vnitřní paměť Napájení bateriemi

Optional accessories and download

Lithium battery 3,6V/AA

Lithium battery 3,6V/AA

code A4203
Price $24
In stock 141 pcs

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price $78
In stock on request

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers

code KIT-GSM-L
Price $606
In stock on request
USB adapter

USB adapter

code LP003
Price $80
In stock 40 pcs
Start/stop magnet

Start/stop magnet

code LP004
Price $10
In stock 56 pcs
COM adapter with protection IP65

COM adapter with protection IP65

code LP012
Price $88
In stock 7 pcs
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

code LP040
Price $504
In stock 8 pcs
Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Price $70
In stock 8 pcs
Antenna for GSM modem

Antenna for GSM modem

code MP009/1
Price $40
In stock 197 pcs
Wall holder for GPRS modem

Wall holder for GPRS modem

code MP036
Price $12
In stock 15 pcs
DIN Rail 35mm holder for GPRS modem

DIN Rail 35mm holder for GPRS modem

code MP037
Price $30
In stock 11 pcs
Communication cable for GSM modem

Communication cable for GSM modem

code QMS2901
Price $14
In stock on request
One time fee for using M2M server - applied for each data logger with modem

One time fee for using M2M server - applied for each data logger with modem

code SLU302
Price $124
In stock on request

wall holder for datalogger

wall holder for datalogger

code F9000
Price $34
In stock 14 pcs
Self Adhesive Dual Lock

Self Adhesive Dual Lock

code MD036
Price $6
In stock 322 pcs

COMET Database

COMET Database

code CDB
Price $900
In stock yes
Software for COMET TPrints and GSM modems

Software for COMET TPrints and GSM modems

code SWR001
Price On request
In stock yes

code BM512

code PPO001

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Android downloder from S/R dataloggers
1.85 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
195.21 KB
download-icon Quick Start Manual
995.74 KB
download-icon Declaration of Conformity
60.37 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon Catalogue Sheets - COMET Data Loggers
2.36 MB
