Digital temperature/humidity probe, cable 2 m

Digital probe with connector MiniDIN.

Stainless steel mesh filter.

The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

Optionally also available with cable of various lengths. For other cable lengths use the selector.

  • code
    DIGIL/M-2
  • $168

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Response time t90 < 6 min, temperature step 20 °C, air flow 1 m/s

HUMIDITY SENSOR

Measuring range 0 to 100 % RV
Accuracy ±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis ±1 % RV
Linearity ±1 % RV

DEW POINT

Measuring range -60 to +80 °C
Accuracy see the manual

GENERAL TECHNICAL DATA

Operating temperature -30 to +105 °C
Protection class IP40
Connector ELKA

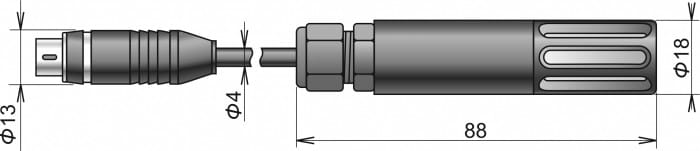

Dimensions (without cable) 88 x 18 mm
Cable length 1 m, 2 m, 5 m, 10 m or 15 m
Weight cca 55 g
Warranty 3 years
