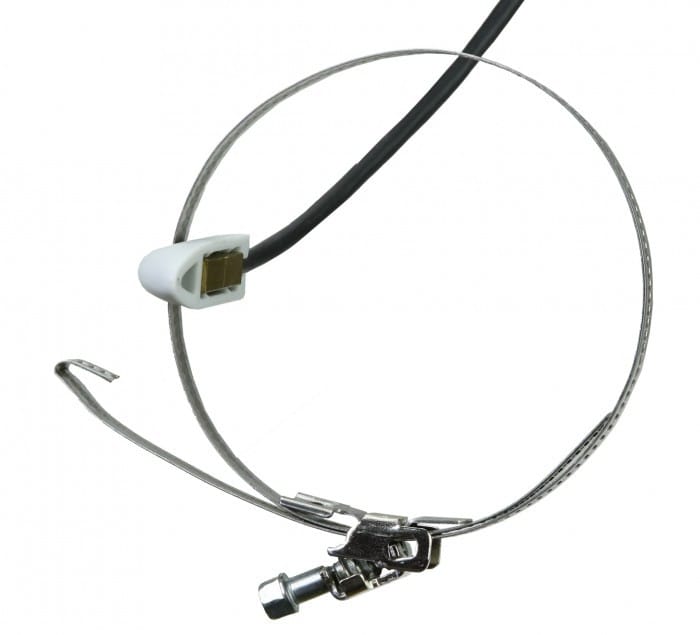

PTS350A-2/0, temperature probe, cable 2 m

Temperature probe with Pt1000 sensor.

Surface probe for tubing and flat surface, range from -30 to +130°C, 2 meters cable, IP65. With ELKA connector.

  • code
    SN170E
  • $95

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +130 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <13 s (on the smooth surface without paste)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Metal housing material brass
Protective housing material POLYAMID
Dimensions of the case 40 x 13 x 12 mm
Material of fastening tape / closure stainless steel / galvanized steel
Fastening tabe length 40 cm
Minimal diameter of pipe 20 mm
Lead-in cable silicone shielded
Length of lead-in cable 2 meters
Connector ELKA
IP protection IP65
Warranty 30 months
