Pt1000TGL40/E, temperature probe, cable 10 m

Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

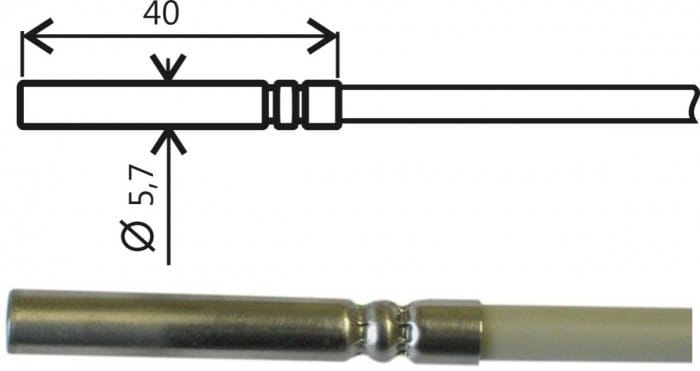

Stainless steel 17241 with PVC cable of specified length. Diameter 5.7mm, length 40mm. Time response t63<10s, t95<30s, measured in fluid. Time response t63<60s, t95<150s, measured in airflow 1m. With ELKA connector.

  • code
    SN188E
  • $84

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4571
Dimensions of the case length 40 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable PVC shielded
Length of lead-in cable 10 meters
Connector ELKA
IP protection IP67
Warranty 30 months
