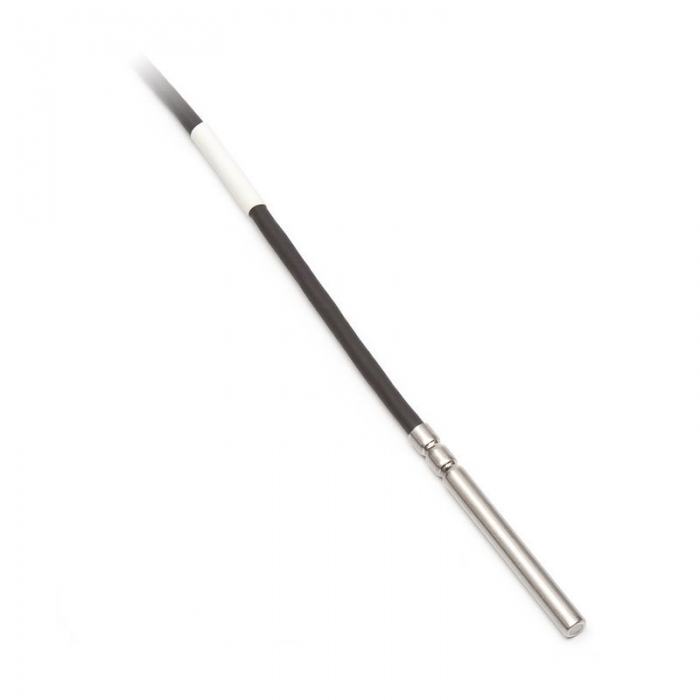

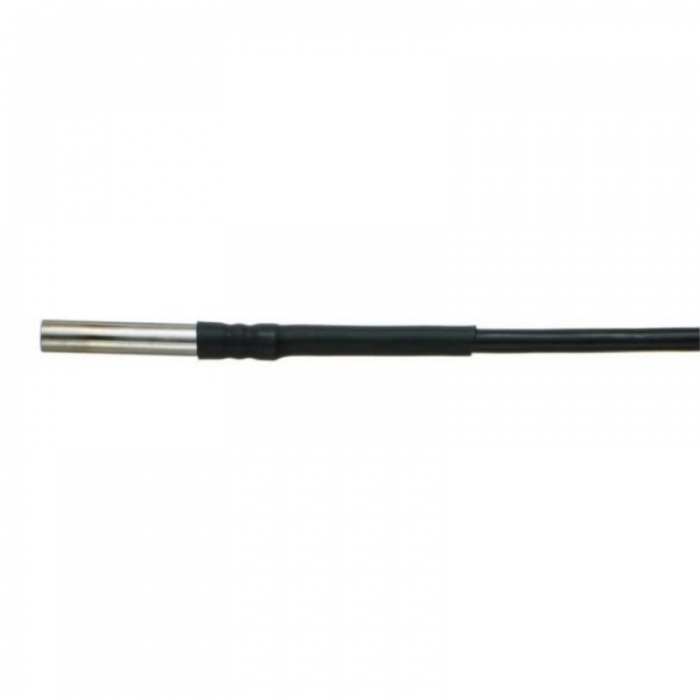

Pt1000TG68/0, temperature probe, cable 2 m

Multi-purpose watertight IP68 probe -50 to +200°C.

Stainless steel 17241 with silicone cable of specified length. Diameter 6mm, length 60mm. Without connector.

Time response t0,50.5m.s-1)
The sensors meet the IP68 ingress protection requirements according to the EN 60 529 standard. They can be immersed permanently up to depth of 5m.

  • code
    SN232
  • $70

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +200 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <12 s (in flowing water at > 0.2 m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4404

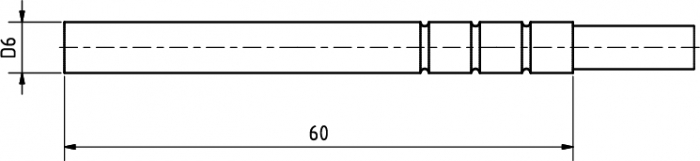

Dimensions of the case length 60 mm;
diameter 6 ± 0.1 mm
Lead-in cable silicone shielded
Length of lead-in cable 2 meters
Connector without connector
IP protection IP68
Warranty 30 months
