Pt1000TG7/E, temperature probe

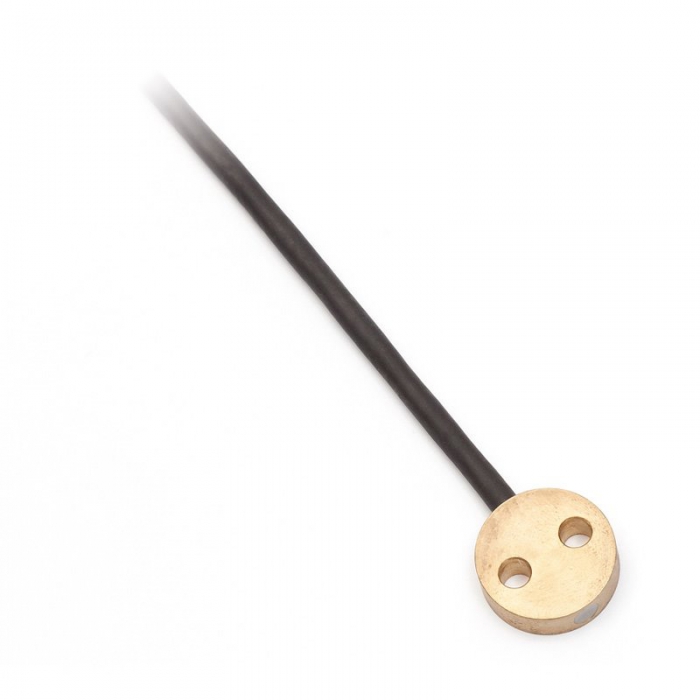

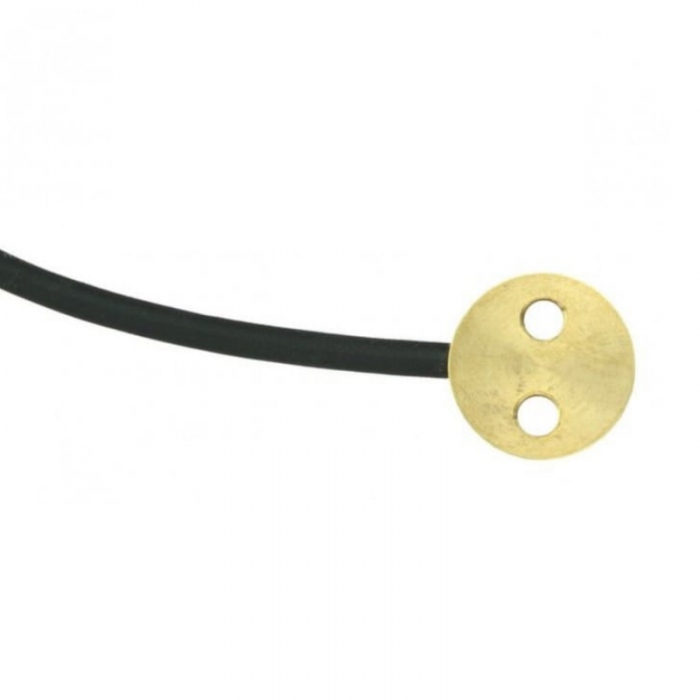

Temperature probe with Pt1000 sensor.

Brass surface probe with cable of specified length, without connector. Range from -30 to +200°C, accuracy ±(0,15+0,002 |t|). Diameter 18mm, width 6.5mm, 2wires.

Mounting by a M4 srew or fixing by a self adhesive tape. IP65 protection.

Optionally also available with cable of various lengths. For other cable lengths use the selector.

  • code
    SN164E
  • $95

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +200 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <10 s (on flat surface of Al prism without paste)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case brass

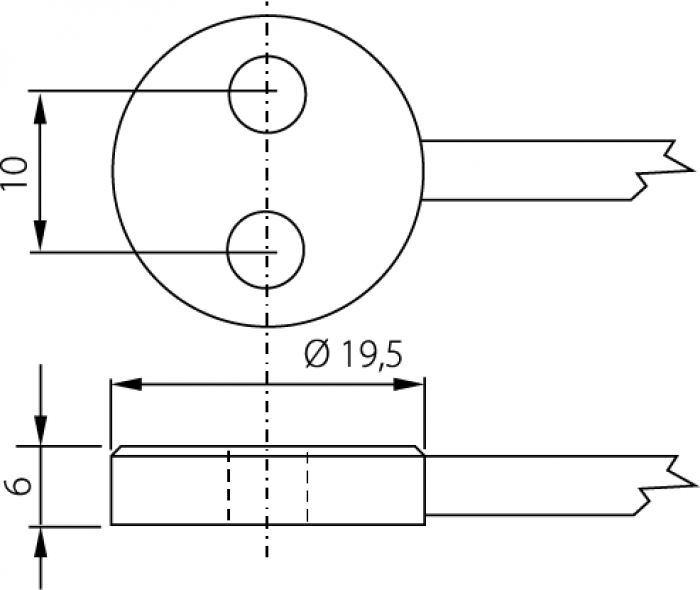

Dimensions of the case height 6 ± 0.1 mm;
diameter 19.5 ± 0.1 mm;
mounting holes diameter 4.3 ± 0.05 mm
Lead-in cable silicone shielded
Length of lead-in cable 1 meter
Connector ELKA
IP protection IP65
Warranty 30 months
