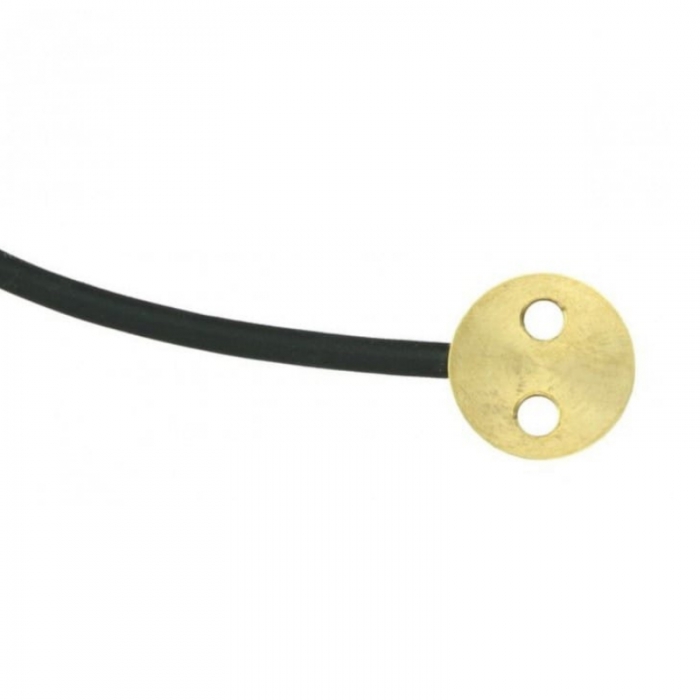

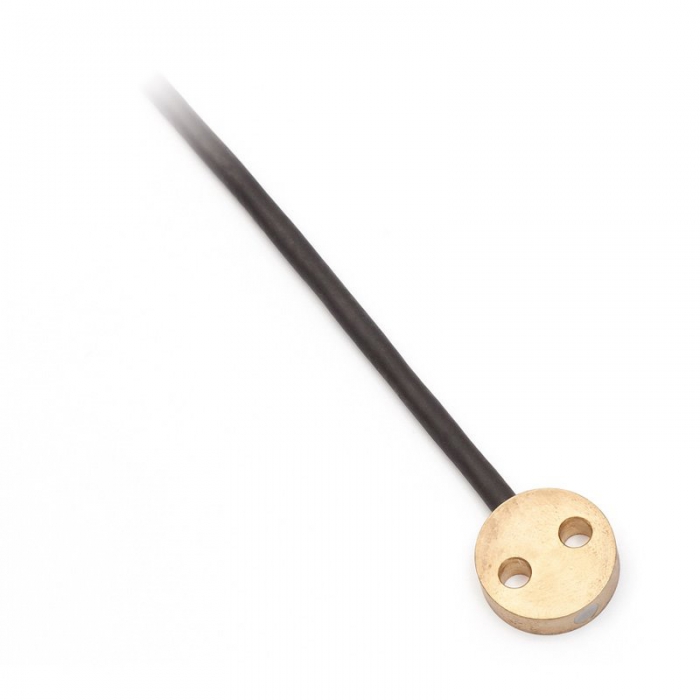

Pt1000TG7/M, temperature probe, cable 5 m
Temperature probe with Pt1000 sensor.
Brass surface probe with cable of specified length, with MiniDIN connector. Range from -30 to +200°C, accuracy ±(0,15+0,002 |t|). Diameter 18mm, width 6.5mm, 2wires.
Mounting by a M4 srew or fixing by a self adhesive tape. IP65 protection.
Optionally also available with cable of various lengths. For other cable lengths use the selector.

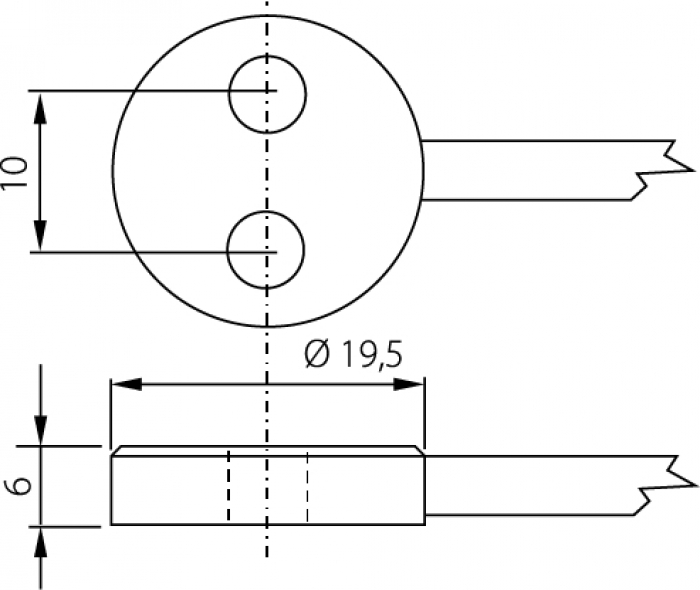

GENERAL TECHNICAL DATA
diameter 19.5 ± 0.1 mm;
mounting holes diameter 4.3 ± 0.05 mm
