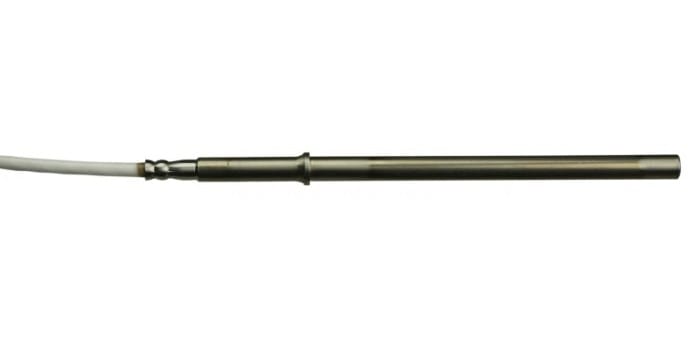

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 1 meter
Temperature probe with Pt1000 sensor.
The temperature sensors Pt1000TR050M are designed for measuring temperatures of gaseous and liquid substances.

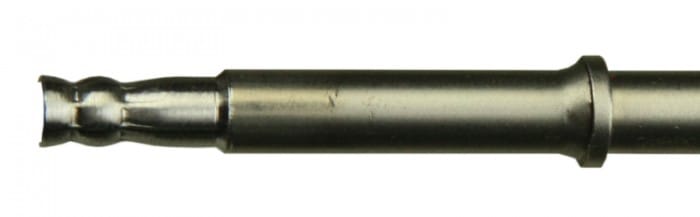

The temperature range for application of the sensor is -50°C to +400 °C, the maximum temperature may be exceeded up to 450°C in a short time (relates to active measuring part of sensor which is determinated by spacer ring).
Around the lead in cable with Teflon insulation must not be temperature higher than 260 °C.
They meet the ingress protection IP64 according to the EN 60 529 standard. The sensors are suitable for temperature measurement in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.
- On request
± (0.3 + 0.005 t) at °C in range over +250 °C
GENERAL TECHNICAL DATA

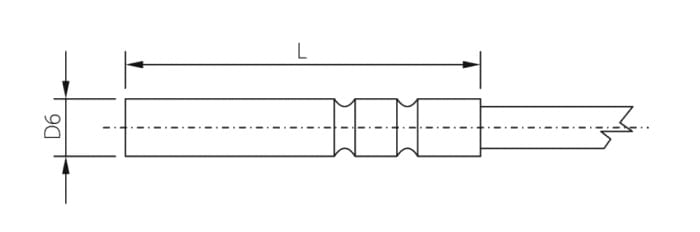

spacer ring diameter 8 mm
