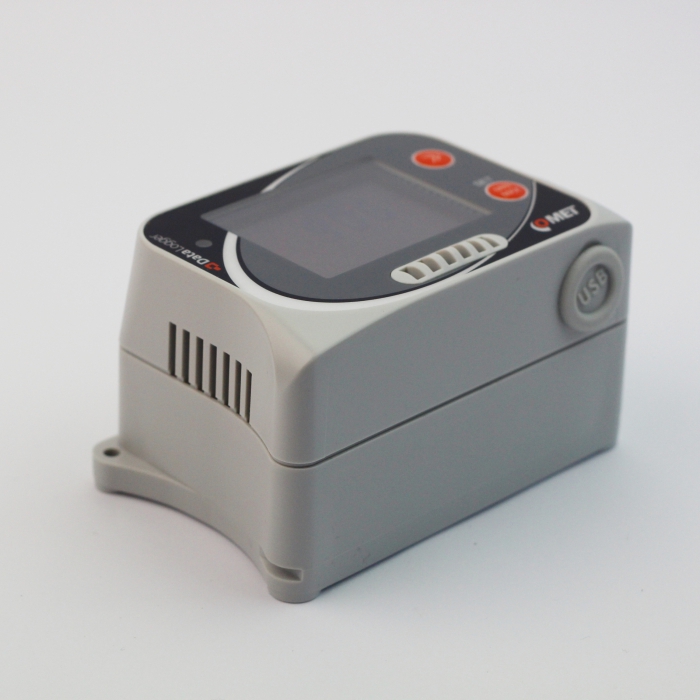

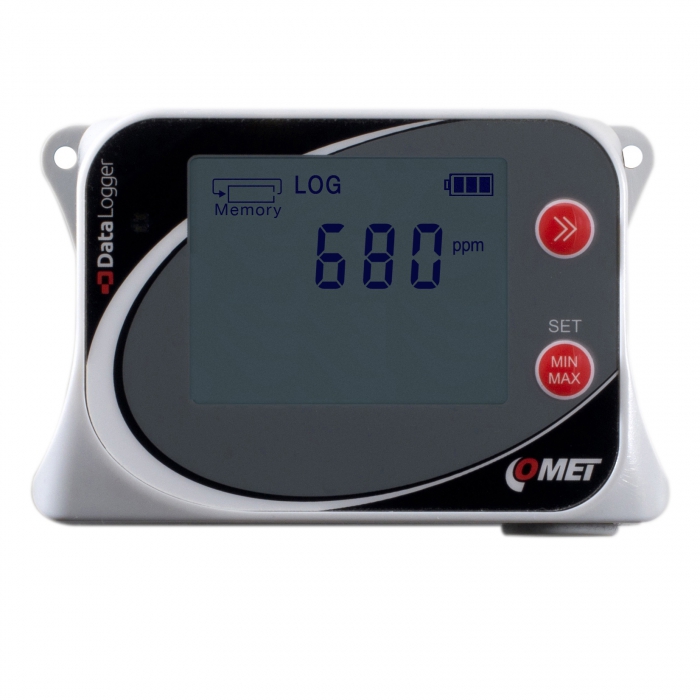

CO2 data logger with built-in sensors

Datalogger is designed to record CO2 from built-in sensor. In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

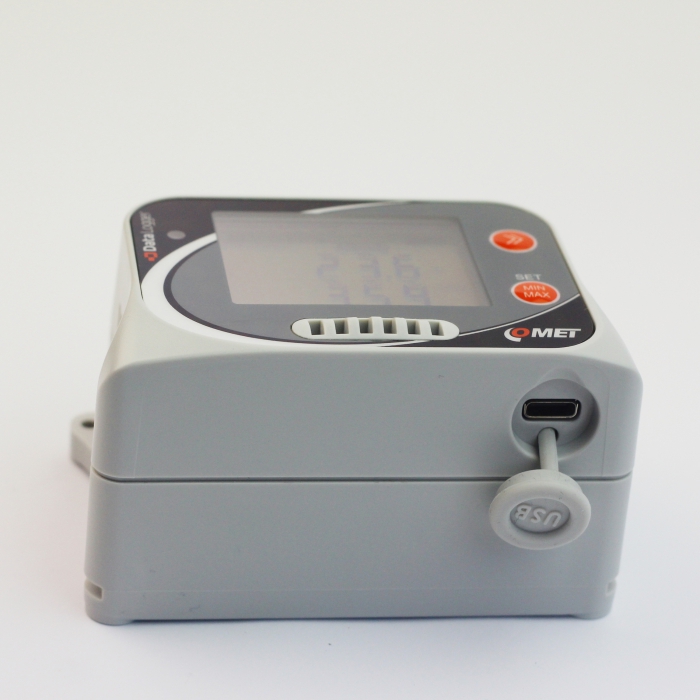

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U8410
  • Warranty
    3 years
  • $660

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 5000 ppm
Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal sensor for CO2
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery SONY LiIon 5200mAh
Protection class IP20
Dimensions 61 x 93 x 53 mm
Weight (including batteries) approx. 250 g
Warranty 3 years
