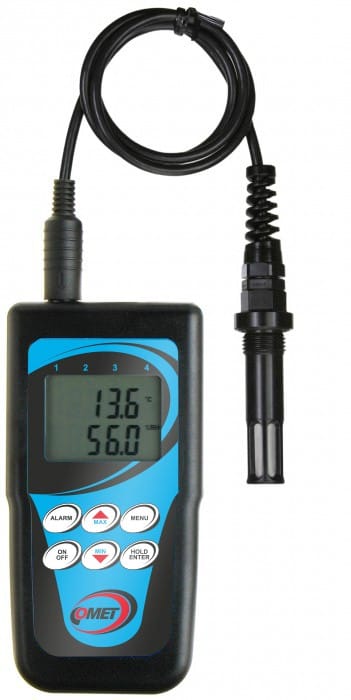

Thermo-hygrometer for compressed air measurement, cable 4 meters

Thermometer, hygrometer is designed for direct measurement of temperature, relative humidity for compressed air up to 25 bars with 4 meters cable. Audio and optical alarm of measured values. Memory of minimum and maximum measured values. Function Hold - manual storing of actual values for later displaying.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 4 meters cable.



  • code
    C3121P-4
  • Warranty
    3 years
  • $599

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -50 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
Channels 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD YES
Measuring interval and display reading refresh 0.7 to 5 s
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 4 months
Protection class IP20 electronics, IP40 sensors
Dimensions (without connectors) 141 x 71 x 27 mm
External probe cable length 4 meters
Weight (including batteries) approx. 150 g
Warranty 3 years

Optional accessories and download
