Pt1000TR160/M, temperature probe, cable 5 m
Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

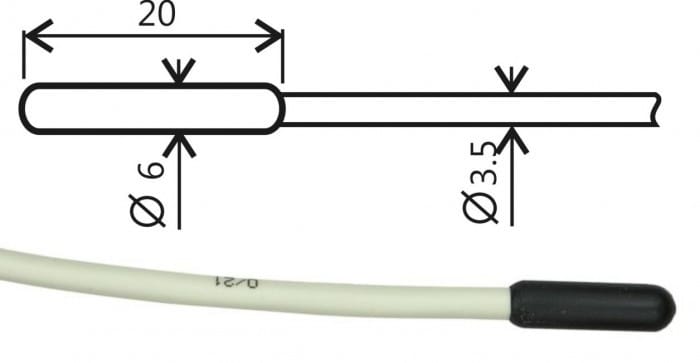

Tolerance t = ±(0.30+0.005*|t|) - class B in accordance with IEC751. Polyamide enclosure with shielded PVC cable of specified length. Enclosure diameter 6mm, length 20mm. Diameter of the cable 3. With MiniDIN connector.
-
codeSN201M
- $75
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
± (0.3 + 0.005 t) at °C
Accuracy class
A
Time response
t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
t50 <12s, t90 <32s (in liquid)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
POLYAMIDE-based plastic
Dimensions of the case
length 20 mm;
diameter 5.7 ± 0.1 mm
diameter 5.7 ± 0.1 mm
Lead-in cable
PVC shielded
Length of lead-in cable
1 meter
Connector
MiniDin
IP protection
IP67
Warranty
30 months
