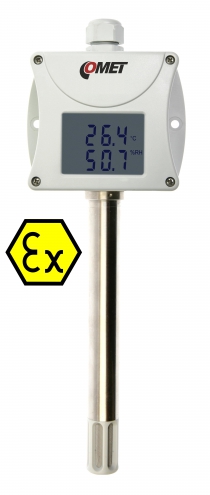

Intrinsically safe humidity and temperature duct transmitter with 4-20mA output

ATEX certified humidity and temperature transmitter. Use in potentially explosive atmosphere. Duct mount.

Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

ATEX certification for use in potentially explosive environments.



  • code
    T3113Ex
  • Warranty
    3 years
  • $505

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +125 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATEX CERTIFICATION

Certificate FTZÚ 13 ATEX 0189X
Marking EX ll 3G Ex ic llC T6 Gc

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 250 x 39,5 mm; stem length 150 mm
Weight approx. 150 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX


Optional accessories and download

Other accessories

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price $50
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price $20
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price $60
In stock on request
sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Price $30
In stock on request
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price $10
In stock 26 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price $10
In stock 61 pcs
plastic gland for direct mounting of the humidity probe

plastic gland for direct mounting of the humidity probe

code SP004
Price $5
In stock 17 pcs
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Price $5
In stock 20 pcs
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price $75
In stock 54 pcs
Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price $80
In stock 14 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price $80
In stock 14 pcs
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price $25
In stock on request
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price $25
In stock on request
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

Discontinued
