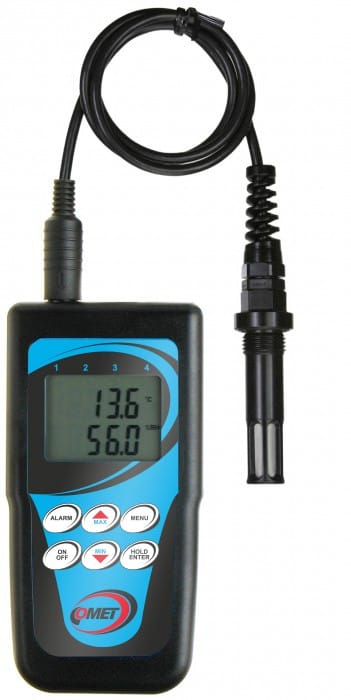

Thermo-hygrometer for compressed air measurement

Thermometer, hygrometer is designed for direct measurement of temperature, relative humidity for compressed air up to 25 bars with 1m cable. Audio and optical alarm of measured values. Memory of minimum and maximum measured values. Function Hold - manual storing of actual values for later displaying.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 1meter cable. Cable lengths 2 and 4 meters available optionally.



  • code
    C3121P
  • Warranty
    3 years
  • $678

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -50 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
Channels 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD YES
Measuring interval and display reading refresh 0.7 to 5 s
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 4 months
Protection class IP20 electronics, IP40 sensors
Dimensions (without connectors) 141 x 71 x 27 mm
External probe cable length 1 meter
Weight (including batteries) approx. 150 g
Warranty 3 years

Optional accessories and download

ac/dc adapter 120Vac to 12Vdc/1A, EU

ac/dc adapter 120Vac to 12Vdc/1A, EU

code A1515eu
Price $24
In stock 140 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK

ac/dc adapter 120Vac to 12Vdc/1A, UK

code A1515uk
Price $24
In stock 13 pcs
ac/dc adapter 120Vac to 12Vdc/1A, US

ac/dc adapter 120Vac to 12Vdc/1A, US

code A1515us
Price $24
In stock 1 pcs
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400
Price $28
In stock on request

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price $112
In stock on request

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Price $38
In stock on request
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price $24
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price $76
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price $142
In stock 18 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price $142
In stock 16 pcs
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price $90
In stock 10 pcs
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price $14
In stock 99 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price $14
In stock 36 pcs
Flow chamber for compressed air measurement up to 25 bars

Flow chamber for compressed air measurement up to 25 bars

code SH-PP
Price $160
In stock on request

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
585.36 KB
download-icon Quick Start Manual
442.35 KB
download-icon Declaration of Conformity
61.24 KB

Catalogs

download-icon CATALOG - Portable measuring instruments COMMETER
1.28 MB
download-icon Catalogue Sheets - COMETTER
1.95 MB
