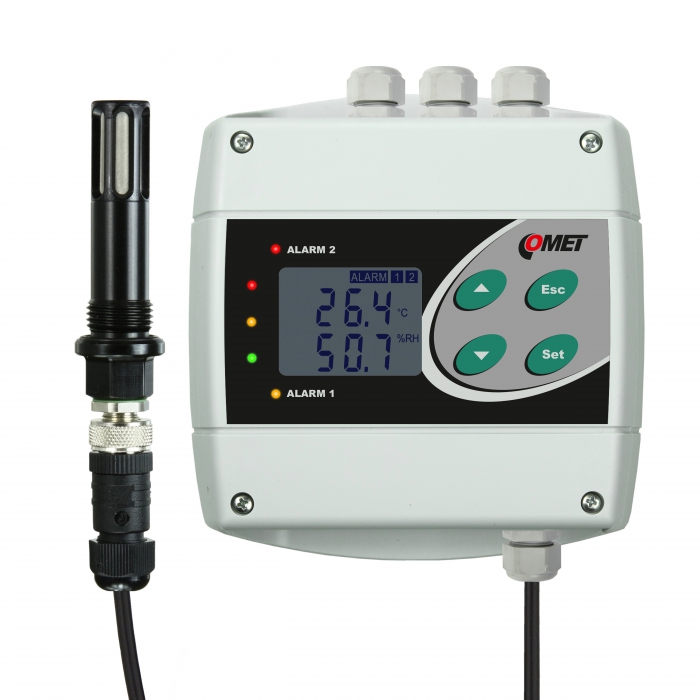

Compressed air temperature and humidity regulator

Humidistat, thermostat with two relay outputs. T+RH probe from hard anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

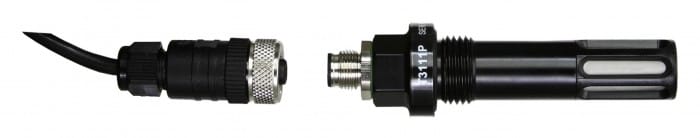

The device is supplied with T+RH probe with 1m cable.



  • code
    H3021P
  • Warranty
    3 years
  • $858

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR

Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm from built-in beeper - switchable
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors

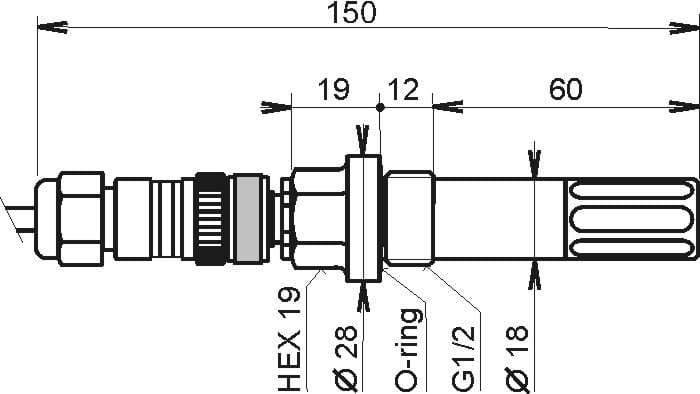

Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length 1 meter
Weight approx. 400 g
Warranty 3 years

Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Price $24
In stock 21 pcs
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Price On request
In stock on request
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us
Price $24
In stock on request

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price $64
In stock 5 pcs

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price $14
In stock 11 pcs
Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103
Price $40
In stock 7 pcs

plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price $24
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price On request
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price $142
In stock 23 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price $142
In stock 22 pcs
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price $90
In stock 13 pcs
Flow chamber for compressed air measurement up to 25 bars

Flow chamber for compressed air measurement up to 25 bars

code SH-PP
Price $160
In stock on request
Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006
Price $6
In stock 25 pcs

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.10 MB
download-icon Quick Start Manual
906.58 KB
download-icon Declaration of Conformity
61.03 KB

Catalogs

download-icon CATALOG - Digital sensors and regulators with serial RS485/RS232 output
7.49 MB
