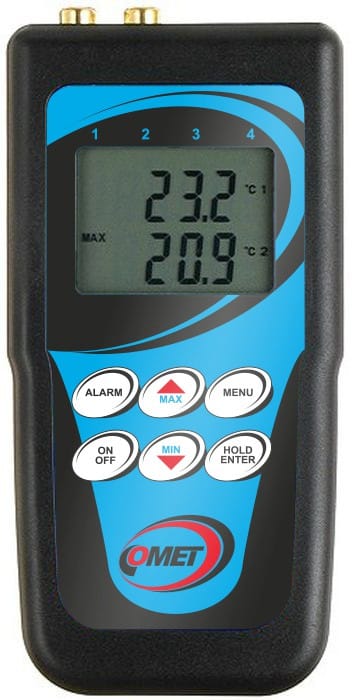

Dual channel thermometer Ni1000/Pt1000

Thermometer is designed for direct measurement and datalogging of temperature into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the personal computer for consequent evaluation. LCD backlight.

Instrument is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.





  • code
    D0221
  • Warranty
    3 years
  • $480

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +500 °C
Accuracy ±0.3 °C od -50 to +100 °C;
±0.3 % from reading from +100 to +500 °C;
±0.6 % from reading from -200 do -50 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C
Channels 2x external temperature probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 141 x 71 x 27 mm
Weight (including batteries) approx. 150 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/C, temperature probe

Pt1000TG8/C, temperature probe

Temperature range: -80 to 200°C
code SN104C
Price $68
In stock 40 pcs
Pt1000TG8/C, temperature probe, cable 2 m

Pt1000TG8/C, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105C
Price $72
In stock 61 pcs
Pt1000TG8/C, temperature probe, cable 5 m

Pt1000TG8/C, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108C
Price $86
In stock 50 pcs
Pt1000TG8/C, temperature probe, cable 10 m

Pt1000TG8/C, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113C
Price $114
In stock 37 pcs
Pt1000TG7/C, temperature probe

Pt1000TG7/C, temperature probe

Temperature range: -50 to 200°C
code SN164C
Price $94
In stock 4 pcs
Pt1000TG7/C, temperature probe, cable 2 m

Pt1000TG7/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165C
Price $100
In stock 4 pcs
Pt1000TG7/C, temperature probe, cable 5 m

Pt1000TG7/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166C
Price $110
In stock 1 pcs
Pt1000TG7/C, temperature probe, cable 10 m

Pt1000TG7/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167C
Price $132
In stock 57 pcs
2301-220/C, temperature probe, cable 1 m

2301-220/C, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168C
Price $178
In stock 9 pcs
2021-150/C, temperature probe, cable 1 m

2021-150/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169C
Price $280
In stock 3 pcs
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170C
Price $98
In stock 2 pcs
2034-220/C, temperature probe, cable 1 m

2034-220/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175C
Price $168
In stock 20 pcs
Ambient temperature probe, 200-80/C

Ambient temperature probe, 200-80/C

Temperature range: -30 to 80°C
code SN177
Price $42
In stock 8 pcs
2061-200/C, temperature probe, cable 1 m

2061-200/C, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178C
Price $204
In stock 7 pcs
2061-200/C, temperature probe, cable 2 m

2061-200/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179C
Price $210
In stock 5 pcs
2061-200/C, temperature probe, cable 5 m

2061-200/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180C
Price $226
In stock 5 pcs
2061-200/C, temperature probe, cable 10 m

2061-200/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181C
Price $254
In stock 3 pcs
PTS350A-5/C, temperature probe, cable 5 m

PTS350A-5/C, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182C
Price $110
In stock 16 pcs
PTS350A-10/C, temperature probe, cable 10 m

PTS350A-10/C, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183C
Price $130
In stock 9 pcs
Pt1000TGL40/C, temperature probe, cable 1 m

Pt1000TGL40/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185C
Price $60
In stock 8 pcs
Pt1000TGL40/C, temperature probe, cable 2 m

Pt1000TGL40/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186C
Price $64
In stock 13 pcs
Pt1000TGL40/C, temperature probe, cable 5 m

Pt1000TGL40/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187C
Price $72
In stock 28 pcs
Pt1000TGL40/C, temperature probe, cable 10 m

Pt1000TGL40/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188C
Price $86
In stock 17 pcs
Pt1000TR160/C, temperature probe, cable 1 m

Pt1000TR160/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199C
Price $52
In stock 10 pcs
Pt1000TR160/C, temperature probe, cable 2 m

Pt1000TR160/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200C
Price $54
In stock 38 pcs
Pt1000TR160/C, temperature probe, cable 5 m

Pt1000TR160/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201C
Price $60
In stock 90 pcs
Pt1000TR160/C, temperature probe, cable 10 m

Pt1000TR160/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202C
Price $72
In stock 130 pcs
Pt1000TR160/C, temperature probe, cable 15 m

Pt1000TR160/C, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203C
Price $92
In stock on request
Pt1000TR160/C, temperature probe, cable 20 m

Pt1000TR160/C, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204C
Price $102
In stock 76 pcs
2091-250/C, Stick-in probe, cable 1 m

2091-250/C, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210C
Price $220
In stock 1 pcs
2091-250/C, Stick-in probe, cable 2 m

2091-250/C, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211C
Price $236
In stock on request
2091-250/C, Stick-in probe, cable 5 m

2091-250/C, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212C
Price $284
In stock 6 pcs
2091-250/C, Stick-in probe, cable 10 m

2091-250/C, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213C
Price $366
In stock 2 pcs
Pt1000TR125/C, temperature probe, cable 1 m

Pt1000TR125/C, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239C
Price $198
In stock 8 pcs
Pt1000TR125/C, temperature probe, cable 2 m

Pt1000TR125/C, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240C
Price $216
In stock 14 pcs
Pt1000TR125/C, temperature probe, cable 5 m

Pt1000TR125/C, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241C
Price $276
In stock 32 pcs
Pt1000TR125/C, temperature probe, cable 10 m

Pt1000TR125/C, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242C
Price $374
In stock 18 pcs
Pt1000TR050S/C, temperature probe, cable 1 m

Pt1000TR050S/C, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Price $80
In stock 25 pcs
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Price $118
In stock 1 pcs
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Price $120
In stock 2 pcs
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Price $136
In stock on request
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Price $162
In stock 1 pcs
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Price $206
In stock on request
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Price On request
In stock 6 pcs
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Price On request
In stock on request
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C
Price On request
In stock 7 pcs

ac/dc adapter 120Vac to 12Vdc/1A, EU

ac/dc adapter 120Vac to 12Vdc/1A, EU

code A1515eu
Price $24
In stock 133 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK

ac/dc adapter 120Vac to 12Vdc/1A, UK

code A1515uk
Price $24
In stock 4 pcs
ac/dc adapter 120Vac to 12Vdc/1A, US

ac/dc adapter 120Vac to 12Vdc/1A, US

code A1515us
Price $24
In stock 10 pcs
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400
Price $28
In stock on request

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price $78
In stock on request

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Price $70
In stock 8 pcs
Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Price On request
In stock on request
Communication cable for COMMETER Dxxxx

Communication cable for COMMETER Dxxxx

code QLOG015
Price $18
In stock 10 pcs

Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Price On request
In stock on request

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
643.33 KB
download-icon Quick Start Manual
448.96 KB
download-icon Declaration of Conformity
61.24 KB

Catalogs

download-icon CATALOG - Portable measuring instruments COMMETER
1.28 MB
download-icon Catalogue Sheets - COMETTER
1.95 MB

Related products

COMET Database

COMET Database

code CDB
Price $900
In stock yes
Temperature data logger for two external Pt1000 probes

Temperature data logger for two external Pt1000 probes

code U0121
Price $372
In stock 16 pcs
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Price $1 924
In stock on request
Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

code M1200E
Price $882
In stock 6 pcs
