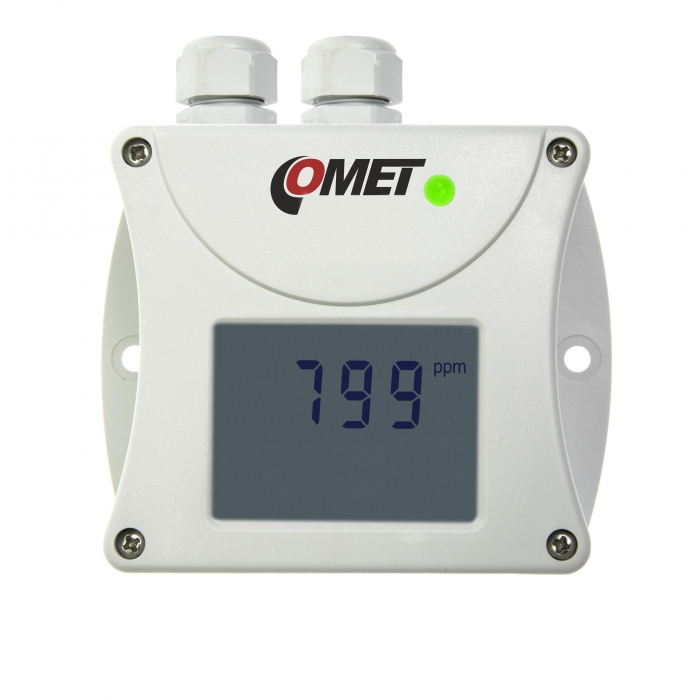

CO2 concentration transmitter with RS485 interface
CO2 - carbon dioxide level sensor.
Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
-
codeT5440
-
Warranty3 years
- $648
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 2000 ppm
Accuracy
±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution
1 ppm
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal CO2 sensor
Output
RS485
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP30
Dimensions
88,5 x 94 x 39,5 mm
Weight
approx. 145 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$24
In stock
39 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
On request
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$24
In stock
on request
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
$30
In stock
on request
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
$6
In stock
25 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
$30
In stock
on request
Software
Comet Database One Click Installer (21.1-IV)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-2-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T5440
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - CO2
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
