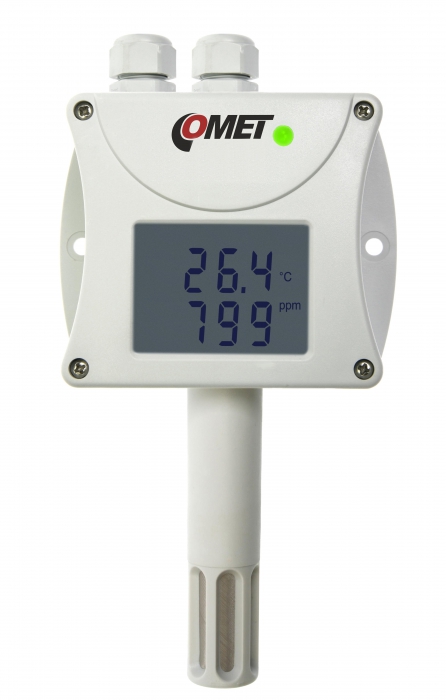

Temperature, humidity, CO2 transmitter with RS485 interface

Temperature, humidity, CO2 level sensor. Outdoor, indoor use.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



Possibility to extend the measuring range for an additional charge:

  • Measuring range:  0 to 10 000 ppm
  • Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

  • code
    T6440
  • Warranty
    3 years
  • $866

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2

TEMPERATURE SENSOR

Measuring range -10 to +50 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH
Accuracy ± 2,5 % RH
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.6°C at ambient temperature T<25°C and RH>30%
Resolution 0.1 °C

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal temperature, humidity and CO2 sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Range of humidity sensor temperature compensation all temperature range
Output RS485
Communication protocol ModBus RTU, ARION, Advantech ADAM
Power 9-30 Vdc
Protection class IP30 electronics, IP40 sensors
Dimensions 88,5 x 170 x 39,5 mm; stem length 75 mm
Weight approx. 150 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
