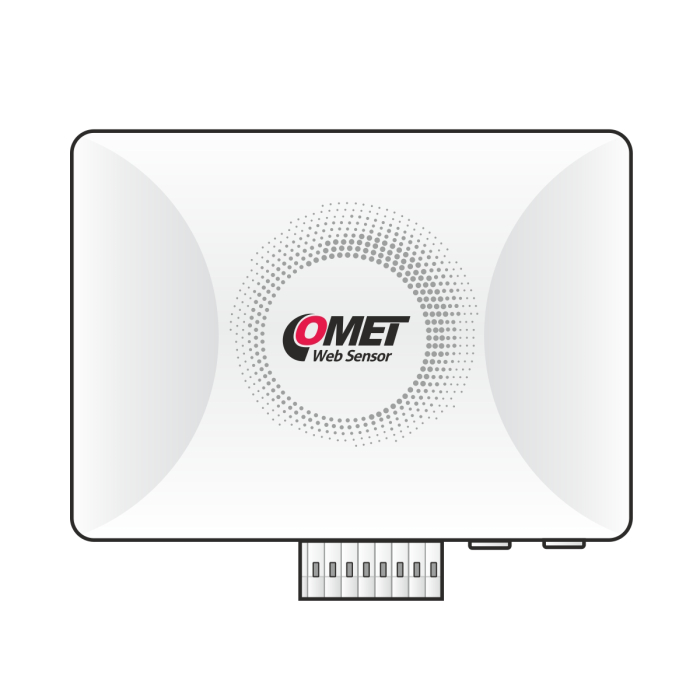

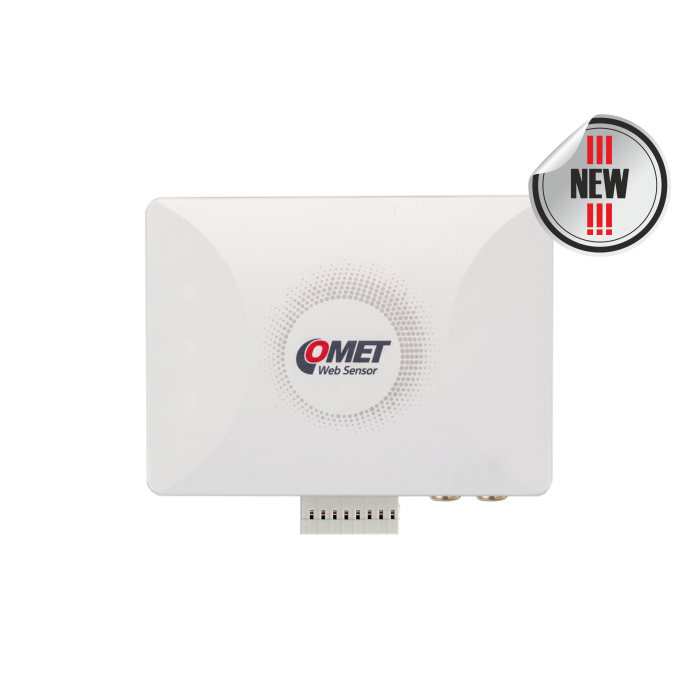

Low-Cost Sensor for Two Digital Probes and Three Binary Inputs, Ethernet Output and PoE

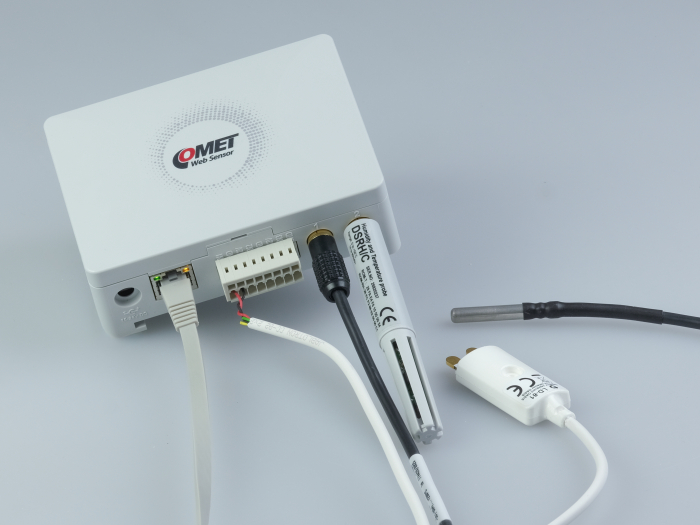

The PA8652 is the most versatile model in the PAx6xx series. It allows for the connection of up to four digital temperature probes or combined temperature and humidity probes and also offers three binary inputs for status detection or connection of external detectors.

A unique feature of the device is the ability to power connected detectors with 12 V directly from the terminals even when powered via PoE, which eliminates the need for additional power supplies and significantly simplifies installation.

The device inputs can be configured for voltage signals, dry contacts, or for connecting a two-wire flood sensor.

The PA8652 is ideal for comprehensive environmental monitoring where, in addition to temperature or humidity, it is necessary to monitor flooding, door opening, or other binary states.

Main Benefits:

Support for external digital temperature and humidity probes + monitoring of 3 binary states
Allows probe connection up to 40 meters in length
Ability to power external detectors from the device
Power supply 15–24 V or PoE (IEEE 802.3af)
Integrated backup memory
Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)

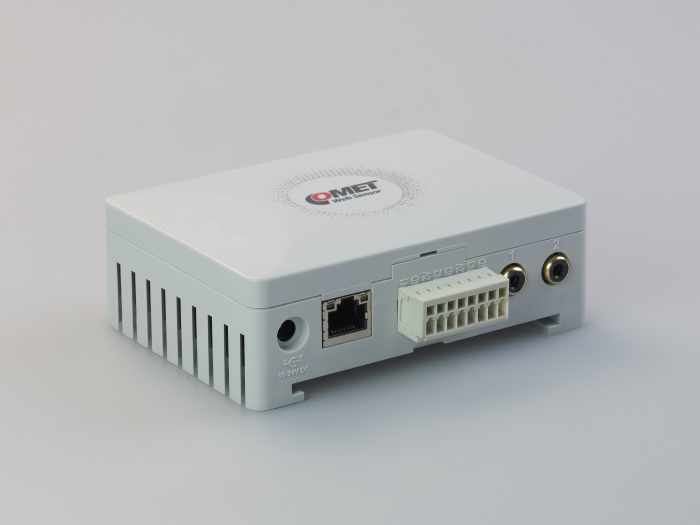

Integrated detachable bracket for easy installation

code

PA8652
Warranty

3 years

On request

Buy

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Two-state signal

TEMPERATURE SENSOR

Measuring range Depending on the connected DSxx probe

Accuracy Depending on the connected DSxx probe

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe

Accuracy Depending on the connected DSxx probe

Resolution 0.1% RV

BINÁRNÍ VSTUP

Voltage input contact parameters Input voltage for level “L”: < 1.0 V
Input voltage for level “H”: > 2.5 V
Internal source resistance: < 2 kΩ
Input voltage range: 0 to +30 V

Dry contact parameters Open-circuit voltage at terminals: 3.3 V
Current through closed contact: 0.1 mA
Maximum contact resistance: < 5 kΩ

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C

Measurement channels 1× external temperature probe or 1× combined T+RH probe (cable-mounted), CINCH connector

Maximum probe cable length per channel 40 meters

Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)

Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC

Network interface Ethernet

IP support IPv4, IPv6

Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3

Alarm protocols Email (SMTP), Syslog

Measurement interval 2 s

Ingress protection (IP rating) IP30

Dimensions 116 × 85 × 42 mm (without connected probe)

Weight 180 g

Warranty 3 years

Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C

Price $90

In stock 10 pcs

DSTGL40/C, digital temperature probe

Temperature range: -30 to 80°C

code SN189C

Price $97

In stock 6 pcs

DSTGL40/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C

code SN190C

Price $99

In stock 35 pcs

DSTGL40/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C

code SN191C

Price $106

In stock 48 pcs

DSTGL40/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C

code SN192C

Price $117

In stock 79 pcs

DSTR162/C, digital temperature probe

Temperature range: -30 to 80°C

code SN215C

Price $88

In stock 40 pcs

DSTR162/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C

code SN216C

Price $90

In stock 14 pcs

DSTR162/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C

code SN217C

Price $97

In stock 43 pcs

DSTR162/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C

code SN218C

Price $106

In stock 13 pcs

DSTG8/C, digital temperature probe

Temperature range: -50 to 125°C

code SN228C

Price $101

In stock 31 pcs

DSTG8/C, digital temperature probe, cable 2 m

Temperature range: -50 to 125°C

code SN229C

Price $106

In stock 29 pcs

DSTG8/C, digital temperature probe, cable 5 m

Temperature range: -50 to 125°C

code SN230C

Price $121

In stock 51 pcs

DSTG8/C, digital temperature probe, cable 10 m

Temperature range: -50 to 125°C

code SN231C

Price $176

In stock 23 pcs

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C

code DSRH/C

Price $172

In stock 7 pcs

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C

code DSRH01+

Price $233

In stock 5 pcs

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Temperature range: 0 to 50°C

code DSRH02+

Price $244

In stock 9 pcs

Humidity-temperature probe for p-line Web Sensor with cable length 5m
