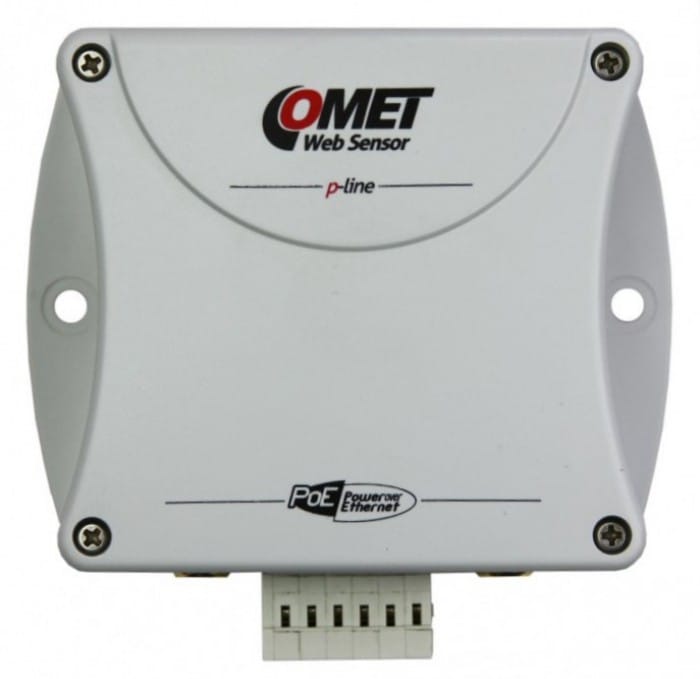

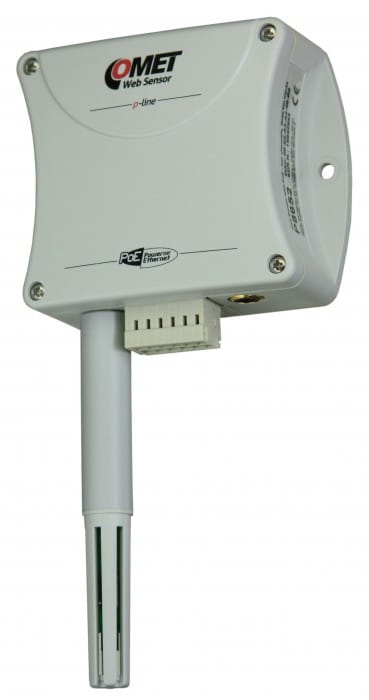

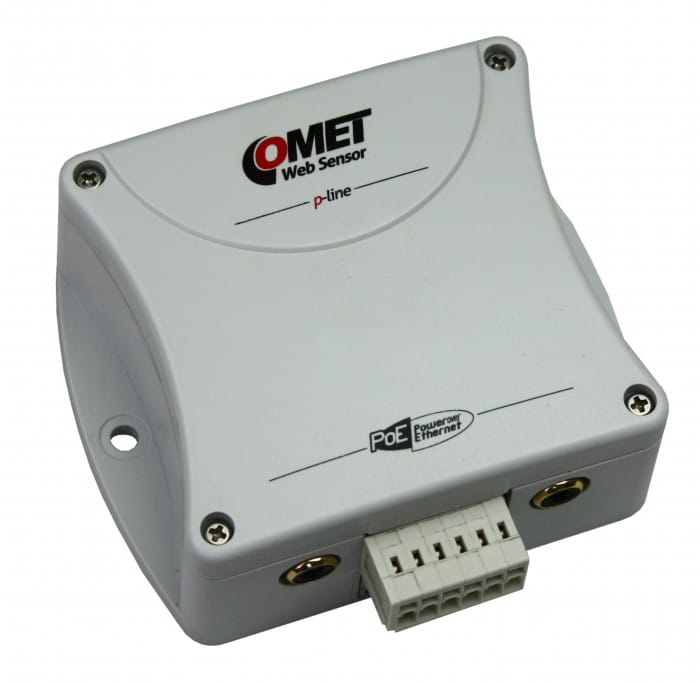

Web Sensor with PoE - two channels with binary inputs

P-line Web Sensor with PoE (Power over Ethernet feature) for measuring temperature, relative humidity and three binary inputs for two-states signals. Remote alarm.

The device is equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals. The dry contact or two-state voltage signal can be connect to the binary input.

Processing and analysis of measured data:





  • code
    P8652
  • Warranty
    3 years
  • $342

Technical data

Measured value

Temperature
Relative humidity
Two-state signal

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

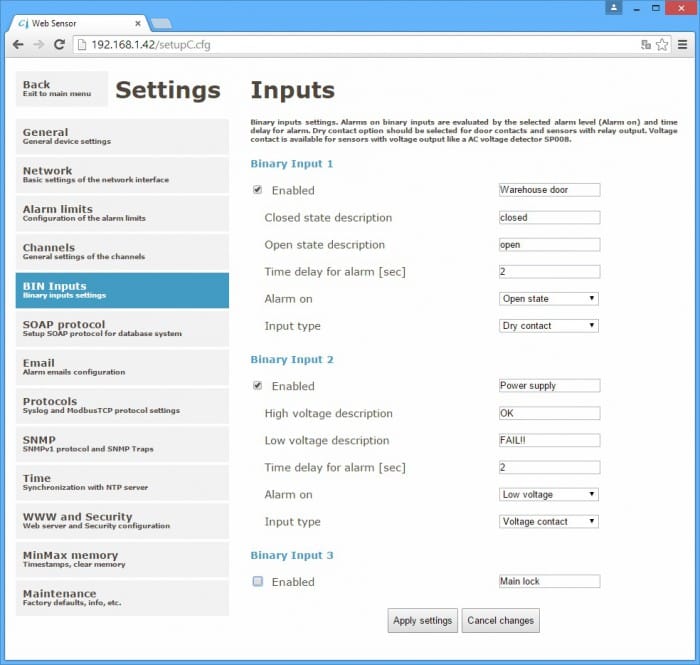

BINARY INPUT

Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Parameters of the voltage-free contact Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

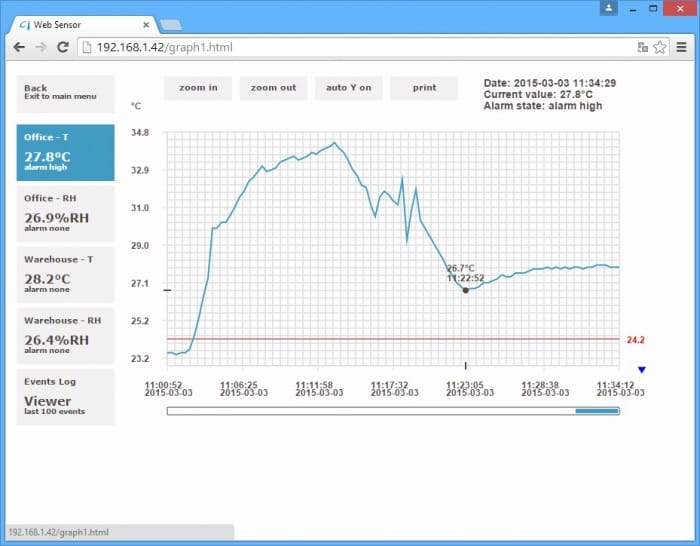

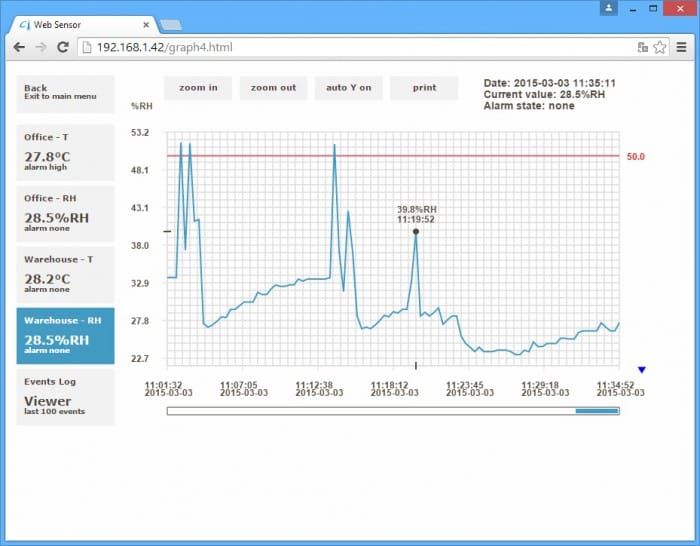

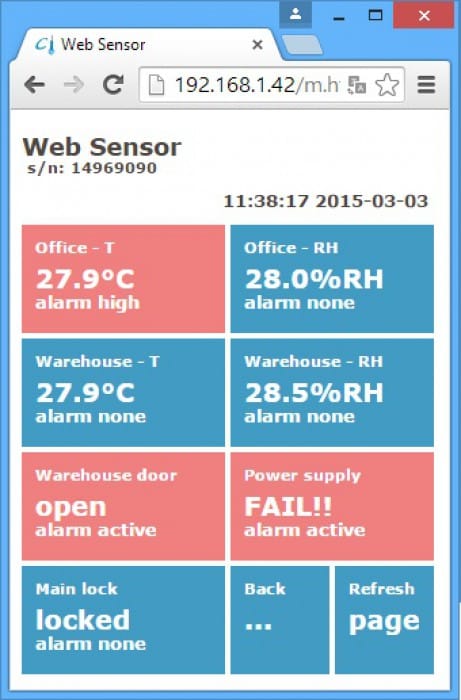

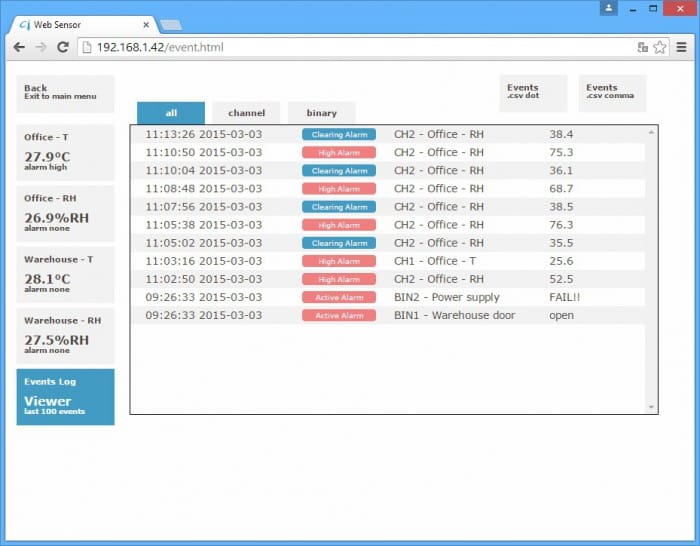

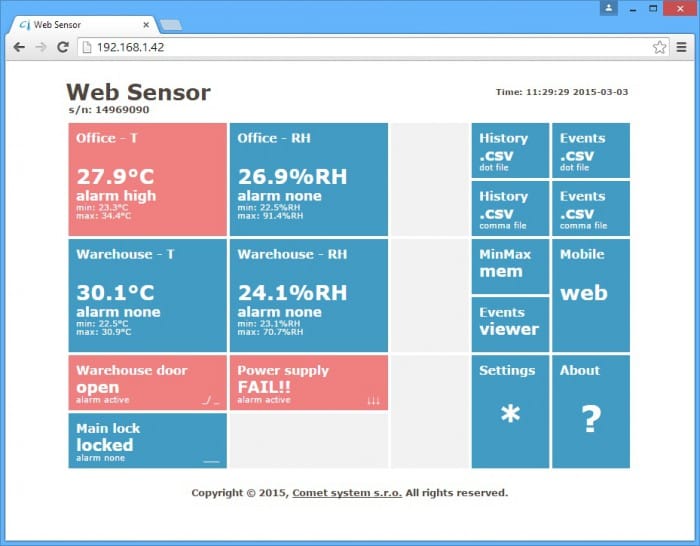

● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE

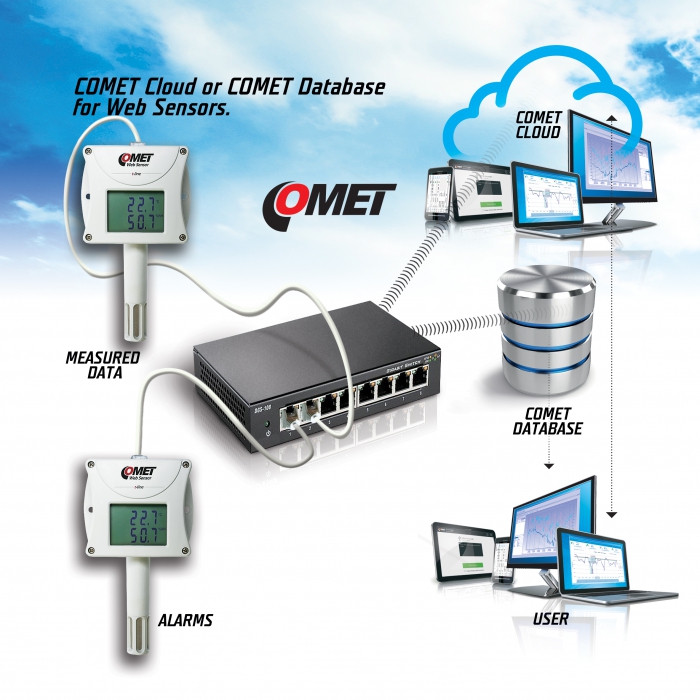

● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Proudové vstupy Teplotní čidlo Ethernetové rozhraní Power over Ethernet - PoE WWW server

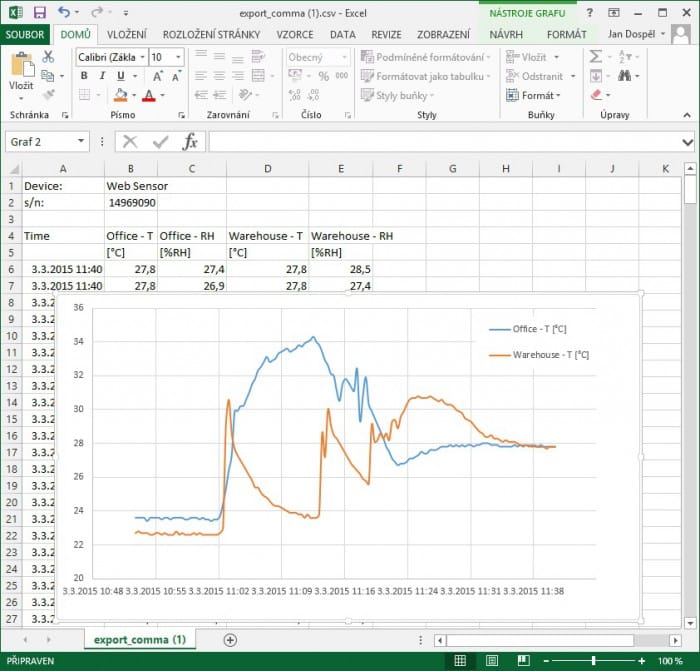

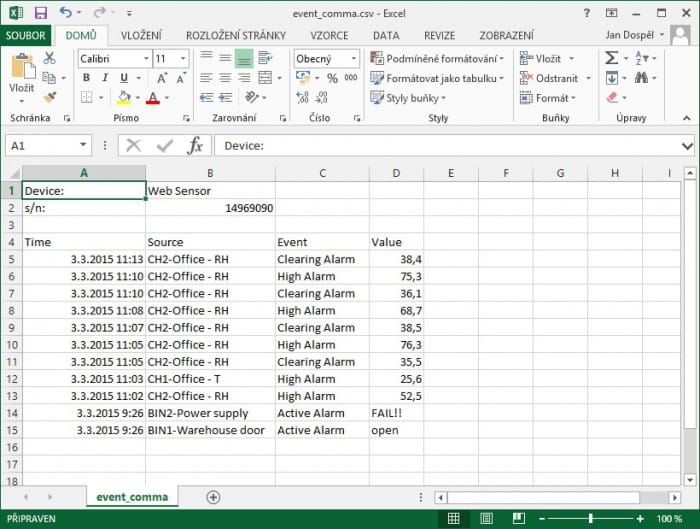

WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Export historických dat do CSV Aktuální hodnoty pomocí XML SNMP protokol SNMP Trap SOAP Protokol

Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot
