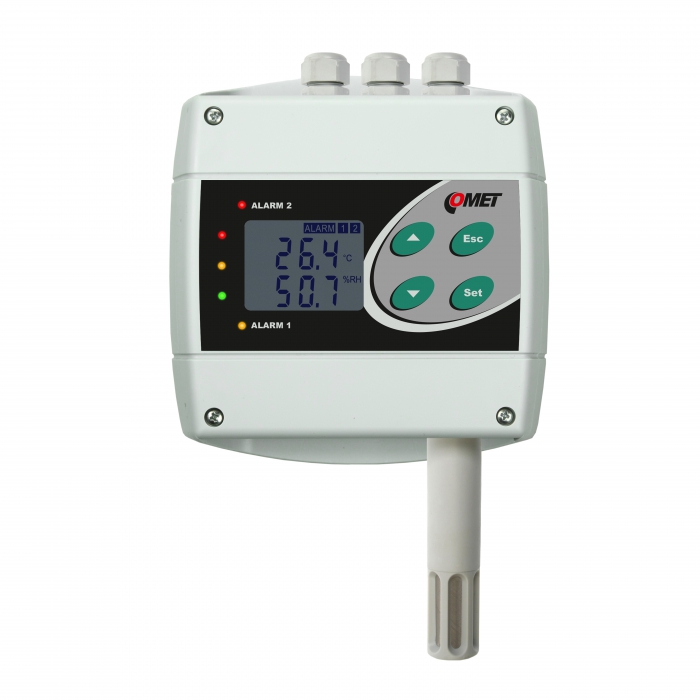

Temperature and humidity regulator
Humidistat, thermostat with two relay outputs. Outdoor, indoor use.
Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
-
codeH3020
-
Warranty3 years
- $649
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm
from built-in beeper - switchable
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
136 x 213 x 45 mm; stem length 75mm
Weight
approx. 350 g
Warranty
3 years
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$26
Large quantities in stock
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
$26
Limited stock
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$26
Usually available within one week
Accredited temperature and relative humidity calibration
code
SLU003
Price
On request
Usually available within one week
cable for transmitter adjustment via USB port
code
SP003
Price
$70
In stock
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP103
Price
$44
In stock
sintered bronze sensor cover
code
F0000
Price
$42
Usually available within one week
PTFE sensor protection, white
code
F5300
Price
$84
Usually available within one week
Humidity Standard 10%RH, set 5pcs
code
HM023
Price
$156
In stock
Humidity Standard 80%RH, set 5pcs
code
HM024
Price
$156
Limited stock
Vessel for adjustment and calibration of humidity
code
MD046
Price
$99
In stock
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
$7
In stock
Software
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Regulators
