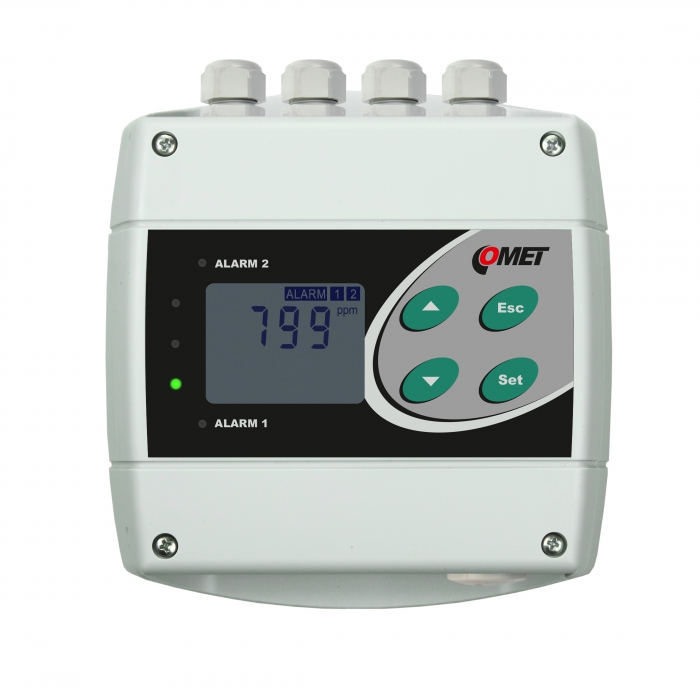

CO2 concentration transmitter with RS232 and two relay outputs

CO2 level transmitter with two output relays.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



Possibility to extend the measuring range for an additional charge:

  • Measuring range:  0 to 10 000 ppm
  • Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

  • code
    H5324
  • Warranty
    3 years
  • $702

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Acoustic alarm from built-in beeper - switchable
Output RS232
Communication protocol ModBus RTU and Advantech ADAM compatible protocol
Power 9-30 Vdc
Protection class IP30
Dimensions 136 x 150 x 45 mm
Weight approx. 360 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models

Záruka 3 roky Kalibrační list Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Výstup RS232 Výstup RS485

Komunikační protokol MODBUS Komunikační protokol Komunikační protokol
