Sensor for Two Pt1000 Temperature Probes, Ethernet Output and PoE

Sensor for Two Pt1000 Temperature Probes, Ethernet Output and PoE

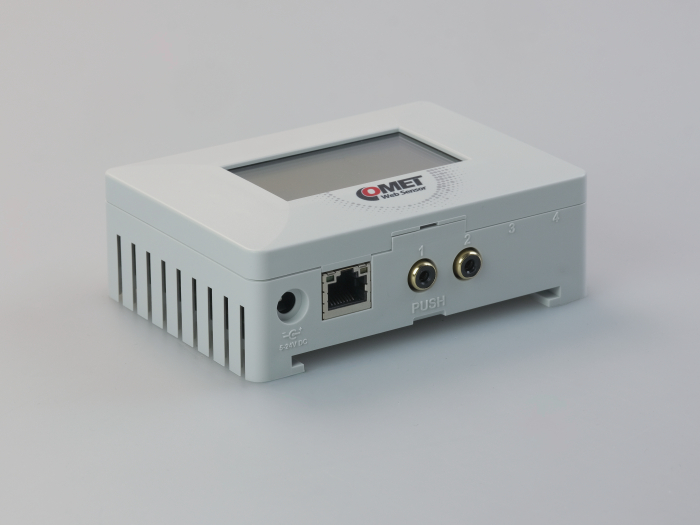

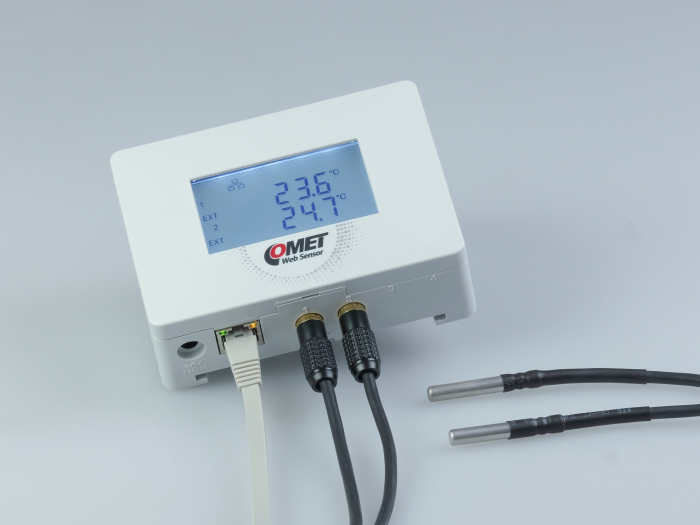

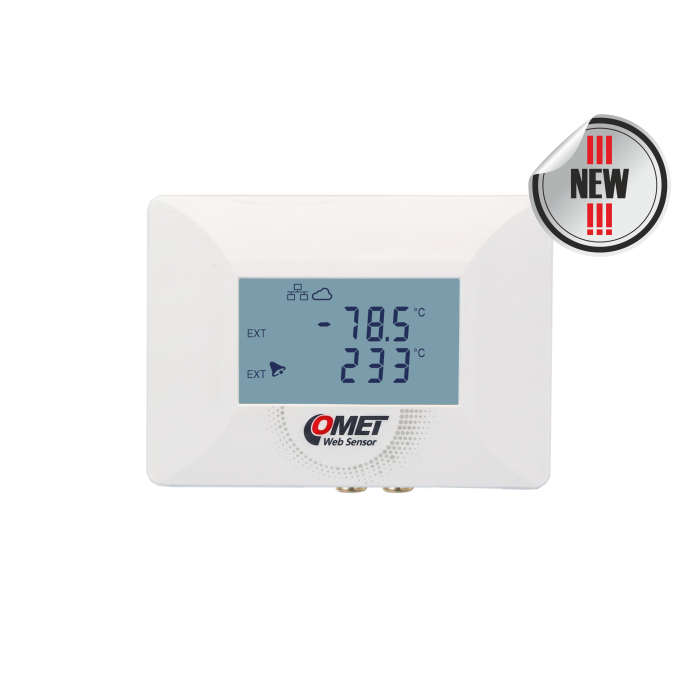

The TA4621 model is a compact Ethernet sensor designed for precise temperature measurement using two external Pt1000 probes.

This type offers two independent inputs with an optimized measuring range of -200 °C to +260 °C and an accuracy of ±0.2 °C. Probe connections are realized via practical CINCH connectors, allowing one device to monitor temperature differences or two separate locations simultaneously.

The device features a backlit LCD display, complete alarm signaling (LED and acoustic), and PoE support. Significant features include inter-channel calculations and software compensation for probe cable error.

This makes the TA4621 ideal for demanding industrial processes, monitoring two freezers at once, or installation into superior systems.

Main Benefits:

  • 2× Pt1000 input for simultaneous precise temperature measurement
  • Ability to monitor temperature differences
  • Extreme temperature measuring range from -200 °C
  • Backlit LCD display, acoustic and LED alarm signaling
  • Power supply 5–24 V or PoE
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    TA4621
  • Warranty
    3 years
  • On request
Buy
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR – external Pt1000 probe

Measuring range -200 to +260 °C
Accuracy ±0.2 °C (−200 to +100 °C),
±0.2% of reading (+100 to +260 °C)
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels 2× external Pt1000 temperature probe; CINCH connector
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 2 s
Ingress protection (IP rating) IP30 (electronics)
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 240 g
Warranty 3 years
