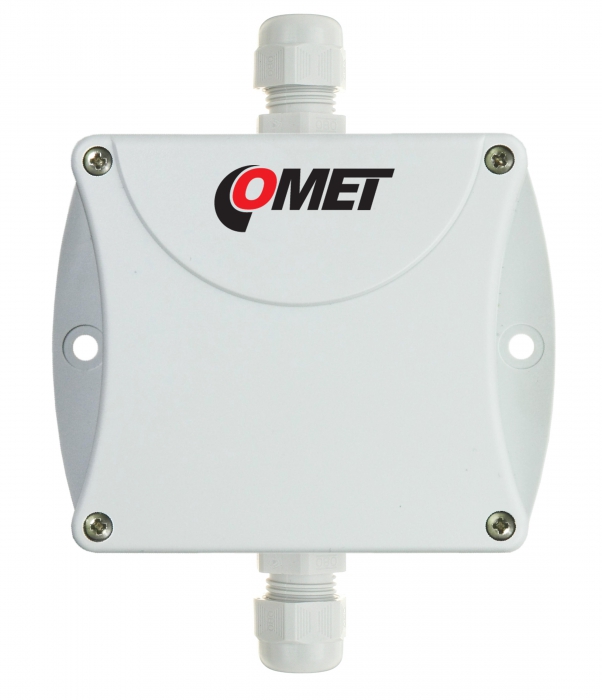

Temperature Transmitter Pt1000 -30°C to +80°C/ 4 to 20 mA

Temperature transmitter for Pt1000 sensors. Outdoor, indoor use.

For external Pt1000 temperature probe.



  • code
    P4121
  • Warranty
    3 years
  • $84

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe
Output 4-20 mA
Power 9-30 Vdc, typically 24 V
Protection class IP65
Dimensions 88,5 x 148 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX


Optional accessories and download

Pt1000TG8/0, temperature probe

Pt1000TG8/0, temperature probe

Temperature range: -80 to 200°C
code SN104
Price $48
In stock 48 pcs
Pt1000TG8/0, temperature probe, cable 2 m

Pt1000TG8/0, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105
Price $53
In stock 77 pcs
Pt1000TG8/0, temperature probe, cable 5 m

Pt1000TG8/0, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108
Price $63
In stock 195 pcs
Pt1000TG8/0, temperature probe, cable 10 m

Pt1000TG8/0, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113
Price $90
In stock 87 pcs
2061-250/0 Temperature probe

2061-250/0 Temperature probe

Temperature range: -30 to 250°C
code SN147
Price On request
In stock on request
2061-250/0 2 m Temperature probe

2061-250/0 2 m Temperature probe

Temperature range: -30 to 250°C
code SN148
Price On request
In stock on request
2061-250/0 5 m Temperature probe

2061-250/0 5 m Temperature probe

Temperature range: -30 to 250°C
code SN151
Price On request
In stock 4 pcs
2061-250/0  10 m Temperature probe

2061-250/0 10 m Temperature probe

Temperature range: -30 to 250°C
code SN156
Price On request
In stock on request
Pt1000TG7/0, temperature probe

Pt1000TG7/0, temperature probe

Temperature range: -50 to 200°C
code SN164
Price $74
In stock on request
Pt1000TG7/0, temperature probe, cable 2 m

Pt1000TG7/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165
Price $74
In stock 3 pcs
Pt1000TG7/0, temperature probe, cable 5 m

Pt1000TG7/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166
Price $84
In stock 33 pcs
Pt1000TG7/0, temperature probe, cable 10 m

Pt1000TG7/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167
Price $104
In stock 13 pcs
2301-220/0, temperature probe, cable 1 m

2301-220/0, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168
Price $145
In stock 12 pcs
2021-150/0, temperature probe, cable 1 m

2021-150/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169
Price $235
In stock 3 pcs
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170
Price $74
In stock 49 pcs
2034-220/0, temperature probe, cable 1 m

2034-220/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175
Price $136
In stock 21 pcs
2061-200/0, temperature probe, cable 1 m

2061-200/0, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178
Price $163
In stock 6 pcs
2061-200/0, temperature probe, cable 2 m

2061-200/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179
Price $168
In stock 2 pcs
2061-200/0, temperature probe, cable 5 m

2061-200/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180
Price $184
In stock 12 pcs
2061-200/0, temperature probe, cable 10 m

2061-200/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181
Price $210
In stock 3 pcs
PTS350A-5/0, temperature probe, cable 5 m

PTS350A-5/0, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182
Price $84
In stock 26 pcs
PTS350A-10/0, temperature probe, cable 10 m

PTS350A-10/0, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183
Price $105
In stock 9 pcs
Pt1000TGL40/0, temperature probe, cable 1 m

Pt1000TGL40/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185
Price $42
In stock 5 pcs
Pt1000TGL40/0, temperature probe, cable 2 m

Pt1000TGL40/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186
Price $48
In stock 13 pcs
Pt1000TGL40/0, temperature probe, cable 5 m

Pt1000TGL40/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187
Price $53
In stock 120 pcs
Pt1000TGL40/0, temperature probe, cable 10 m

Pt1000TGL40/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188
Price $63
In stock 17 pcs
Pt1000TR160/0, temperature probe, cable 1 m

Pt1000TR160/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199
Price $37
In stock 28 pcs
Pt1000TR160/0, temperature probe, cable 2 m

Pt1000TR160/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200
Price $37
In stock 31 pcs
Pt1000TR160/0, temperature probe, cable 5 m

Pt1000TR160/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201
Price $42
In stock 138 pcs
Pt1000TR160/0, temperature probe, cable 10 m

Pt1000TR160/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202
Price $53
In stock 68 pcs
Pt1000TR160/0, temperature probe, cable 15 m

Pt1000TR160/0, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203
Price $69
In stock 46 pcs
Pt1000TR160/0, temperature probe, cable 20 m

Pt1000TR160/0, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204
Price $79
In stock 41 pcs
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Price $114
In stock 1 pcs
2091-250/0, Stick-in probe, cable 1 m

2091-250/0, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210
Price $174
In stock on request
2091-250/0, Stick-in probe, cable 2 m

2091-250/0, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211
Price $184
In stock 3 pcs
2091-250/0, Stick-in probe, cable 5 m

2091-250/0, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212
Price $226
In stock 5 pcs
2091-250/0, Stick-in probe, cable 10 m

2091-250/0, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213
Price $294
In stock 4 pcs
2071-030/0, special probe with CINCH connector

2071-030/0, special probe with CINCH connector

Temperature range: -30 to 80°C
code SN214
Price $279
In stock 4 pcs
Pt1000TG68/0, temperature probe, cable 2 m

Pt1000TG68/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232
Price $79
In stock 18 pcs
Pt1000TG68/0, temperature probe, cable 5 m

Pt1000TG68/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233
Price $90
In stock 18 pcs
Pt1000TG68/0, temperature probe, cable 10 m

Pt1000TG68/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234
Price $111
In stock 14 pcs
Pt1000TR125/0, temperature probe, cable 1 m

Pt1000TR125/0, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239
Price $162
In stock 27 pcs
Pt1000TR125/0, temperature probe, cable 2 m

Pt1000TR125/0, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240
Price $180
In stock 24 pcs
Pt1000TR125/0, temperature probe, cable 5 m

Pt1000TR125/0, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241
Price $231
In stock 68 pcs
Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242
Price $318
In stock 4 pcs
Pt1000TR050S/0, temperature probe, cable 1 m

Pt1000TR050S/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m

Pt1000TR050S/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m

Pt1000TR050S/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Price $57
In stock 142 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Price $63
In stock 239 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Price $89
In stock 55 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Price $132
In stock 9 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Price On request
In stock 32 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Price $89
In stock 4 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Price $94
In stock 4 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265
Price $108
In stock 3 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Price $130
In stock on request
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Price $167
In stock on request
Pt1000TR050M/0, temperature probe, cable 1 m

Pt1000TR050M/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
code SN270
Price On request
In stock 10 pcs
Pt1000TR050M/0, temperature probe, cable 2 m

Pt1000TR050M/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271
Price On request
In stock 18 pcs
Pt1000TR050M/0, temperature probe, cable 5 m

Pt1000TR050M/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
code SN272
Price On request
In stock 7 pcs
Pt1000TR050M/0, temperature probe, cable 10 m

Pt1000TR050M/0, temperature probe, cable 10 m

Temperature range: -50 to 400°C
code SN273
Price On request
In stock on request

Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price $27
In stock on request
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price $27
In stock on request

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
331.58 KB
download-icon Quick Start Manual
769.00 KB
download-icon Declaration of Conformity
60.77 KB

Catalogs

download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
1.86 MB

Related products

Temperature transmitter with 4-20mA output

Temperature transmitter with 4-20mA output

code T4111
Price $174
In stock 14 pcs
Temperature sensor with 4-20mA output

Temperature sensor with 4-20mA output

code P0120
Price $105
In stock on request
