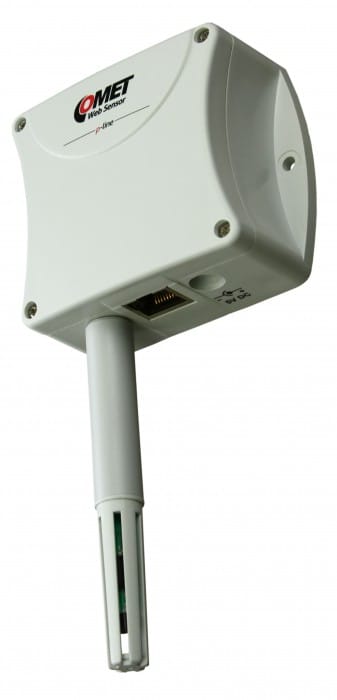

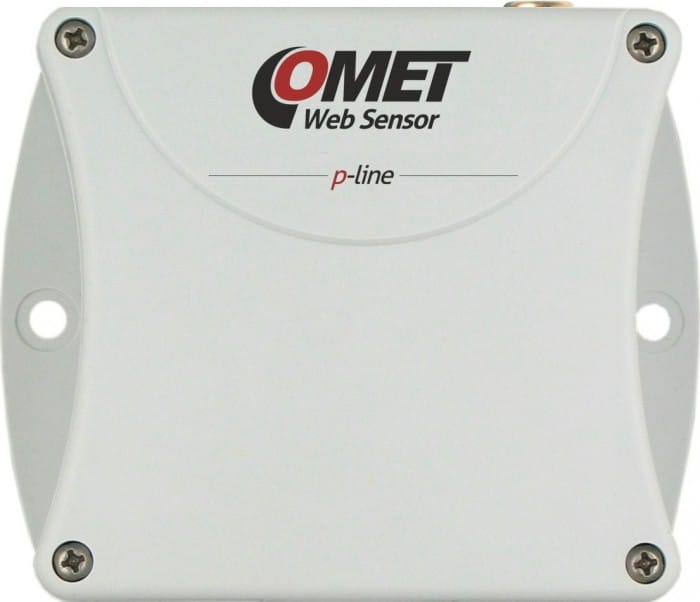

Web Sensor - one channel remote thermometer hygrometer

One channel p-line Web Sensor. Temperature or humidity + temperature probe is supported. Remote alarm.

Processing and analysis of measured data:

  • code
    P8511
  • Warranty
    3 years
  • $231

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

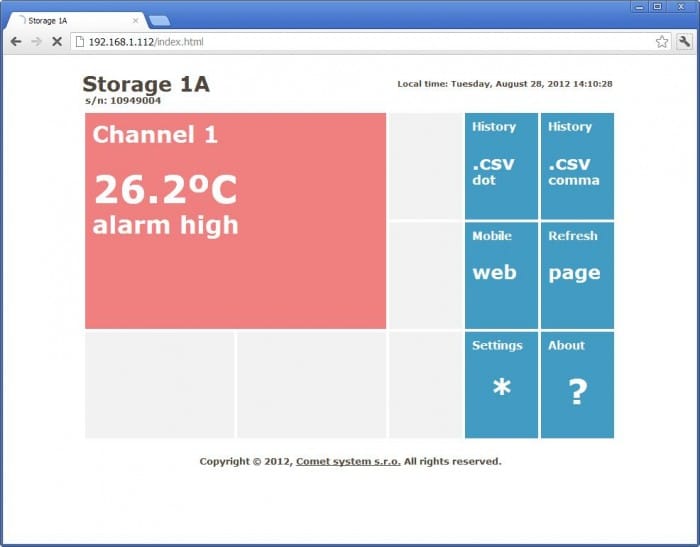

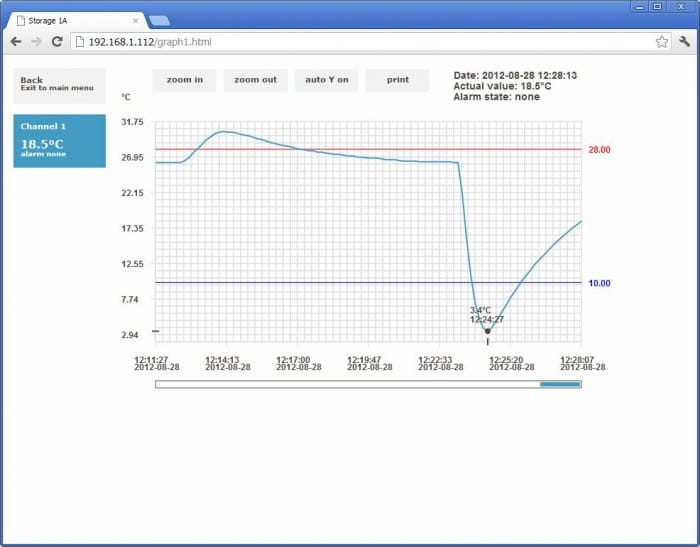

● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Proudové vstupy Teplotní čidlo Ethernetové rozhraní Power over Ethernet - PoE WWW server

WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Export historických dat do CSV Aktuální hodnoty pomocí XML SNMP protokol SNMP Trap SOAP Protokol

Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C
Price $69
In stock 1 pcs
DSTGL40/C, digital temperature probe

DSTGL40/C, digital temperature probe

Temperature range: -30 to 80°C
code SN189C
Price $74
In stock 7 pcs
DSTGL40/C, digital temperature probe, cable 2 m

DSTGL40/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN190C
Price $74
In stock 29 pcs
DSTGL40/C, digital temperature probe, cable 5 m

DSTGL40/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN191C
Price $79
In stock 98 pcs
DSTGL40/C, digital temperature probe, cable 10 m

DSTGL40/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN192C
Price $90
In stock 152 pcs
DSTR162/C, digital temperature probe

DSTR162/C, digital temperature probe

Temperature range: -30 to 80°C
code SN215C
Price $63
In stock 18 pcs
DSTR162/C, digital temperature probe, cable 2 m

DSTR162/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN216C
Price $69
In stock 10 pcs
DSTR162/C, digital temperature probe, cable 5 m

DSTR162/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN217C
Price $74
In stock 47 pcs
DSTR162/C, digital temperature probe, cable 10 m

DSTR162/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN218C
Price $79
In stock 19 pcs
DSTG8/C, digital temperature probe

DSTG8/C, digital temperature probe

Temperature range: -50 to 125°C
code SN228C
Price $74
In stock 26 pcs
DSTG8/C, digital temperature probe, cable 2 m

DSTG8/C, digital temperature probe, cable 2 m

Temperature range: -50 to 125°C
code SN229C
Price $79
In stock 1 pcs
DSTG8/C, digital temperature probe, cable 5 m

DSTG8/C, digital temperature probe, cable 5 m

Temperature range: -50 to 125°C
code SN230C
Price $90
In stock 42 pcs
DSTG8/C, digital temperature probe, cable 10 m

DSTG8/C, digital temperature probe, cable 10 m

Temperature range: -50 to 125°C
code SN231C
Price $137
In stock 34 pcs

Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
code DSRH/C
Price $132
In stock 29 pcs
Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
code DSRH01+
Price On request
In stock 5 pcs
Humidity-temperature probe for p-line Web Sensor with cable length 2m

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor with cable length 2m

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Temperature range: 0 to 50°C
code DSRH02+
Price On request
In stock on request
Humidity-temperature probe for p-line Web Sensor with cable length 5m

Humidity-temperature probe for p-line Web Sensor with cable length 5m

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor with cable length 5m

Humidity-temperature probe for p-line Web Sensor with cable length 5m

Temperature range: 0 to 50°C
code DSRH05+
Price On request
In stock on request

AC/DC adapter 120Vac to 5Vdc/2.1A, EU

AC/DC adapter 120Vac to 5Vdc/2.1A, EU

code A1825eu
Price $21
In stock on request
AC/DC adapter 120Vac to 5Vdc/2.1A, UK

AC/DC adapter 120Vac to 5Vdc/2.1A, UK

code A1825uk
Price On request
In stock on request
AC/DC adapter 120Vac to 5Vdc/2.1A, US

AC/DC adapter 120Vac to 5Vdc/2.1A, US

code A1825us
Price On request
In stock 84 pcs

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price $321
In stock on request
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price $54
In stock 19 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price $74
In stock on request

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Price $21
In stock 18 pcs
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Price $16
In stock 46 pcs
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price $11
In stock 18 pcs

COMET Database

COMET Database

code CDB
Price $394
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $132
In stock yes

Software

download-icon Comet Database One Click Installer (20.2-I)
327.96 MB
download-icon Database Viewer 3.18.0.0 dbapi 20.2
24.26 MB
download-icon TSensor (3-4-4-0)
2.70 MB
download-icon Sensor Reader (2-0-7-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
1.28 MB
download-icon Quick Start Manual
598.26 KB
download-icon Declaration of Conformity
60.77 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
572.90 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB
