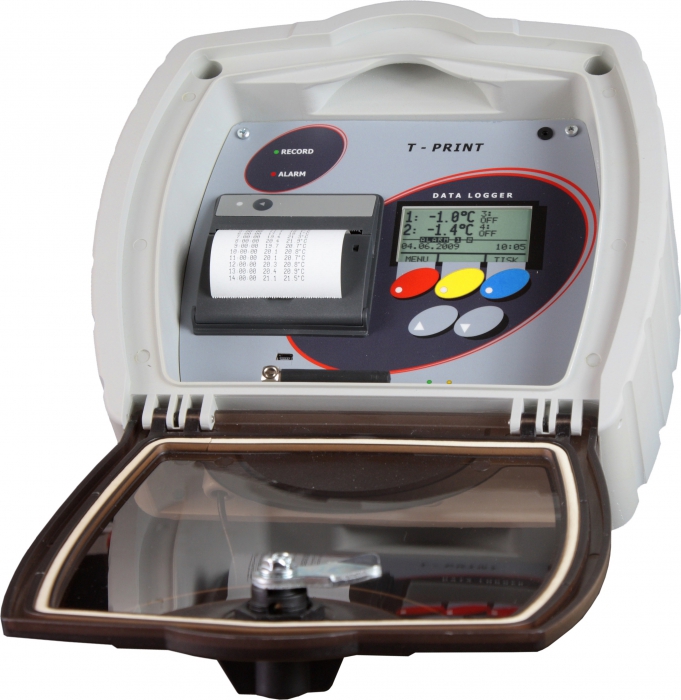

Temperature recorder with printer for semi-trailer

Complete solution for temperature record during the transport.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

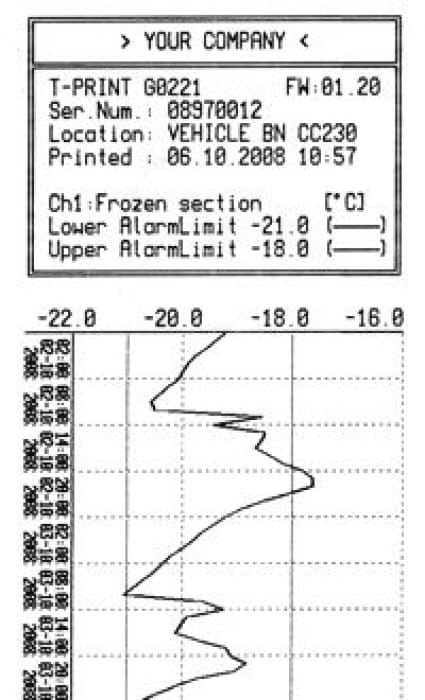

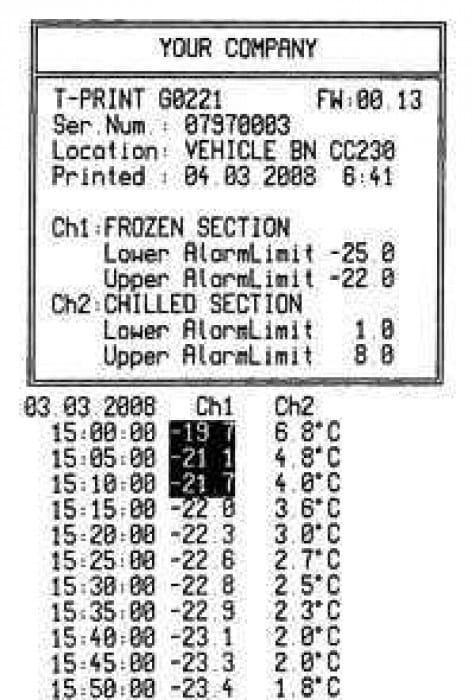

  • print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods

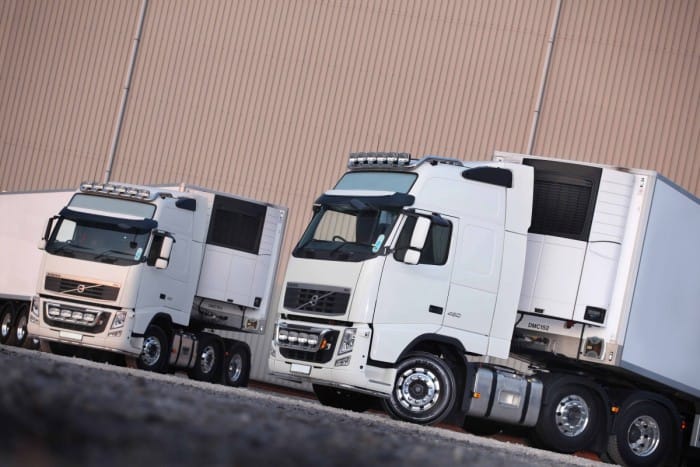

  • designed specifically for external installation on semi-trailers
  • easy installation



  • code
    G0841
  • Warranty
    3 years
  • $1 130

Technical data

Measured value

Temperature
Two-state signal

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C
Channels 2x external temperature probe, 2x binary input
Memory 1MB (approx. 170 000 hodnot)
Recording interval adjustable from 60 seconds to 60 minutes
Display and alarm refresh each 10 s
Recording mode cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing approx. 8 W/approx. 0,1 W
Protection class IP65
Dimensions 250 x 242 x 110 mm
Weight approx. 1650 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 ° C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Monitorování v průběhu přepravy

Goods transport - Complete temperature monitoring during transport of pharmaceuticals, foodstuffs, flowers, ...

Features description:

* the features may vary depending on the device type
● 2 hardware inputs for measuring of temperature and two-state events
● memory for half million values
● indication of alarm conditions via - SMS and integrated acoustic siren LEDs
● analytical software for data processing and configuration
● communication interfaces - USB, GPRS modem

3 Years Warranty Traceable Calibration Certificate Temperature Two-State Inputs Pulse Counting LCD Internal Memory


Optional accessories and download

Other accessories

Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Price $15
In stock 184 pcs
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Price $15
In stock on request
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
Price $25
In stock on request
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Price $30
In stock on request
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Price $50
In stock on request
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Price $70
In stock on request
Spare roll of thermopaper for Gxxxx temperature recorders

Spare roll of thermopaper for Gxxxx temperature recorders

code PR033
Price $5
In stock on request
AC/DC adapter 120Vac to 24Vdc/1A, switch-mode

AC/DC adapter 120Vac to 24Vdc/1A, switch-mode

code A1940
Price $25
In stock 32 pcs
Mounting set for G0841

Mounting set for G0841

code QTPR022
Price -
In stock on request

Temperature Probes

Pt1000TR160/0, temperature probe, cable 1 m

Pt1000TR160/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199
Price $35
In stock 21 pcs
Pt1000TR160/0, temperature probe, cable 2 m

Pt1000TR160/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200
Price $35
In stock 34 pcs
Pt1000TR160/0, temperature probe, cable 5 m

Pt1000TR160/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201
Price $40
In stock 63 pcs
Pt1000TR160/0, temperature probe, cable 10 m

Pt1000TR160/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202
Price $50
In stock 47 pcs
Pt1000TR160/0, temperature probe, cable 15 m

Pt1000TR160/0, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203
Price $55
In stock 26 pcs
Pt1000TR160/0, temperature probe, cable 20 m

Pt1000TR160/0, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204
Price $65
In stock 12 pcs

Monitoring software

Software for COMET TPrints and GSM modems

Software for COMET TPrints and GSM modems

code SWR001
Price -
In stock yes
Comet Database

Comet Database

code CDB
Price $370
In stock yes

Software

download-icon SWR001 (Logger 4.1.3.0 dbapi 19.0)
29.69 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual
480.52 KB
download-icon Declaration of Conformity
100.67 KB

Catalogs

download-icon CATALOG - Dataloggers
3.68 MB
download-icon CATALOG - Solution for temperature record during transport
2.50 MB
