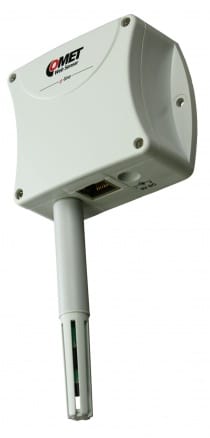

Web Sensor - one channel remote thermometer hygrometer

One channel p-line Web Sensor. Temperature or humidity + temperature probe is supported. Remote alarm.

Processing and analysis of measured data:

  • code
    P8511
  • Warranty
    3 years
  • $272

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML
● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Proudové vstupy Teplotní čidlo Ethernetové rozhraní Power over Ethernet - PoE WWW server

WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Export historických dat do CSV Aktuální hodnoty pomocí XML SNMP protokol SNMP Trap SOAP Protokol

Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C
Price $82
In stock 4 pcs
DSTGL40/C, digital temperature probe

DSTGL40/C, digital temperature probe

Temperature range: -30 to 80°C
code SN189C
Price $88
In stock 4 pcs
DSTGL40/C, digital temperature probe, cable 2 m

DSTGL40/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN190C
Price On request
In stock 22 pcs
DSTGL40/C, digital temperature probe, cable 5 m

DSTGL40/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN191C
Price $96
In stock 47 pcs
DSTGL40/C, digital temperature probe, cable 10 m

DSTGL40/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN192C
Price $106
In stock 55 pcs
DSTR162/C, digital temperature probe

DSTR162/C, digital temperature probe

Temperature range: -30 to 80°C
code SN215C
Price On request
In stock 13 pcs
DSTR162/C, digital temperature probe, cable 2 m

DSTR162/C, digital temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN216C
Price $82
In stock 15 pcs
DSTR162/C, digital temperature probe, cable 5 m

DSTR162/C, digital temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN217C
Price $88
In stock 1 pcs
DSTR162/C, digital temperature probe, cable 10 m

DSTR162/C, digital temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN218C
Price On request
In stock 24 pcs
DSTG8/C, digital temperature probe

DSTG8/C, digital temperature probe

Temperature range: -50 to 125°C
code SN228C
Price $92
In stock 17 pcs
DSTG8/C, digital temperature probe, cable 2 m

DSTG8/C, digital temperature probe, cable 2 m

Temperature range: -50 to 125°C
code SN229C
Price $96
In stock 24 pcs
DSTG8/C, digital temperature probe, cable 5 m

DSTG8/C, digital temperature probe, cable 5 m

Temperature range: -50 to 125°C
code SN230C
Price $110
In stock 56 pcs
DSTG8/C, digital temperature probe, cable 10 m

DSTG8/C, digital temperature probe, cable 10 m

Temperature range: -50 to 125°C
code SN231C
Price $160
In stock 16 pcs

Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
code DSRH/C
Price $156
In stock 63 pcs
Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor

Temperature range: 0 to 50°C
code DSRH01+
Price On request
In stock 7 pcs
Humidity-temperature probe for p-line Web Sensor with cable length 2m

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor with cable length 2m

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Temperature range: 0 to 50°C
code DSRH02+
Price $222
In stock 1 pcs
Humidity-temperature probe for p-line Web Sensor with cable length 5m

Humidity-temperature probe for p-line Web Sensor with cable length 5m

Temperature range: 0 to 50°C
Discontinued
Humidity-temperature probe for p-line Web Sensor with cable length 5m

Humidity-temperature probe for p-line Web Sensor with cable length 5m

Temperature range: 0 to 50°C
code DSRH05+
Price $250
In stock 13 pcs

AC/DC adapter 120Vac to 5Vdc/2.1A, EU

AC/DC adapter 120Vac to 5Vdc/2.1A, EU

code A1825eu
Price $24
In stock 63 pcs
AC/DC adapter 120Vac to 5Vdc/2.1A, UK

AC/DC adapter 120Vac to 5Vdc/2.1A, UK

code A1825uk
Price $24
In stock 18 pcs
AC/DC adapter 120Vac to 5Vdc/2.1A, US

AC/DC adapter 120Vac to 5Vdc/2.1A, US

code A1825us
Price $24
In stock 14 pcs

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price $360
In stock on request
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price $62
In stock 18 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price On request
In stock 6 pcs

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Price $24
In stock 66 pcs
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Price On request
In stock 39 pcs
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price $14
In stock 14 pcs

COMET Database

COMET Database

code CDB
Price $900
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $148
In stock yes
