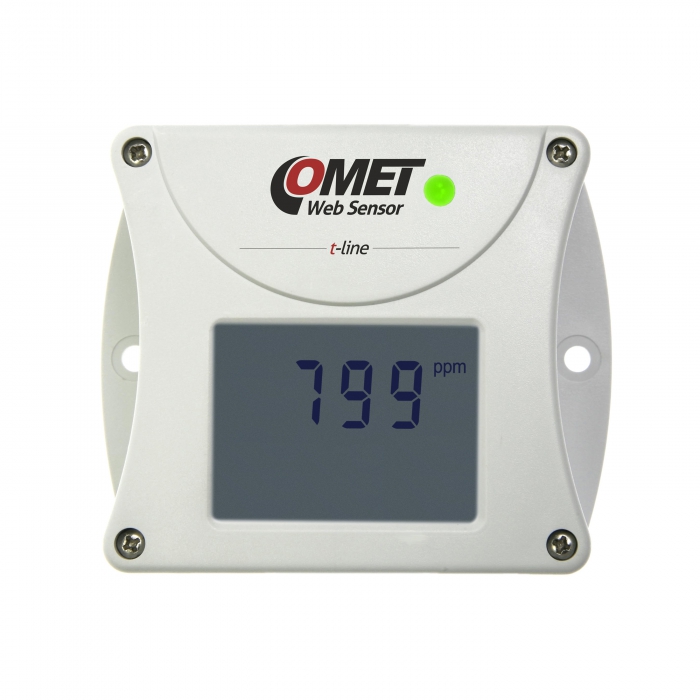

WebSensor - remote CO2 concentration with Ethernet interface

CO2 - carbon dioxide t-line Web sensor. Remote alarm.

Web Sensor with built-in concentration CO2 sensor.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:





Possibility to extend the measuring range for an additional charge:

  • Measuring range:  0 to 10 000 ppm
  • Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

  • code
    T5540
  • Warranty
    3 years
  • $674

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Output Ethernet
Measuring interval 15 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 72,5 x 39,5 mm
Weight approx. 140 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML
● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE

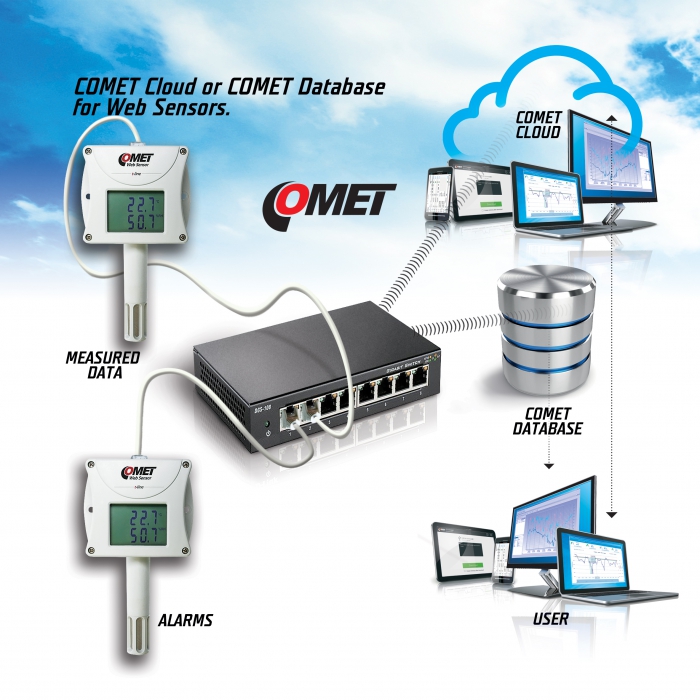

● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Ethernetové rozhraní

Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol

SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

ac/dc adapter 120Vac to 12Vdc/1A, EU

ac/dc adapter 120Vac to 12Vdc/1A, EU

code A1515eu
Price $24
In stock 133 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK

ac/dc adapter 120Vac to 12Vdc/1A, UK

code A1515uk
Price $24
In stock 4 pcs
ac/dc adapter 120Vac to 12Vdc/1A, US

ac/dc adapter 120Vac to 12Vdc/1A, US

code A1515us
Price $24
In stock 10 pcs

Accredited CO2 calibration

Accredited CO2 calibration

code SLU015
Price On request
In stock on request

Extra charge for increasing the range of the internal CO2 sensor

Extra charge for increasing the range of the internal CO2 sensor

code SLU113
Price $94
In stock on request

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price $360
In stock on request
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price $62
In stock 13 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price $82
In stock 6 pcs

COMET Database

COMET Database

code CDB
Price $900
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $148
In stock yes

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon 3D model T5540
991.20 KB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
2.18 MB
download-icon Quick Start Manual
897.17 KB
download-icon Declaration of Conformity
100.81 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
577.77 KB
download-icon Software development kit (SDK)
97.28 KB

Catalogs

download-icon CATALOG - CO2
5.30 MB
download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Premium WebSensors
2.09 MB
