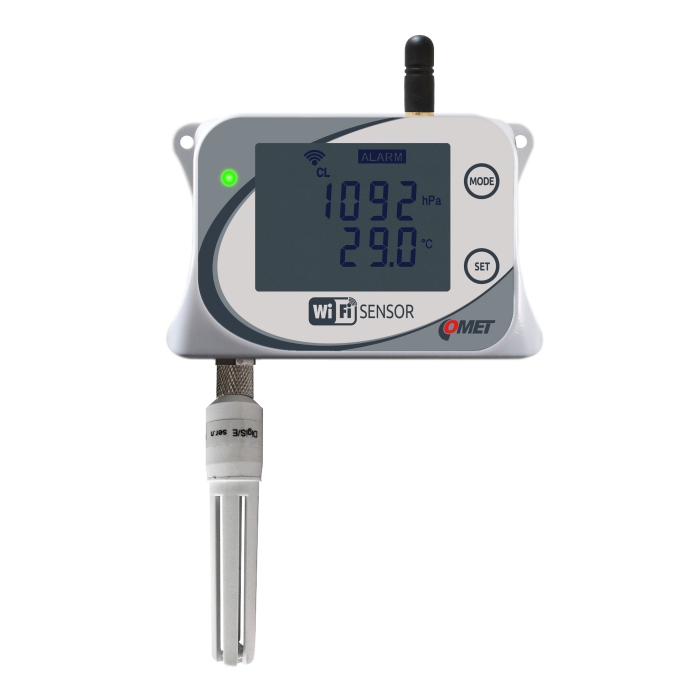

WiFi temperature, relative humidity and atmospheric pressure sensor with integrated probe

Sensors with WiFi interface are designed to measure the temperature, relative humidity and atmosperic pressure with a connected probe (included in delivery).

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online
COMET Cloud or COMET Database storage with the shortest interval of 5 minutes. The values ​​can be displayed on integrated web pages and provided to third party systems using the Modbus TCP protocol. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two alarm limits are supported for each measurement channel.

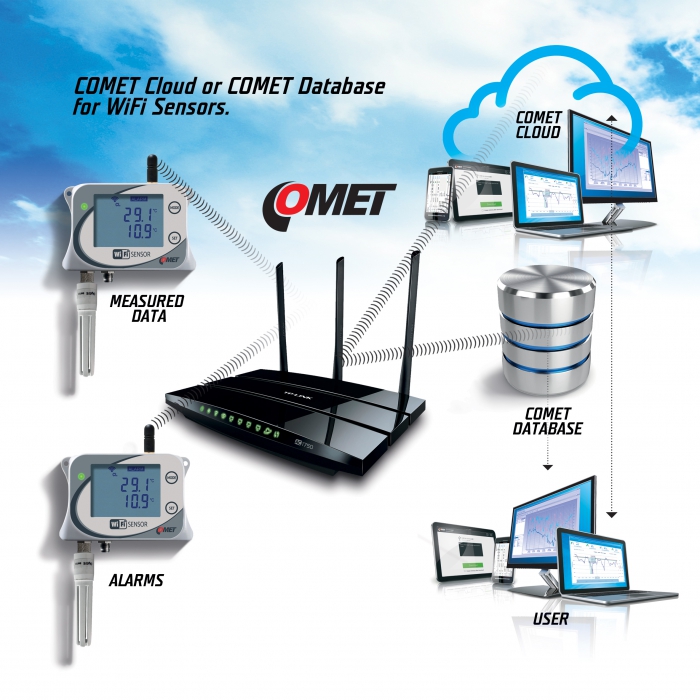

The main advantage of sensors with WiFi interface is the simplicity of deployment in places where WiFi infrastructure is already available. Just place the sensor in the desired location and connect it to the WiFi network. WiFi sensor in conjunction with
COMET Cloud or COMET Database offers a comprehensive solution for monitoring and alarm without the need for a server solution on the part of the user. If necessary, however, the sensor can also be connected to third-party systems, either using the Modbus TCP protocol or by sending JSON data to an http server.
Thanks to these unique features, the WiFi sensor will find applications and a wide range of application areas.

  • code
    W7710
  • Warranty
    3 years
  • $840

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 95 % RH
Accuracy ±1.8 % RH from 0 to 90 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +60 °C
Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels sensor of temperature, humidity sensor and atmospheric pressure
Measuring interval 1 s
Sending interval to COMET Cloud adjustable 5 minutes to 12 hours
Communication protocols HTTP(S), SMTP, ModbusTCP, SNMP (v1, v2c, v3), HTTP POST, HTTP GET (JSON, XML)
Alarm signalization e-mail, acoustic, LED
Power 5.0 to 5.4 VDC; consumption 150 mA (max. 500 mA); USB-C connector
Radio section frequency: 2.4 GHz; max. transmit power: 18 dBm; standard: IEEE 802.11 b/g/n
WiFi security Open, WEP, WPA, WPA2, WPA2-PMF, WPA3, WPA2-EAP
Protection class IP30
Dimensions 156 x 93 x 32 mm
Weight 125 g
Warranty 3 years

Optional accessories and download

Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -20 to 80°C
code DIGIS/E
Price $164
In stock 66 pcs

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price $112
In stock on request
Accredited atmospheric pressure calibration

Accredited atmospheric pressure calibration

code SLU006
Price $114
In stock on request

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
Price $24
In stock on request

wall holder for datalogger - kopie

wall holder for datalogger - kopie

code LP100
Price $42
In stock 21 pcs
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102
Price $14
In stock 19 pcs

COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $148
In stock yes

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.55 MB
download-icon Quick Start Manual
1.40 MB
download-icon Safety Information
274.30 KB
download-icon Calibration manual
457.30 KB
download-icon Declaration of Conformity
59.42 KB
download-icon MIB
577.77 KB

Firmware and SDK

download-icon Firmware version 10-0-6-0 (2022-04-25)
2.12 MB
download-icon Software development kit (SDK)
22.49 KB

Catalogs

download-icon CATALOG - WiFi Sensors
3.55 MB
download-icon Catalogue Sheets - COMET WiFi Sensors
1.48 MB
