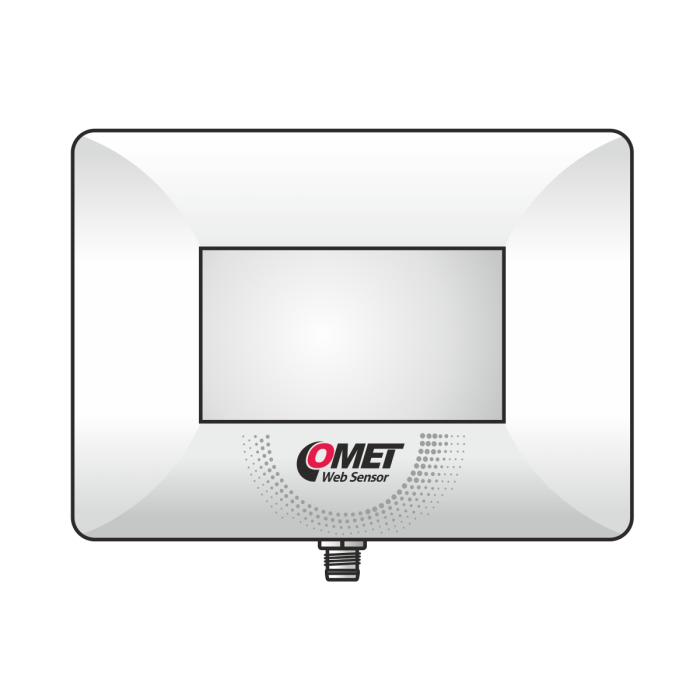

Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

The TA7611 extends the capabilities of the TA3611 model with integrated atmospheric pressure measurement. The device allows for the connection of one digital probe for temperature and humidity or CO2 measurement, while pressure is measured internally.

Thanks to the combination of an external probe and an internal pressure sensor, the TA7611 is suitable for applications where multiple environmental parameters must be monitored while maintaining a compact design. Naturally, it features an LCD display, multi-level alarm signaling, and PoE support.

The device is unique for meteorological applications or laboratories where conditions in a chamber (external probe) and ambient pressure must be measured simultaneously.

With the 'option' function, the device can also read temperature and pressure measured by the CO2G-10 probe if enabled.

Main Benefits:

  • External T+RH or CO2 probe + internal atmospheric pressure sensor
  • Backlit LCD display, acoustic and LED alarm signaling
  • Power supply 5–24 V or PoE
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    TA7611
  • Warranty
    3 years
  • On request
Buy
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0,1% RV

DEW POINT

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±(1.3 hPa + 0.06% of configured output range) at 23 °C, from 800 to 1100 hPa
Resolution 0.1 hPa

CO2 SENSOR

Measuring range 0 to 10,000 ppm
Accuracy ±(100 ppm + 5% of reading) at 23 °C and 1,013 hPa
Resolution 1 ppm
CO2 probe cable length 1, 2 or 4 meters

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels integrated atmospheric pressure sensor, 1× combined T+RH probe (cable-mounted) or CO2 probe, ELKA connector
Calculated values dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, humidex, heat index
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Supported atmospheric pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 2 s
Ingress protection (IP rating) IP30 (electronics)
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 240 g
Warranty 3 years
