Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE

Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE

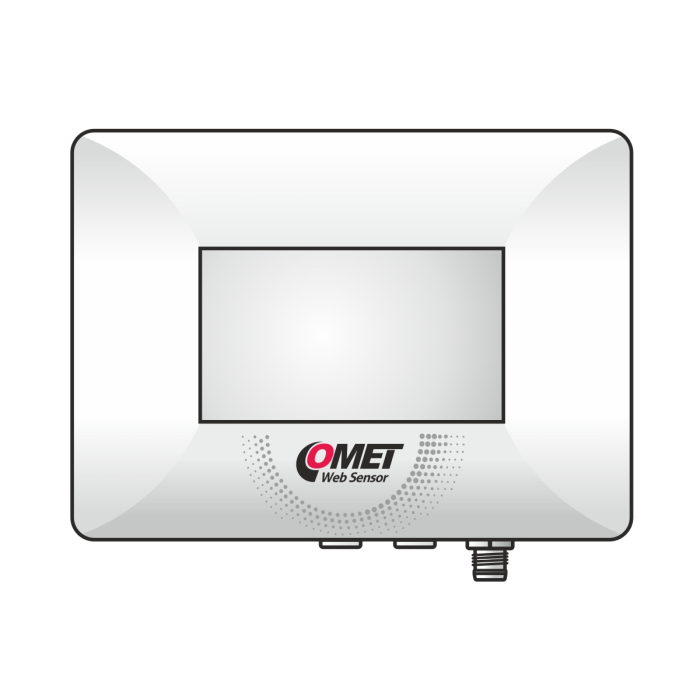

The TA3645 model represents a hybrid Ethernet sensor that combines two highly accurate analog inputs for Pt1000 resistance probes with one digital input (for T+RH or CO2 probes).

Thanks to this configuration, the TA3645 is a universal monitoring device capable of measuring in the extreme range of -200 °C to +260 °C with an accuracy of ±0.2 °C.

The device is an ideal solution for demanding applications in healthcare or industry: Pt1000 inputs reliably monitor refrigerators, freezers, cryogenic boxes, or ovens, while the digital probe simultaneously monitors the room climate (temperature, humidity, or CO2).

For convenient operation and easy integration, the TA3645 offers a large backlit LCD display, acoustic alarm signaling, and PoE support. It also features a cable resistance compensation function for Pt1000 probes directly from the web interface.

Main Benefits:

  • 2x Pt1000 input + 1x digital T+RH or CO2 probe
  • Extreme temperature measuring range from -200 °C
  • Backlit LCD display, acoustic and LED alarm signaling
  • Power supply 5–24 V or PoE
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    TA3645
  • Warranty
    3 years
  • On request
Buy
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2

TEMPERATURE SENSOR

Measuring range Depending on the connected Pt1000 probe
Accuracy Depending on the connected Pt1000 probe
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1% RV

DEW POINT

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

CO2 SENSOR

Measuring range 0 to 10,000 ppm
Accuracy ±(100 ppm + 5% of reading) at 23 °C and 1,013 hPa
Resolution 1 ppm
CO2 probe cable length 1, 2 or 4 meters

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels 2× Pt1000 inputs + 1× digital T+RH or CO₂ probe, CINCH / ELKA connectors
Calculated values dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, humidex, heat index
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Temperature compensation of the humidity sensor across the entire temperature range
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 2 s
Ingress protection (IP rating) IP30 (electronics)
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 220 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/C, temperature probe

Pt1000TG8/C, temperature probe

Temperature range: -80 to 200°C
code SN104C
Price $75
In stock 120 pcs
Pt1000TG8/C, temperature probe, cable 2 m

Pt1000TG8/C, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105C
Price $79
In stock 153 pcs
Pt1000TG8/C, temperature probe, cable 5 m

Pt1000TG8/C, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108C
Price $95
In stock 136 pcs
Pt1000TG8/C, temperature probe, cable 10 m

Pt1000TG8/C, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113C
Price $125
In stock 67 pcs
Pt1000TG7/C, temperature probe

Pt1000TG7/C, temperature probe

Temperature range: -50 to 200°C
code SN164C
Price $103
In stock 19 pcs
Pt1000TG7/C, temperature probe, cable 2 m

Pt1000TG7/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165C
Price $110
In stock 16 pcs
Pt1000TG7/C, temperature probe, cable 5 m

Pt1000TG7/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166C
Price $121
In stock 18 pcs
Pt1000TG7/C, temperature probe, cable 10 m

Pt1000TG7/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167C
Price $145
In stock 83 pcs
2301-220/C, temperature probe, cable 1 m

2301-220/C, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168C
Price $196
In stock 6 pcs
2021-150/C, temperature probe, cable 1 m

2021-150/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169C
Price $308
In stock 2 pcs
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170C
Price $108
In stock 11 pcs
2034-220/C, temperature probe, cable 1 m

2034-220/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175C
Price $185
In stock 9 pcs
Ambient temperature probe, 200-80/C

Ambient temperature probe, 200-80/C

Temperature range: -30 to 80°C
code SN177
Price $46
In stock 2 pcs
2061-200/C, temperature probe, cable 1 m

2061-200/C, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178C
Price $224
In stock on request
2061-200/C, temperature probe, cable 2 m

2061-200/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179C
Price $231
In stock 2 pcs
2061-200/C, temperature probe, cable 5 m

2061-200/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180C
Price $249
In stock 17 pcs
2061-200/C, temperature probe, cable 10 m

2061-200/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181C
Price $279
In stock 10 pcs
PTS350A-5/C, temperature probe, cable 5 m

PTS350A-5/C, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182C
Price $121
In stock on request
PTS350A-10/C, temperature probe, cable 10 m

PTS350A-10/C, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183C
Price $143
In stock 8 pcs
Pt1000TGL40/C, temperature probe, cable 1 m

Pt1000TGL40/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185C
Price $66
In stock 16 pcs
Pt1000TGL40/C, temperature probe, cable 2 m

Pt1000TGL40/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186C
Price $70
In stock 16 pcs
Pt1000TGL40/C, temperature probe, cable 5 m

Pt1000TGL40/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187C
Price $79
In stock 22 pcs
Pt1000TGL40/C, temperature probe, cable 10 m

Pt1000TGL40/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188C
Price $95
In stock 10 pcs
Pt1000TR160/C, temperature probe, cable 1 m

Pt1000TR160/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199C
Price $57
In stock 19 pcs
Pt1000TR160/C, temperature probe, cable 2 m

Pt1000TR160/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200C
Price $59
In stock 38 pcs
Pt1000TR160/C, temperature probe, cable 5 m

Pt1000TR160/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201C
Price $66
In stock 82 pcs
Pt1000TR160/C, temperature probe, cable 10 m

Pt1000TR160/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202C
Price $79
In stock 79 pcs
Pt1000TR160/C, temperature probe, cable 15 m

Pt1000TR160/C, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203C
Price $101
In stock 92 pcs
Pt1000TR160/C, temperature probe, cable 20 m

Pt1000TR160/C, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204C
Price $112
In stock 27 pcs
2091-250/C, Stick-in probe, cable 1 m

2091-250/C, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210C
Price $242
In stock 5 pcs
2091-250/C, Stick-in probe, cable 2 m

2091-250/C, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211C
Price $260
In stock 2 pcs
2091-250/C, Stick-in probe, cable 5 m

2091-250/C, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212C
Price $312
In stock 1 pcs
2091-250/C, Stick-in probe, cable 10 m

2091-250/C, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213C
Price $403
In stock on request
Pt1000TR125/C, temperature probe, cable 1 m

Pt1000TR125/C, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239C
Price $218
In stock 4 pcs
Pt1000TR125/C, temperature probe, cable 2 m

Pt1000TR125/C, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240C
Price $238
In stock 8 pcs
Pt1000TR125/C, temperature probe, cable 5 m

Pt1000TR125/C, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241C
Price $304
In stock 22 pcs
Pt1000TR125/C, temperature probe, cable 10 m

Pt1000TR125/C, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242C
Price $411
In stock 15 pcs
Pt1000TR050S/C, temperature probe, cable 1 m

Pt1000TR050S/C, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Price $88
In stock 509 pcs
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Price $130
In stock on request
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Price $132
In stock on request
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Price $150
In stock 2 pcs
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Price $178
In stock on request
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Price $227
In stock on request
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Price $163
In stock 4 pcs
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Price $185
In stock 8 pcs
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C
Price $249
In stock on request
Temperature probe Pt1000TR050M/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273C
Price $352
In stock on request

Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/E-1
Price $233
In stock 4 pcs
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/E-2
Price $246
In stock on request
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/E-5
Price $277
In stock 4 pcs
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -20 to 80°C
code DIGIL/E
Price $209
In stock 43 pcs
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C
code DIGIL/E-1
Price $218
In stock 8 pcs
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C
code DIGIL/E-10
Price $308
In stock 1 pcs
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -30 to 105°C
code DIGIL/E-15
Price $356
In stock 1 pcs
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C
code DIGIL/E-2
Price $229
In stock 17 pcs
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C
code DIGIL/E-5
Price $257
In stock 17 pcs
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -20 to 80°C
code DIGIS/E
Price $180
In stock 95 pcs
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C
code DIGIS/E-1
Price $189
In stock 7 pcs
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C
code DIGIS/E-10
Price $277
In stock 2 pcs
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C
code DIGIS/E-15
Price $328
In stock on request
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIS/E-2
Price $200
In stock 4 pcs
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIS/E-5
Price $229
In stock 2 pcs

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
Price $26
In stock 8 pcs
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
Price $26
In stock on request
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Price $26
In stock on request

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price On request
In stock on request
Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price On request
In stock on request

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price On request
In stock on request
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price $90
In stock 5 pcs

Magnetic holder for Web Sensors PAxxxx and TAxxxx

Magnetic holder for Web Sensors PAxxxx and TAxxxx

code SP104
Price On request
In stock on request

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Price $42
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price $26
In stock on request
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price $26
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price $84
In stock on request

COMET Database

COMET Database

code CDB
Price $990
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $163
In stock yes

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Quick Start Manual
961.10 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Premium WebSensors 2.0
107.88 KB

Related products

COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Database

COMET Database

code CDB
Price $990
In stock yes
Sensor for Up to Two Digital Temperature and Humidity or CO2 Probes, Ethernet Output and PoE

Sensor for Up to Two Digital Temperature and Humidity or CO2 Probes, Ethernet Output and PoE

code TA3621
Price On request
In stock on request
Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

code TA7611
Price On request
In stock on request
Compact Temperature and Humidity Sensor, Ethernet Output and PoE

Compact Temperature and Humidity Sensor, Ethernet Output and PoE

code TA3610
Price On request
In stock on request
Multi-Plate Radiation Shield for Weather Sensors

Multi-Plate Radiation Shield for Weather Sensors

Discontinued
WiFi temperature and relative humidity sensor with integrated probe

WiFi temperature and relative humidity sensor with integrated probe

code W3710
Price $777
In stock on request
WiFi temperature and relative humidity sensor for external probe

WiFi temperature and relative humidity sensor for external probe

code W3711
Price $601
In stock 4 pcs
WiFi temperature and relative humidity sensor for two external probes

WiFi temperature and relative humidity sensor for two external probes

code W3721
Price $638
In stock 12 pcs
Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

code T3610
Price $761
In stock 7 pcs
Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

code T3611
Price $781
In stock on request

Contact

COMET AMERICA
11045 Alameda Ave
Inver Grove Heights, MN 55077
USA

E-mail: info@comet-america.com

Telephone customer support
Phone: (612)-845-6990

We produce

Leading manufacturer of temperature, humidity, atmospheric pressure, carbon dioxide CO2 transmitters, data loggers, monitoring systems, data acquisiton systems, thermometers, hygrometers, barometers. Production includes data acquisition systems, humidity, temperature, CO2 transmitters and portable thermometers, hygrometers, barometers, CO2 meters. Instruments are designed for accurate measurement and for monitoring environmental conditions.

All instruments come with included traceable calibration certificate with declared metrological traceability of etalons based on requirements of EN ISO/IEC 17025 standard.
