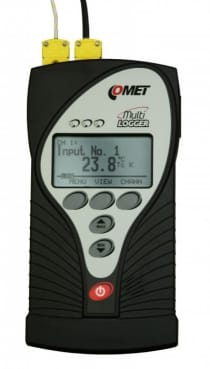

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL.
The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in COMET Vision, where you can create table charts, PDF export, MS EXCEL. The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N. Included is traceable calibration certificate in accordance with EN ISO/IEC17025.





  • code
    M1200E
  • Warranty
    3 years
  • $670

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface USB
Power 3x AA alkaline battery 1.5 V
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Automatizace budov a HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

● the features may vary depending on the device type
● up to 6 hardware inputs for measuring and recording, 16 virtual channels for temperature, humidity, dew point, atmospheric pressure, current 0 - 20 mA and voltage 0 - 10 V (-60 to 140 mV), two-state events, pulses, CO2
● memory for 1 million values
● indication of alarm conditions via e-mail, SMS, integrated acoustic siren LEDs, stwo-state output to control other devices
● analytical software for data processing and configuration - COMET Vision
● communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)



Warranty 3 years Traceable calibration certificate COMET Database Data report Datalogger Handheld device Temperature sensor 2 line LCD Internal memory Alarm

Battery powerRecheargeable batteryIP protection



Up to 4 physical Thermocouple Inputs

Multilogger M1200 inputs
Removable inputs allows connection of:
  • Themocouple probe K, J, S, B, T, N
  • Direct input of bipolar voltages with range up to -60 to +140 mV
  • Sensors with woltage output (range -60 to +140mV; accuracy ±100 µV or -18 to +18mV; accuracy ±20 µV)

Evaluation of up to 16 variables

Multilogger - LCD detail
Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be a further expression of moisture – dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. It can be also the result of inter-channel conversions, e.g. the difference of two connected temperature probes.Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger - Power Supply
Multilogger - Power Supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.

Alarm limits and alarm indication

Multilogger - Alarm limits

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

Communication interfaces

Multilogger - M1200E

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Output ALARM OUT

Multilogger - Alarm limits and alarm indication
  • Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
  • Type of output - open collector transistor
  • Max. switching current - 100 mA
  • Max. voltage on output - 24 V
  • Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
  • Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.

Optional accessories

Thermocouple probes

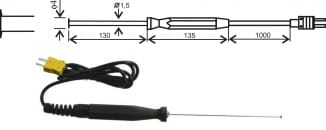

CP500 thermocouple K surface probe

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C
code CP500
Price $100
In stock 2 pcs

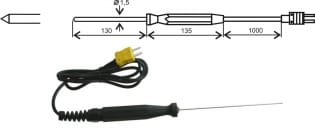

CZ550 thermocouple K surface probe

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C
code CZ550
Price $100
In stock 5 pcs

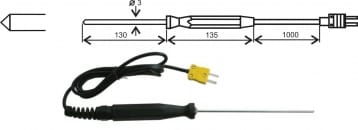

CZ900 thermocouple K needle probe

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C
code CZ900
Price $100
In stock 6 pcs
GD1250 thermocouple "K" wire probe

GD1250 thermocouple "K" wire probe

Temperature range: -65 to 980°C
code GD1250-1
Price $45
In stock 3 pcs
GD1250 thermocouple "K" wire probe 2m

GD1250 thermocouple "K" wire probe 2m

Temperature range: -65 to 980°C
code GD1250-2
Price $80
In stock 7 pcs
GD1250 thermocouple "K" wire probe 3m

GD1250 thermocouple "K" wire probe 3m

Temperature range: -65 to 980°C
code GD1250-3
Price $120
In stock on request
GD1250 thermocouple "K" wire probe 4m

GD1250 thermocouple "K" wire probe 4m

Temperature range: -65 to 980°C
code GD1250-4
Price $155
In stock on request
GD260 thermocouple "K" wire probe

GD260 thermocouple "K" wire probe

Temperature range: -65 to 260°C
code GD260-1
Price $25
In stock 21 pcs
GD260 thermocouple "K" wire probe 2m

GD260 thermocouple "K" wire probe 2m

Temperature range: -65 to 260°C
code GD260-2
Price $45
In stock 9 pcs
GD260 thermocouple "K" wire probe 3m

GD260 thermocouple "K" wire probe 3m

Temperature range: -65 to 260°C
code GD260-3
Price $65
In stock 4 pcs
GD260 thermocouple "K" wire probe 4m

GD260 thermocouple "K" wire probe 4m

Temperature range: -65 to 260°C
code GD260-4
Price $85
In stock 3 pcs
GD700 thermocouple "K" wire probe

GD700 thermocouple "K" wire probe

Temperature range: -65 to 700°C
code GD700-1
Price $25
In stock 2 pcs
GD700 thermocouple "K" wire probe 2m

GD700 thermocouple "K" wire probe 2m

Temperature range: -65 to 700°C
code GD700-2
Price $45
In stock on request
GD700 thermocouple "K" wire probe 3m

GD700 thermocouple "K" wire probe 3m

Temperature range: -65 to 700°C
code GD700-3
Price $65
In stock on request
GD700 thermocouple "K" wire probe 4m

GD700 thermocouple "K" wire probe 4m

Temperature range: -65 to 700°C
code GD700-4
Price $85
In stock 3 pcs

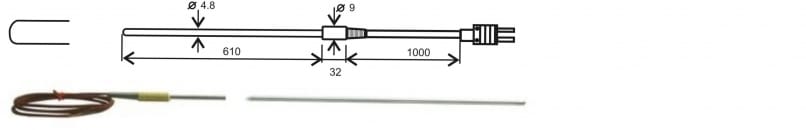

GT1150 thermocouple "K" insertion probe

GT1150 thermocouple "K" insertion probe

Temperature range: -50 to 1150°C
code GT1150
Price $100
In stock 10 pcs

Other accessories

COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

code F8110
Price $250
In stock 6 pcs
Plastic transport case for Multilogger

Plastic transport case for Multilogger

code BM511
Price $75
In stock 10 pcs
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Price $30
In stock 1 pcs
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Price $15
In stock 2 pcs
Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Price $45
In stock 16 pcs
Watertight case with cable glands for Multilogger, transparent lid

Watertight case with cable glands for Multilogger, transparent lid

code MLP007
Price $155
In stock on request

Monitoring software

COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Price $1
In stock yes
Comet Database

Comet Database

code CDB
Price $370
In stock yes
