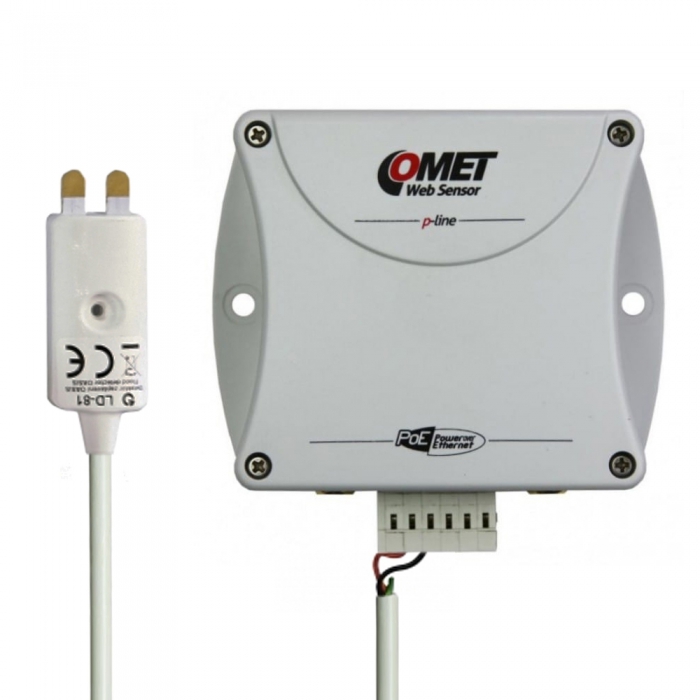

P-line Web Sensor with PoE for measuring temperature, relative humidity, with flood detector and binary inputs for two-states signals.

Web Sensors P8653 is designed to measure temperature or relative humidity from up to two external probes. This allows to measure values from two different places by one device.

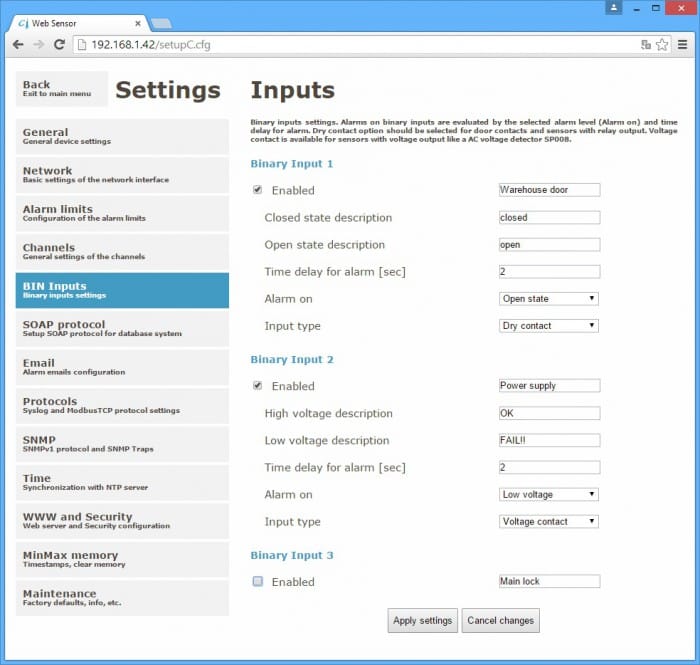

Device is equipped by three binary inputs. P8653 have dedicated first binary input for connection of flood detector LD-81 (included).
Other two binary inputs can be used to connection of dry contacts or binary sensors with voltage output.

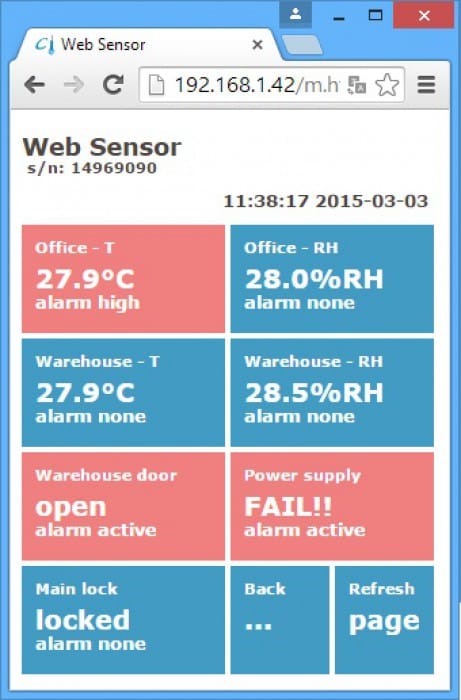

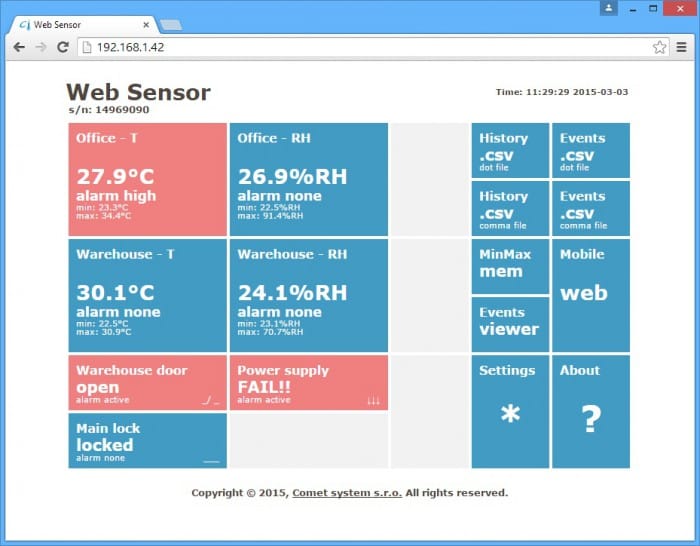

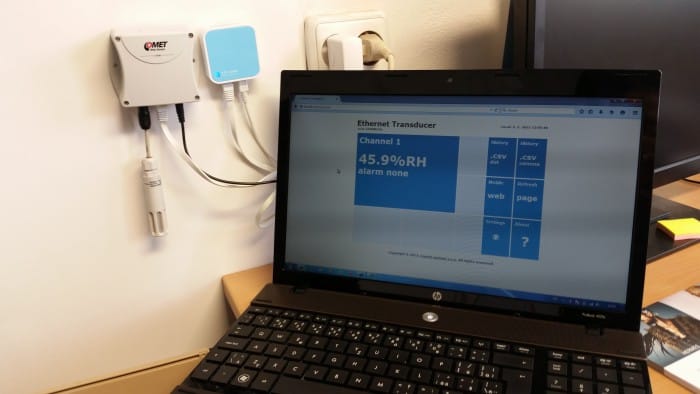

Communication with the device is realized via Ethernet network. P8653 can be powered from external power supply adapter or by using power over Ethernet – PoE.

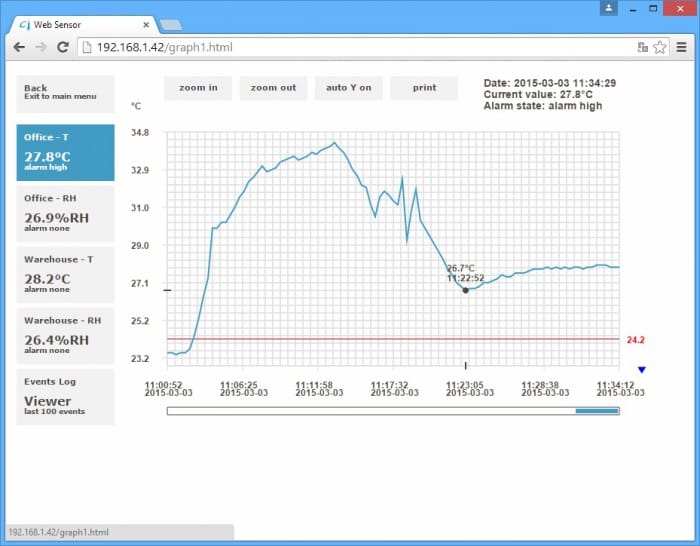

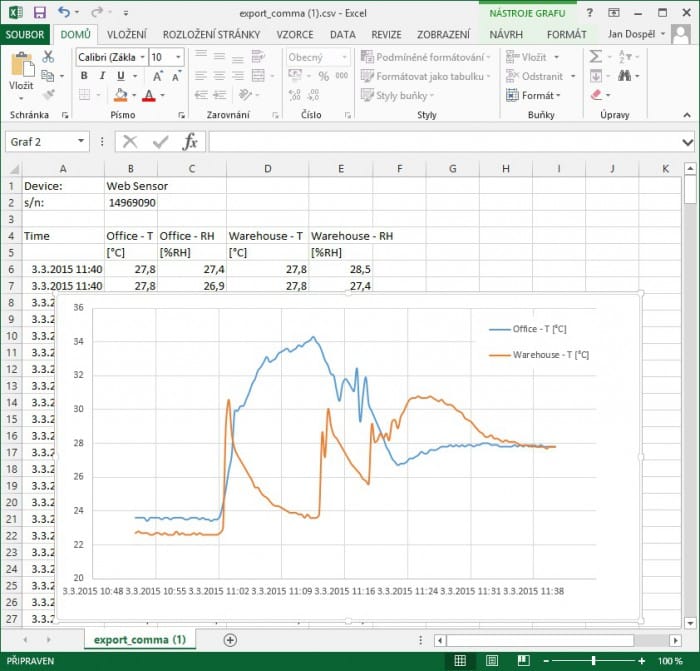

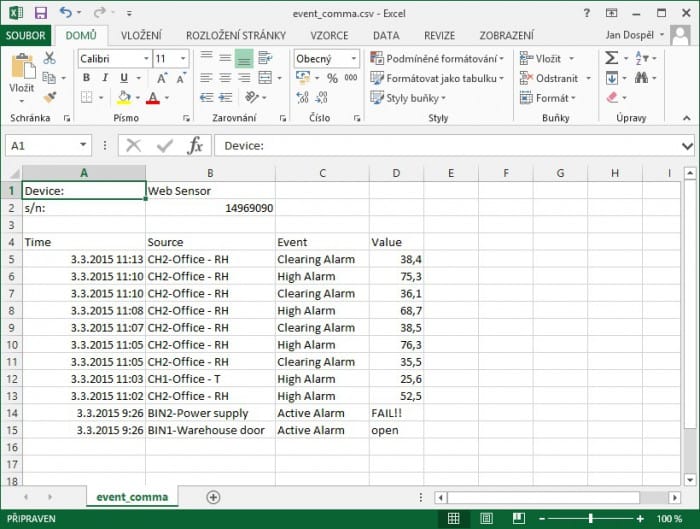

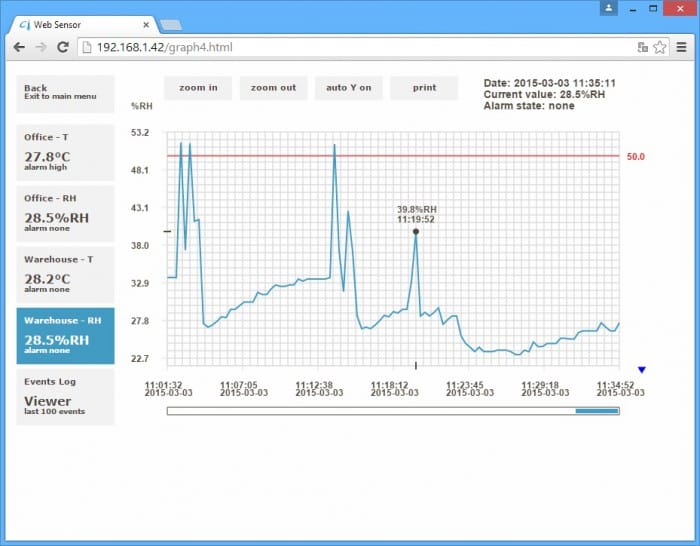

Processing and analysis of measured data:

With a newly purchased WebSensor with Ethernet communication, you receive 3 months of COMET Cloud. for free; a full year of operation in COMET Cloud. then requires 1 credit.


  • code
    P8653
  • Warranty
    3 years
  • $517
Buy
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Two-state signal

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

FLOOD DETECTOR

Usage Intended for indoor usage only
Cable length 2.5 meters (can`t be extended)
Two wire connection red wire – active, black wire – GND, directly powered from P8653

BINARY INPUT

Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Parameters of the voltage-free contact Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML

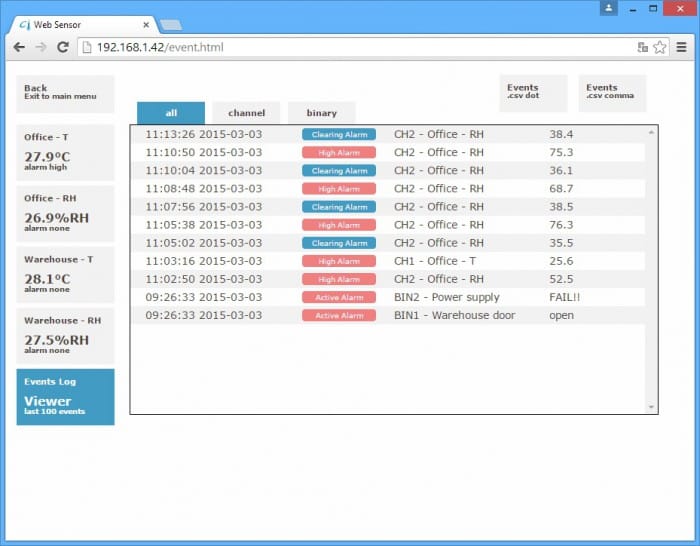

Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years
