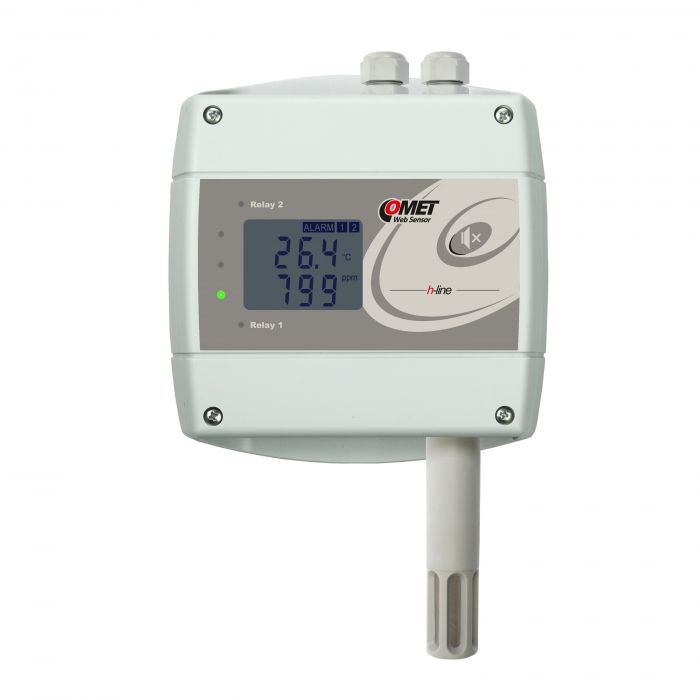

Remote CO2 concentration thermometer hygrometer with Ethernet interface and two relays

Temperature, humidity, CO2 level sensor with two output relays.

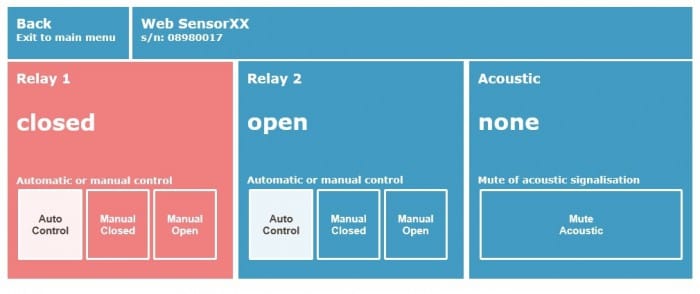

Sensor H6520 is designed for online monitoring of temperature, relative humidity and CO2 of air without aggressive substances. Other devices are controlled by two relay outputs.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability and eliminates the need of periodical recalibration in the field.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:



  • code
    H6520
  • Warranty
    3 years
  • $1 050

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal temperature, humidity and CO2 sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm from built-in beeper - switchable
Output Ethernet
Measuring interval 2 s; CO2 15 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 136 x 213 x 45 mm; stem length 75mm
Weight approx. 340 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

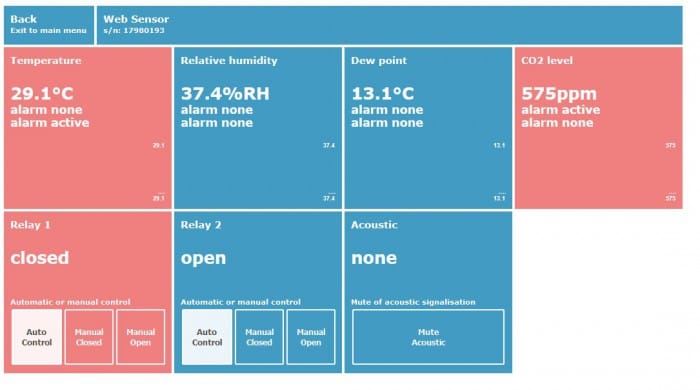

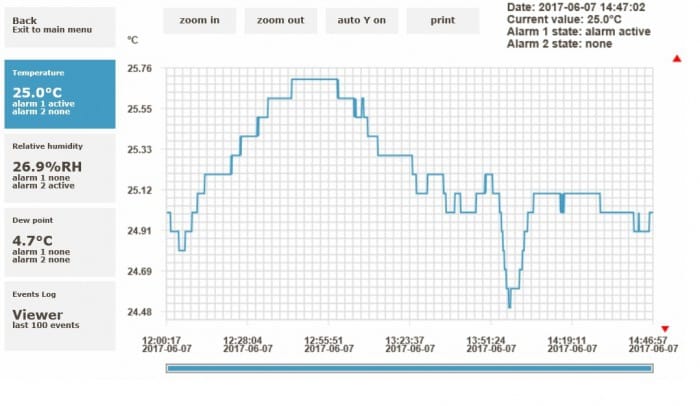

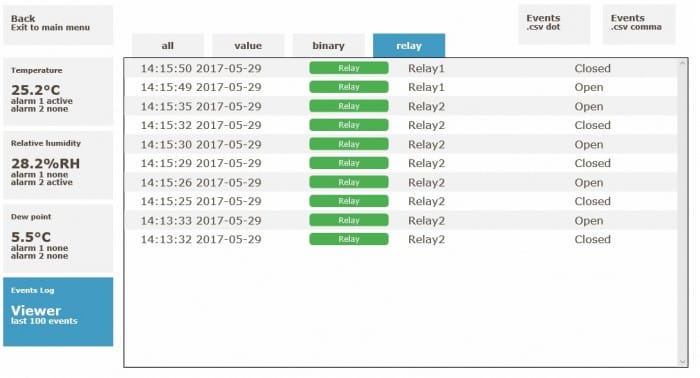

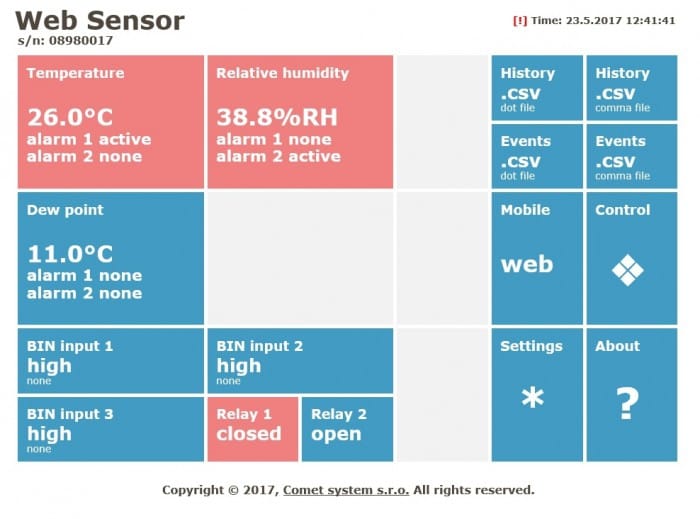

● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE

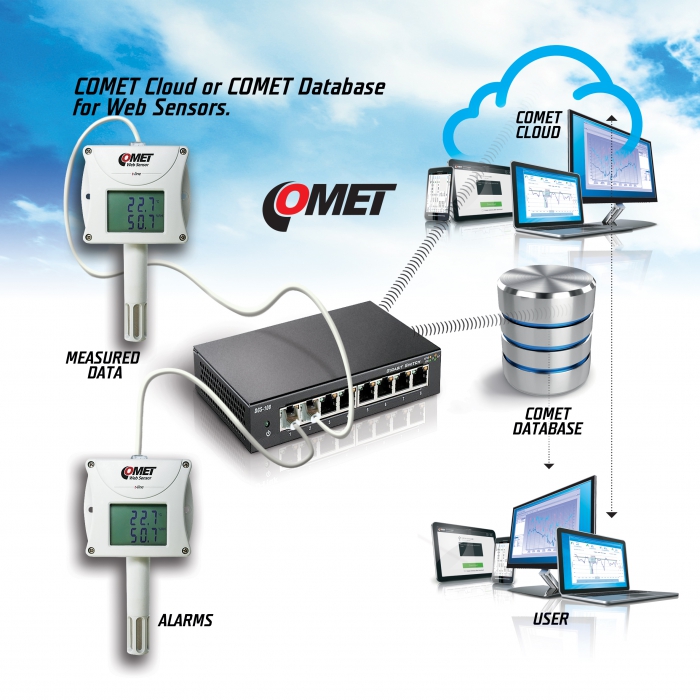

● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Humidex Reléové výstupy

Dvouřádkový LCD displej Akustická signalizace Ethernetové rozhraní Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV

Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot
