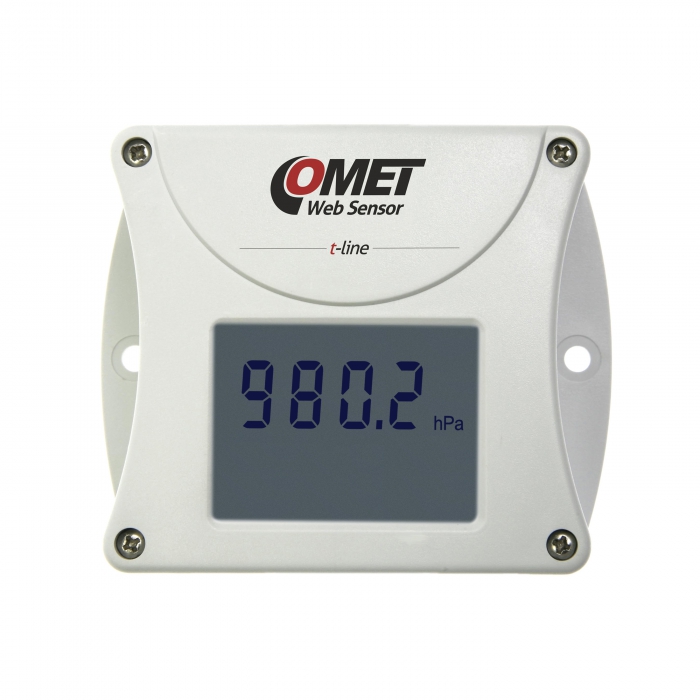

WebSensor - remote barometer with Ethernet interface

Atmospheric pressure t-line Web sensor. Remote alarm.

Web Sensor with built-in atmospheric pressure sensor. Display reading and pressure output is user selectable in these units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2.

Processing and analysis of measured data:





  • code
    T2514
  • Warranty
    3 years
  • $630

Technical data

Measured value

Atmospheric pressure

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal atmospheric pressure sensor
Output Ethernet
Measuring interval 2 s
Available pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 98 x 39,5 mm
Weight approx. 150 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML
● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Ethernetové rozhraní

Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol

SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot
