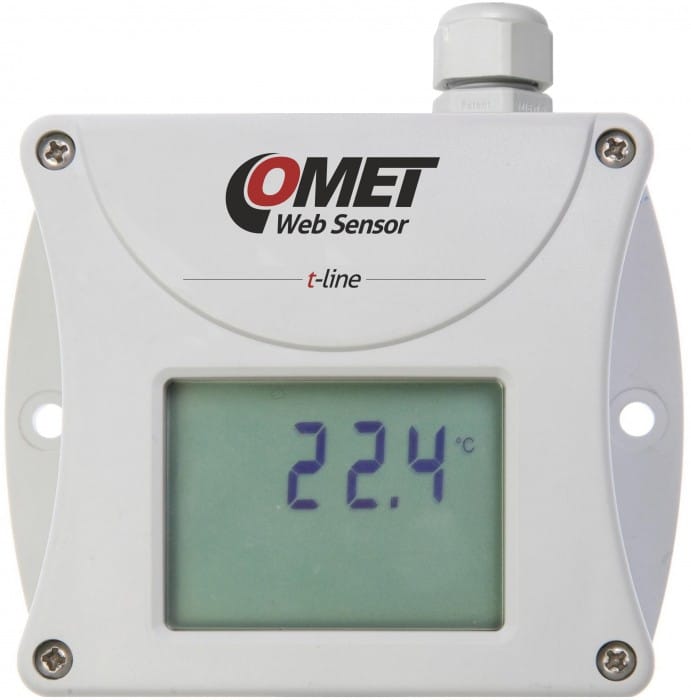

WebSensor - remote thermometer with Ethernet interface

Ambient temperature t-line Web sensor for Pt1000 sensor. Remote alarm.

Web Sensor for external Pt1000 temperature probe.

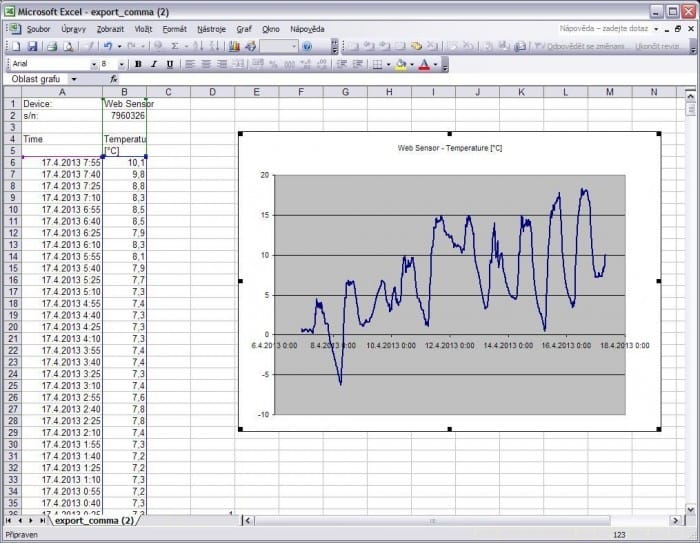

Processing and analysis of measured data:







  • code
    T4511
  • Warranty
    3 years
  • $406

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2°C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 94 x 39,5 mm
Weight approx. 145 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

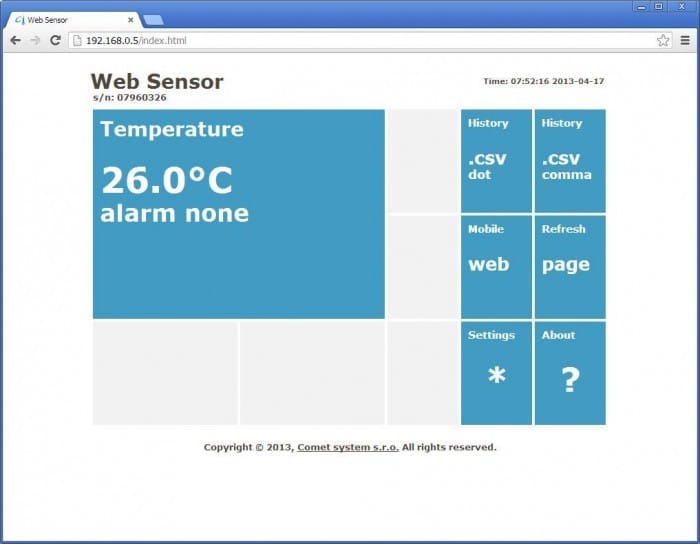

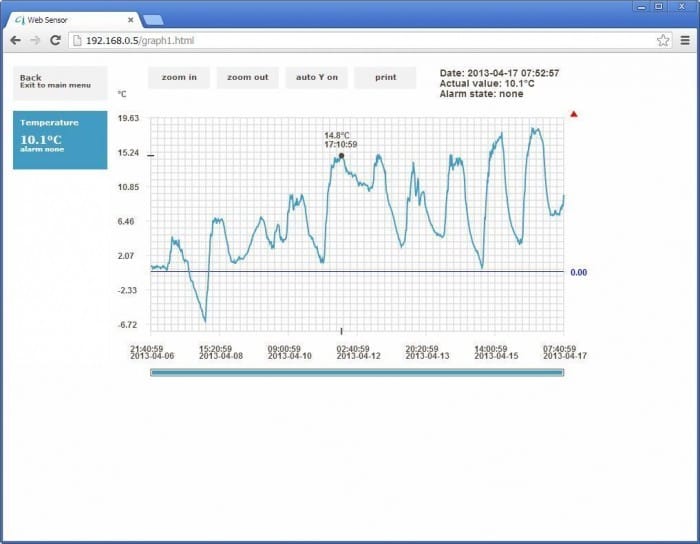

● webserver to display current and recorded values

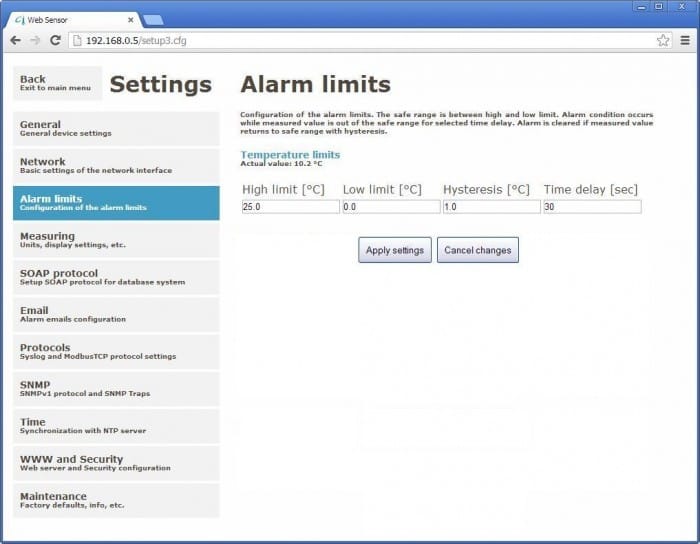

● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software

Záruka 3 roky Kalibrační listCOMET Database Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Ethernetové rozhraní

Power over Ethernet - PoE WWW server WWW server Historie uložených hodnot Historické grafy E-mail Export historických dat do CSV Modbus TCP protokol Aktuální hodnoty pomocí XML SNMP protokol

SNMP Trap SOAP Protokol Syslog protokol SNTP protokol - časová synchronizace Paměť MIN/MAX hodnot


Optional accessories and download

Pt1000TG8/0, temperature probe

Pt1000TG8/0, temperature probe

Temperature range: -80 to 200°C
code SN104
Price $54
In stock 12 pcs
Pt1000TG8/0, temperature probe, cable 2 m

Pt1000TG8/0, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105
Price $58
In stock 89 pcs
Pt1000TG8/0, temperature probe, cable 5 m

Pt1000TG8/0, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108
Price $74
In stock 98 pcs
Pt1000TG8/0, temperature probe, cable 10 m

Pt1000TG8/0, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113
Price $100
In stock 31 pcs
2061-250/0 Temperature probe

2061-250/0 Temperature probe

Temperature range: -30 to 250°C
code SN147
Price On request
In stock on request
2061-250/0 2 m Temperature probe

2061-250/0 2 m Temperature probe

Temperature range: -30 to 250°C
code SN148
Price On request
In stock on request
2061-250/0 5 m Temperature probe

2061-250/0 5 m Temperature probe

Temperature range: -30 to 250°C
code SN151
Price On request
In stock 3 pcs
2061-250/0  10 m Temperature probe

2061-250/0 10 m Temperature probe

Temperature range: -30 to 250°C
code SN156
Price On request
In stock on request
Pt1000TG7/0, temperature probe

Pt1000TG7/0, temperature probe

Temperature range: -50 to 200°C
code SN164
Price $82
In stock 9 pcs
Pt1000TG7/0, temperature probe, cable 2 m

Pt1000TG7/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165
Price $88
In stock 5 pcs
Pt1000TG7/0, temperature probe, cable 5 m

Pt1000TG7/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166
Price $98
In stock 10 pcs
Pt1000TG7/0, temperature probe, cable 10 m

Pt1000TG7/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167
Price $120
In stock 5 pcs
2301-220/0, temperature probe, cable 1 m

2301-220/0, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168
Price $166
In stock 10 pcs
2021-150/0, temperature probe, cable 1 m

2021-150/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169
Price $268
In stock 3 pcs
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170
Price $86
In stock 16 pcs
2034-220/0, temperature probe, cable 1 m

2034-220/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175
Price $156
In stock 15 pcs
2061-200/0, temperature probe, cable 1 m

2061-200/0, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178
Price $192
In stock 6 pcs
2061-200/0, temperature probe, cable 2 m

2061-200/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179
Price $198
In stock 5 pcs
2061-200/0, temperature probe, cable 5 m

2061-200/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180
Price $214
In stock 1 pcs
2061-200/0, temperature probe, cable 10 m

2061-200/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181
Price $242
In stock on request
PTS350A-5/0, temperature probe, cable 5 m

PTS350A-5/0, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182
Price $96
In stock 20 pcs
PTS350A-10/0, temperature probe, cable 10 m

PTS350A-10/0, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183
Price $118
In stock 12 pcs
Pt1000TGL40/0, temperature probe, cable 1 m

Pt1000TGL40/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185
Price $48
In stock 17 pcs
Pt1000TGL40/0, temperature probe, cable 2 m

Pt1000TGL40/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186
Price $52
In stock on request
Pt1000TGL40/0, temperature probe, cable 5 m

Pt1000TGL40/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187
Price $58
In stock 52 pcs
Pt1000TGL40/0, temperature probe, cable 10 m

Pt1000TGL40/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188
Price $74
In stock 18 pcs
Pt1000TR160/0, temperature probe, cable 1 m

Pt1000TR160/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199
Price $40
In stock 7 pcs
Pt1000TR160/0, temperature probe, cable 2 m

Pt1000TR160/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200
Price $42
In stock 45 pcs
Pt1000TR160/0, temperature probe, cable 5 m

Pt1000TR160/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201
Price $48
In stock 57 pcs
Pt1000TR160/0, temperature probe, cable 10 m

Pt1000TR160/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202
Price $58
In stock 128 pcs
Pt1000TR160/0, temperature probe, cable 15 m

Pt1000TR160/0, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203
Price $80
In stock 12 pcs
Pt1000TR160/0, temperature probe, cable 20 m

Pt1000TR160/0, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204
Price $90
In stock 64 pcs
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Price $130
In stock 1 pcs
2091-250/0, Stick-in probe, cable 1 m

2091-250/0, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210
Price $208
In stock 2 pcs
2091-250/0, Stick-in probe, cable 2 m

2091-250/0, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211
Price $224
In stock on request
2091-250/0, Stick-in probe, cable 5 m

2091-250/0, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212
Price $272
In stock 3 pcs
2091-250/0, Stick-in probe, cable 10 m

2091-250/0, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213
Price $354
In stock 4 pcs
2071-030/0, special probe with CINCH connector

2071-030/0, special probe with CINCH connector

Temperature range: -30 to 80°C
code SN214
Price $326
In stock 4 pcs
Pt1000TG68/0, temperature probe, cable 2 m

Pt1000TG68/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232
Price $90
In stock 11 pcs
Pt1000TG68/0, temperature probe, cable 5 m

Pt1000TG68/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233
Price $106
In stock 9 pcs
Pt1000TG68/0, temperature probe, cable 10 m

Pt1000TG68/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234
Price $132
In stock 19 pcs
Pt1000TR125/0, temperature probe, cable 1 m

Pt1000TR125/0, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239
Price On request
In stock 20 pcs
Pt1000TR125/0, temperature probe, cable 2 m

Pt1000TR125/0, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240
Price $204
In stock 20 pcs
Pt1000TR125/0, temperature probe, cable 5 m

Pt1000TR125/0, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241
Price $262
In stock 27 pcs
Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242
Price $362
In stock 25 pcs
Pt1000TR050S/0, temperature probe, cable 1 m

Pt1000TR050S/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m

Pt1000TR050S/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m

Pt1000TR050S/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Price $68
In stock 33 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Price $76
In stock 84 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Price $106
In stock 30 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Price $154
In stock 7 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Price $106
In stock 1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Price $108
In stock 4 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Price On request
In stock 1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Price On request
In stock on request
Pt1000TR050M/0, temperature probe, cable 1 m

Pt1000TR050M/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
code SN270
Price On request
In stock 9 pcs
Pt1000TR050M/0, temperature probe, cable 2 m

Pt1000TR050M/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271
Price On request
In stock 11 pcs
Pt1000TR050M/0, temperature probe, cable 5 m

Pt1000TR050M/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
code SN272
Price On request
In stock 24 pcs
Pt1000TR050M/0, temperature probe, cable 10 m

Pt1000TR050M/0, temperature probe, cable 10 m

Temperature range: -50 to 400°C
code SN273
Price On request
In stock on request

ac/dc adapter 120Vac to 12Vdc/1A, EU

ac/dc adapter 120Vac to 12Vdc/1A, EU

code A1515eu
Price $24
In stock 97 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK

ac/dc adapter 120Vac to 12Vdc/1A, UK

code A1515uk
Price $24
In stock on request
ac/dc adapter 120Vac to 12Vdc/1A, US

ac/dc adapter 120Vac to 12Vdc/1A, US

code A1515us
Price On request
In stock 13 pcs

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price $360
In stock on request
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price $62
In stock 18 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price On request
In stock 6 pcs

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Price $24
In stock 69 pcs

COMET Database

COMET Database

code CDB
Price $900
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price $148
In stock yes

Software

download-icon Comet Database One Click Installer (21.1-IIi)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-2-0)
2.73 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon 3D model T4511
1.15 MB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.59 MB
download-icon Quick Start Manual
941.49 KB
download-icon Declaration of Conformity
103.18 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
575.32 KB
download-icon Software development kit (SDK)
97.28 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB

Related products

WiFi temperature sensor with integrated probe

WiFi temperature sensor with integrated probe

code W0710
Price On request
In stock 12 pcs
WiFi temperature sensor for one external Pt1000 probe

WiFi temperature sensor for one external Pt1000 probe

code W0711
Price $564
In stock on request
WiFi temperature sensor for 4 external Pt1000 probes

WiFi temperature sensor for 4 external Pt1000 probes

code W0741
Price $590
In stock 8 pcs
WebSensor - remote thermometer with Ethernet interface

WebSensor - remote thermometer with Ethernet interface

code T0510
Price $444
In stock 5 pcs
Thermometer with Ethernet interface and relays

Thermometer with Ethernet interface and relays

code H4531
Price $688
In stock 3 pcs

WebSensor Demo
