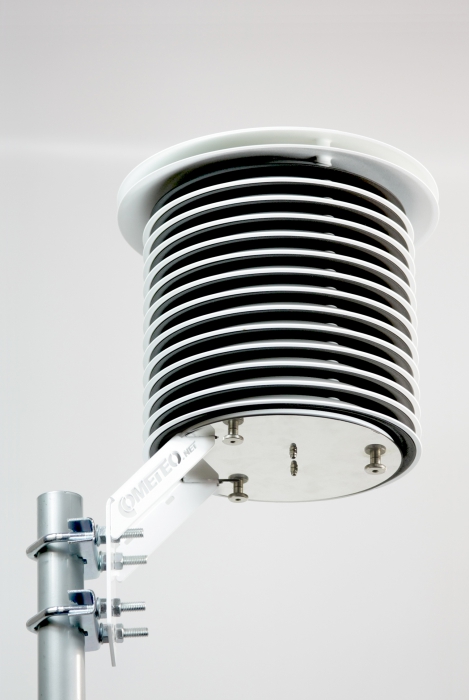

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

Professional passive solar radiation shield for better protection of weather sensors and barometers and for more accurate measurement, naturally ventilated.

"Not only thermometer screen, but the complete COMETEO system minimizing measurement errors when used with high-quality certified sensors"

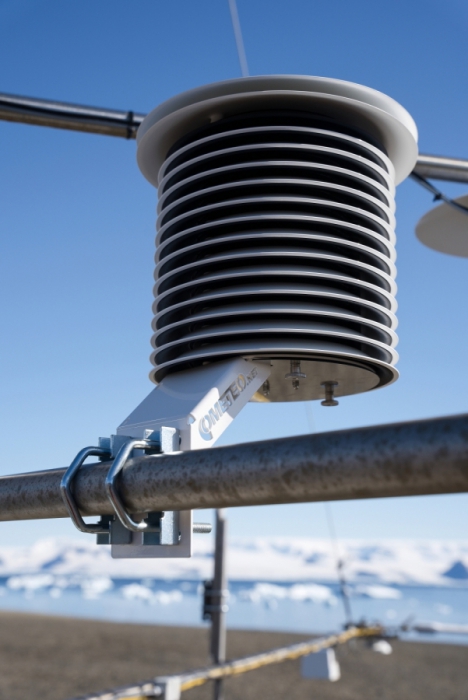

Multi-plate radiation shield is used to protect weather monitor systems and provides the most accurate climate measurement results. The uniquely designed screen minimizes solar radiation reaching the sensor, minimizes radiation absorbed by the screen and maximizes ambient air flow around the weather station sensor. The surface exposed to sunlight is made of highly reflective UV and long-term stable ASA plastic. The inner surfaces of the screen are made of matt black plastic to minimize internal reflections. Large 210mm diameter of 14 plates is designed to provide full protection of weather sensor.

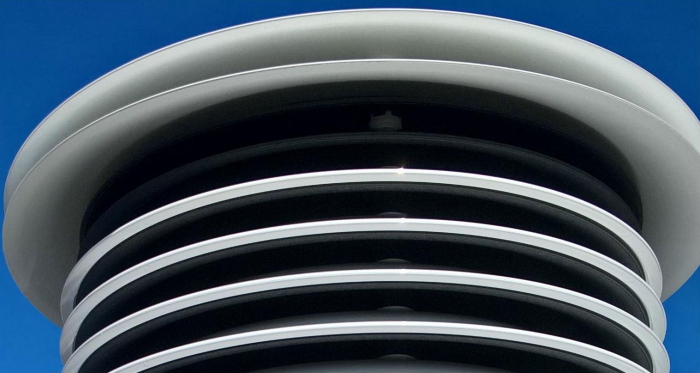

Each of the fourteen black louvres is equipped with a circular slot allowing air to flow vertically through the entire radiation shield. The slot also separates the sunlit part of the louvre from the inner part and thus prevents heat transfer to the sensors.

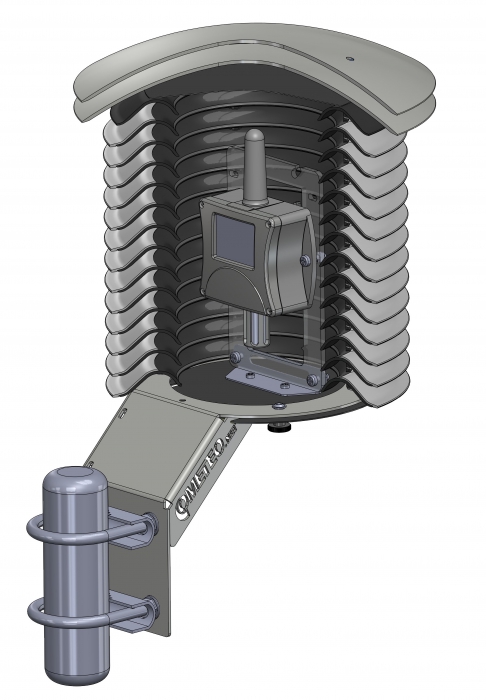

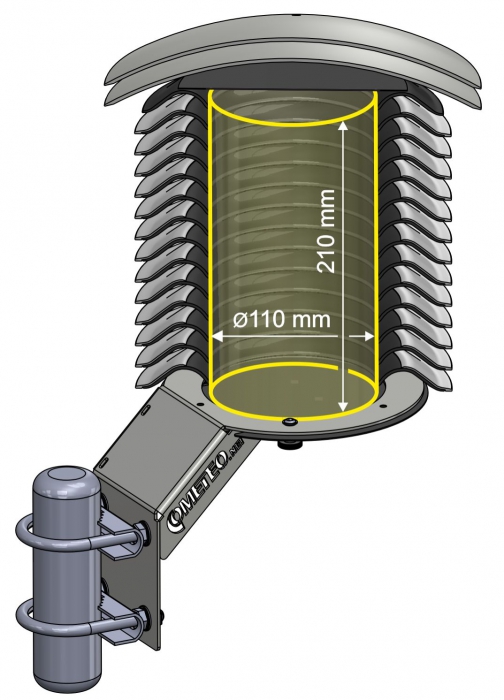

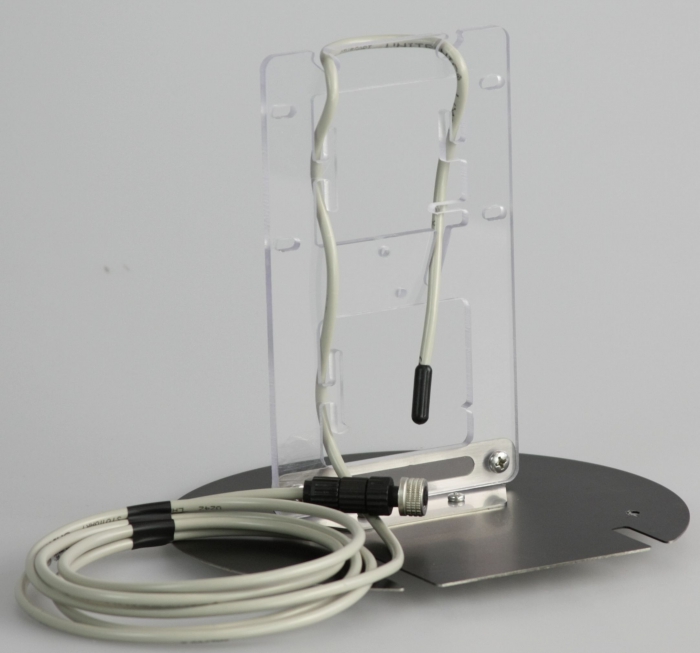

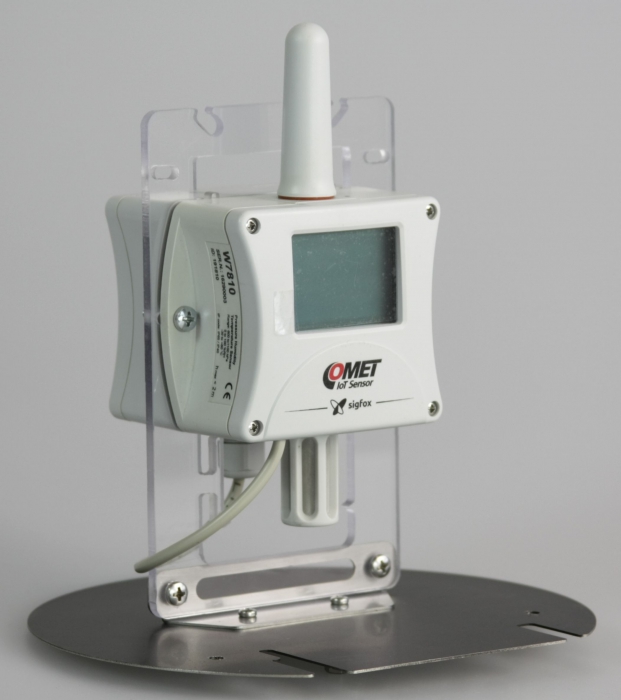

Cylindrical space with 110mm diameter and 210mm height is available inside of the plates for installation of entire climate measuring device with minimized solar radiation.

Excellent wasp and bug deterrence. Sophisticated design prevents insects from building nests inside and thus degrading measurement.

Low cost replacement for Stevenson screen, taking advantage of reduced maintenance and better performance due to the low time constant compared to the traditional Stevenson screen.

Works with COMET instruments and most professional weather equipment.

  • code
    F8000
  • On request

Technical data

GENERAL TECHNICAL DATA

Temperature operating range -40 to +65 °C
Relative humidity operating range 0 to 100 %RH
Storage temperature range -40 to +65 °C
Storage relative humidity range 0 to 100 %RH (no condensation)

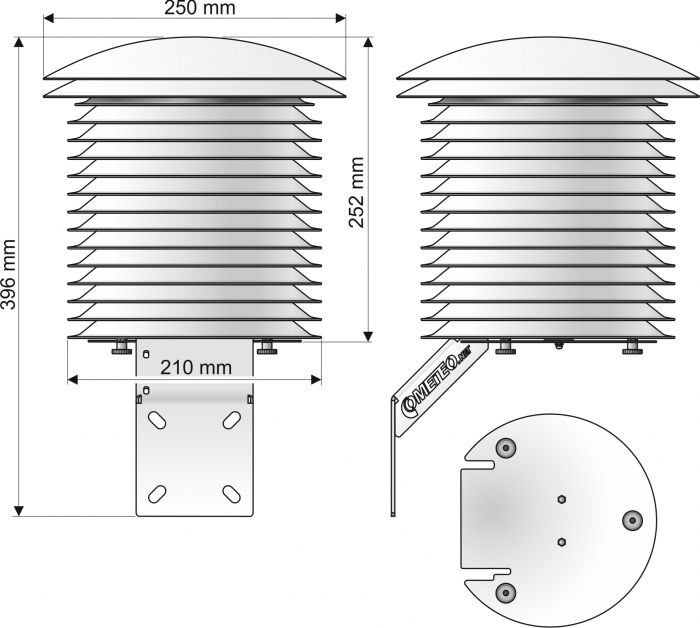

Dimension 250 mm (diameter), 396 mm (height)
Dimensions of internal space 110 mm (diameter), 210 mm (height)
Weight approximately 2.4 kg (without mounting clamps)
Material UV stabilized ASA, stainless steel
Warranty 3 years

Air Temperature in Meteorology

The measurement of air temperature in meteorology is a difficult task. Accurate air temperature measurements require minimization of local effects (e.g. trees and buildings) and minimization of environmental effects that influence the actual sensing of the temperature at the position of the sensor.

World Meteorological Organization - WMO defines internationally  the temperature of the air nearby the earth's surface as “the temperature indicated by a thermometer exposed to the air in a place sheltered from direct solar radiation” (WMO, 1992).

The main functions of thermometer shields are to protect the sensor from direct or indirect radiation from the sun during the day and from radiation from the sensor to the sky at night and to protect the sensor from wetting. Wetting of the sensor and screen is caused by fog, drizzle or rain. But protection against radiation and wetting conflicts with the requirement of sufficient ventilation. Due to insufficient ventilation a microclimate develops within the screen. In fact, all screens develop their own microclimate and the difference with the ambient climate depends on screen type and design.

It may be stated that the larger the bulk of a screen, the stronger the microclimate within the screen and the more the sensed temperature deviates from the real air temperature. From the above, it follows that thermometer screens should have a high reflectivity to minimize heating of the plates and subsequent warming of the air as it flows over the plates to the sensor. To decrease the time the air is in contact with the plate, the plate radial distance should be as small as possible. To prevent the development of microclimates within screens, also the blockage of ambient airflow by the screen should be minimized by making the plate spacing as large as possible, taking into account the requirement that wetting of the sensor should be prevented. Any design of a thermometer screen is a result of compromises.

Finding the optimal design is a serious challenge that may require the use of different methods for studying the behavior of screens. In the field, the actual differences between the air temperature in the screens and the ambient air temperature depend mainly on the prevailing weather conditions. Furthermore, the state of the ground and humidity of the soil will also affect the air temperature in the screen as radiation or reflection will cause screen dependent biases. This can easily occur in areas with snow cover and in deserts.

Applications:

Applications - Metrology

Meteorology - COMET sensors together with COMET radiation shields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Applications - Snow Guns

Snow Guns

Application - HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Optional accessories and download

code SP015C

IoT Wireless Temperature Datalogger for 2 external probes, with built-in GSM modem

IoT Wireless Temperature Datalogger for 2 external probes, with built-in GSM modem

code U0121M
Price $835
In stock 27 pcs
IoT Wireless Temperature Datalogger for 2 external probes, with built-in GSM modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger for 2 external probes, with built-in GSM modem and Flat Rate SIM Card

code U0121Msim
Price $830
In stock on request
IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem

code U0141M
Price $793
In stock on request
IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem and Flat Rate SIM Card

IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem and Flat Rate SIM Card

code U0141Msim
Price $868
In stock on request
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in GSM modem

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in GSM modem

code U3121M
Price $756
In stock on request
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in GSM modem and Flat Rate SIM Card

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in GSM modem and Flat Rate SIM Card

code U3121Msim
Price $828
In stock on request

Temperature data logger for one external Pt1000 probe

Temperature data logger for one external Pt1000 probe

code U0111
Price $242
In stock 16 pcs
Temperature data logger for two external Pt1000 probes

Temperature data logger for two external Pt1000 probes

code U0121
Price $279
In stock 8 pcs
Temperature data logger for four external Pt1000 probes

Temperature data logger for four external Pt1000 probes

code U0141
Price $373
In stock 16 pcs
Temperature and humidity data logger for external probe

Temperature and humidity data logger for external probe

code U3121
Price $321
In stock 12 pcs

code W0810

code W0810P

code W0811

code W0832

code W0832P

code W3810

code W3810P

code W3811

code W3811P

code W7810

code W7811

Web Sensor - one channel remote thermometer hygrometer

Web Sensor - one channel remote thermometer hygrometer

code P8511
Price $231
In stock 20 pcs
Web Sensor - four channels remote thermometer hygrometer

Web Sensor - four channels remote thermometer hygrometer

code P8541
Price $268
In stock 2 pcs
Web Sensor with PoE - one channel remote thermometer hygrometer

Web Sensor with PoE - one channel remote thermometer hygrometer

code P8611
Price $279
In stock 6 pcs
Web Sensor with PoE - four channels  remote thermometer hygrometer

Web Sensor with PoE - four channels remote thermometer hygrometer

code P8641
Price $321
In stock 17 pcs
Web sensor - remote thermometer hygrometer with Ethernet interface. Weather sensor for environment monitoring.

Web sensor - remote thermometer hygrometer with Ethernet interface. Weather sensor for environment monitoring.

code T3511
Price $536
In stock 9 pcs
Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

code T3611
Price $609
In stock 8 pcs
WebSensor - remote thermometer with Ethernet interface

WebSensor - remote thermometer with Ethernet interface

code T4511
Price $347
In stock 2 pcs
WebSensor with PoE - remote thermometer with Ethernet interface

WebSensor with PoE - remote thermometer with Ethernet interface

code T4611
Price $415
In stock 9 pcs
Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

code T7511
Price $762
In stock 4 pcs
Web Sensor with PoE - remote thermometer hygrometer barometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer barometer with Ethernet interface

code T7611
Price $825
In stock 7 pcs

Economy  humidity and temperature transmitter with 4-20mA outputs

Economy humidity and temperature transmitter with 4-20mA outputs

code P3110E
Price $205
In stock on request
Temperature transmitter outdoor, indoor with 4-20mA output

Temperature transmitter outdoor, indoor with 4-20mA output

code T0110
Price $205
In stock on request
Temperature and humidity outdoor, indoor probe with 0-10V output

Temperature and humidity outdoor, indoor probe with 0-10V output

code T0210
Price $357
In stock 12 pcs
Temperature and humidity probe with 0-10V output

Temperature and humidity probe with 0-10V output

code T0211
Price $389
In stock on request
Temperature transmitter with RS232 output

Temperature transmitter with RS232 output

code T0310
Price $231
In stock 9 pcs
Temperature transmitter with RS485 output

Temperature transmitter with RS485 output

code T0410
Price $331
In stock 11 pcs
Relative humidity outdoor, indoor probe with 4-20mA output

Relative humidity outdoor, indoor probe with 4-20mA output

code T1110
Price $315
In stock 17 pcs
Temperature and humidity outdoor, indoor probe with 4-20mA output

Temperature and humidity outdoor, indoor probe with 4-20mA output

code T3110
Price $357
In stock 23 pcs
RH+T+Tdp cable probe, output 4-20mA

RH+T+Tdp cable probe, output 4-20mA

code T3111
Price $389
In stock 11 pcs
Temperature and humidity probe with RS232 output, internal sensors

Temperature and humidity probe with RS232 output, internal sensors

code T3311
Price $289
In stock 4 pcs
Industrial temperature and humidity transmitter - RS232 output

Industrial temperature and humidity transmitter - RS232 output

code T3319
Price $331
In stock 2 pcs
RH+T+Tdp outdoor, indoor probe, RS485 interface

RH+T+Tdp outdoor, indoor probe, RS485 interface

code T3411
Price $410
In stock 18 pcs
Temperature and humidity transmitter with external probe - RS485 output

Temperature and humidity transmitter with external probe - RS485 output

code T3419
Price $452
In stock 3 pcs
Temperature transmitter with 4-20mA output

Temperature transmitter with 4-20mA output

code T4111
Price $174
In stock 8 pcs
Temperature transmitter with 0-10V output

Temperature transmitter with 0-10V output

code T4211
Price $174
In stock 8 pcs
Temperature transmitter with RS232 interface

Temperature transmitter with RS232 interface

code T4311
Price $179
In stock 3 pcs
Temperature transmitter with RS485 interface

Temperature transmitter with RS485 interface

code T4411
Price $273
In stock 9 pcs
Industrial temperature, humidity, bar. pressure transmitter - RS232 output

Industrial temperature, humidity, bar. pressure transmitter - RS232 output

code T7310
Price $504
In stock 26 pcs
Industrial temperature, humidity, bar. pressure transmitter - RS232 output

Industrial temperature, humidity, bar. pressure transmitter - RS232 output

code T7311
Price $531
In stock on request
Industrial temperature, humidity, bar. pressure transmitter - RS485 output

Industrial temperature, humidity, bar. pressure transmitter - RS485 output

code T7410
Price $630
In stock 13 pcs
Industrial temperature, humidity, bar. pressure transmitter - RS485 output

Industrial temperature, humidity, bar. pressure transmitter - RS485 output

code T7411
Price $662
In stock 1 pcs

Temperature and humidity regulator

Temperature and humidity regulator

code H3021
Price $546
In stock on request
Temperature and humidity regulator with 230Vac/8A relays

Temperature and humidity regulator with 230Vac/8A relays

code H3061
Price $641
In stock on request
Temperature and humidity regulator with RS232 output

Temperature and humidity regulator with RS232 output

code H3331
Price $562
In stock 1 pcs
Temperature and humidity regulator with RS485 output

Temperature and humidity regulator with RS485 output

code H3431
Price $683
In stock 3 pcs
Thermometer hygrometer with Ethernet interface and relays

Thermometer hygrometer with Ethernet interface and relays

code H3531
Price $735
In stock 5 pcs
Temperature transmitter with RS232 output

Temperature transmitter with RS232 output

code H4331
Price $384
In stock on request
Temperature transmitter with RS485 output

Temperature transmitter with RS485 output

code H4431
Price $478
In stock 1 pcs
Thermometer with Ethernet interface and relays

Thermometer with Ethernet interface and relays

code H4531
Price $609
In stock 5 pcs
Thermometer hygrometer barometer with Ethernet interface and relays

Thermometer hygrometer barometer with Ethernet interface and relays

code H7531
Price $867
In stock on request

Temperature sensor with 4-20mA output

Temperature sensor with 4-20mA output

code P0120
Price $105
In stock 97 pcs
Temperature transmitter with 0-10V output, adjustable

Temperature transmitter with 0-10V output, adjustable

code P0210
Price $151
In stock 7 pcs
Temperature Transmitter  Pt1000 -30°C to +80°C/ 4 to 20 mA

Temperature Transmitter Pt1000 -30°C to +80°C/ 4 to 20 mA

code P4121
Price $84
In stock 1 pcs
Temperature Transducer  Pt1000 0°C to +150°C/ 4 to 20 mA

Temperature Transducer Pt1000 0°C to +150°C/ 4 to 20 mA

code P4131
Price $84
In stock on request
Temperature Transducer Pt1000 -100°C to +30°C/ 4 to 20 mA

Temperature Transducer Pt1000 -100°C to +30°C/ 4 to 20 mA

code P4141
Price $84
In stock 10 pcs
Temperature Transducer  Pt1000 0°C to +35°C/ 4 to 20 mA

Temperature Transducer Pt1000 0°C to +35°C/ 4 to 20 mA

code P4151
Price $84
In stock 1 pcs
Temperature Transducer  Pt1000 0°C to +250°C/ 4 to 20 mA

Temperature Transducer Pt1000 0°C to +250°C/ 4 to 20 mA

code P4161
Price $84
In stock on request
Temperature Transducer  Pt1000 0°C to +400°C/ 4 to 20 mA

Temperature Transducer Pt1000 0°C to +400°C/ 4 to 20 mA

code P4171
Price $84
In stock 3 pcs
Temperature Transducer  Pt1000 -50°C to +50°C/ 4 to 20 mA

Temperature Transducer Pt1000 -50°C to +50°C/ 4 to 20 mA

code P4191
Price $84
In stock on request
Temperature transducer with 0-10V output

Temperature transducer with 0-10V output

code P4211
Price $137
In stock 3 pcs
Temperature Transducer  Pt100 -100°C to +200°C/ 4 to 20 mA

Temperature Transducer Pt100 -100°C to +200°C/ 4 to 20 mA

code P6181
Price $84
In stock 4 pcs
Temperature Transducer  Pt100 -50°C to +50°C/ 4 to 20 mA

Temperature Transducer Pt100 -50°C to +50°C/ 4 to 20 mA

code P6191
Price $84
In stock on request

Manuals

download-icon Instruction Manual
1.44 MB

Related products

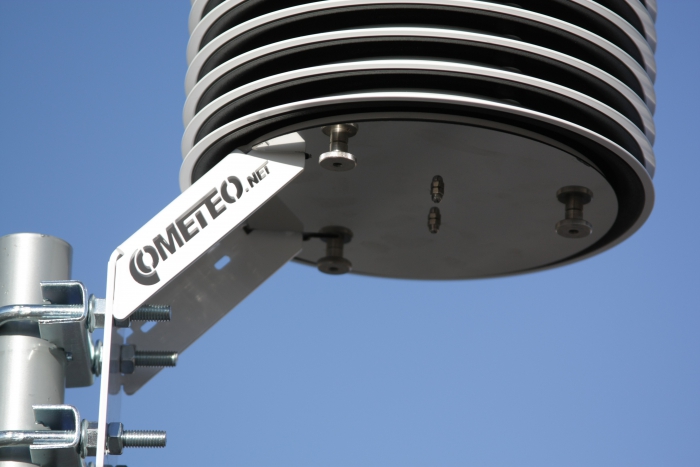

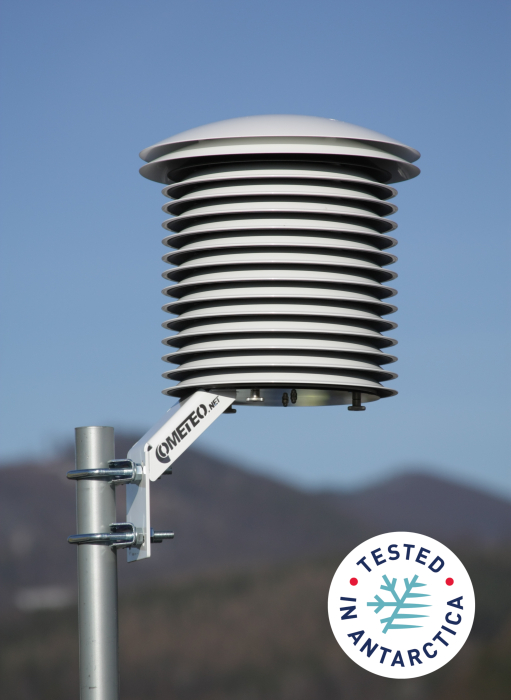

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8001
Price On request
In stock 4 pcs
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8004
Price On request
In stock on request
