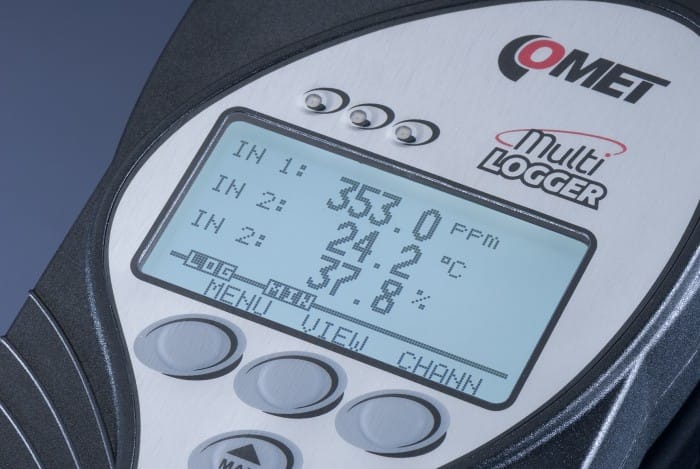

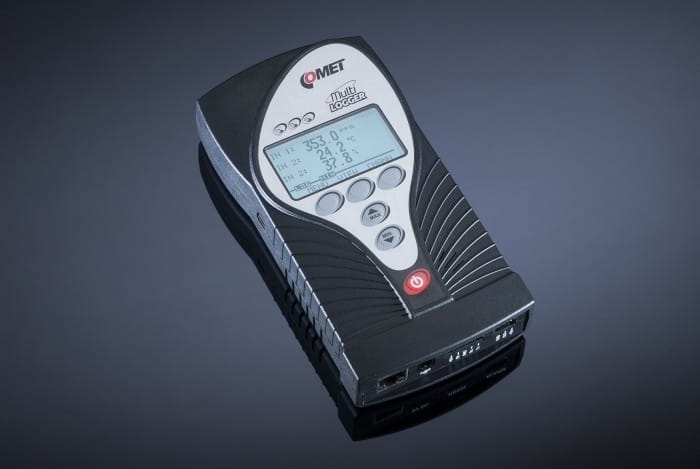

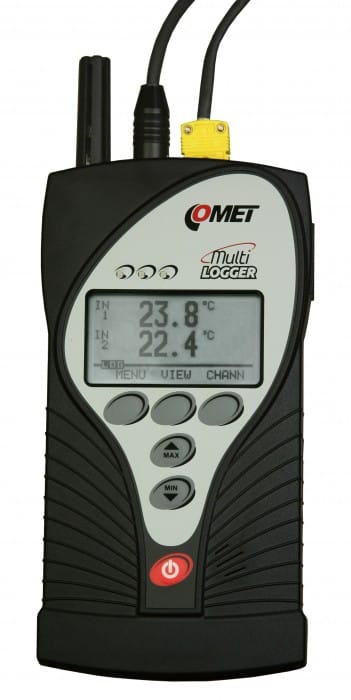

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Universal datalogger with 4 inputs. Two inputs for temperature-humidity probes and two inputs for thermocouples K, J, S, B, T, N.
Multilogger can be installed permanently to Ethernet network or work as portable device.

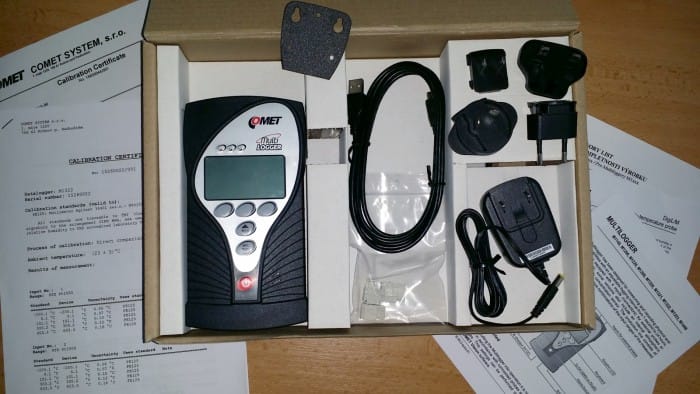

Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

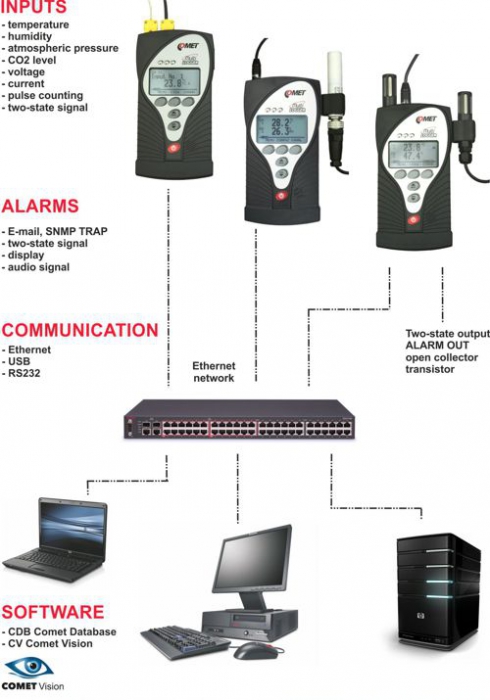

Data logger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.







  • code
    M1220
  • Warranty
    3 years
  • $1 075

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C
Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

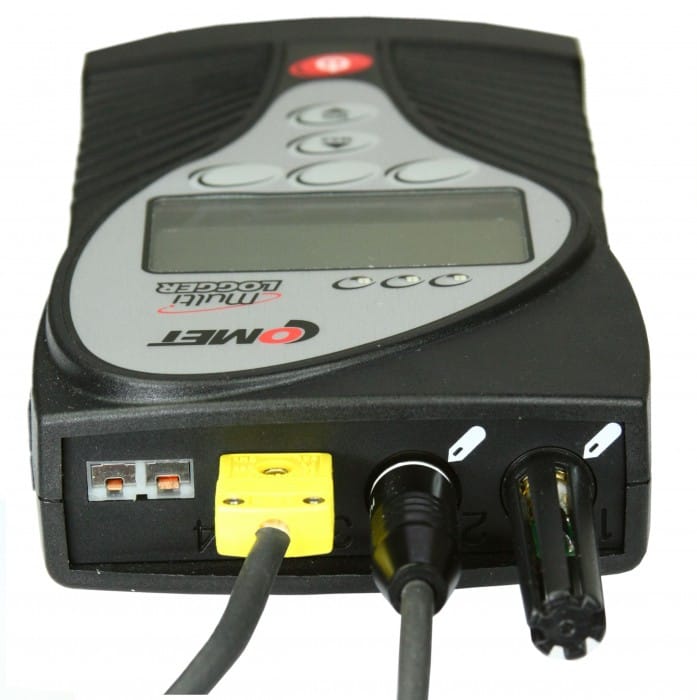

Channels 4x external temperature probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit

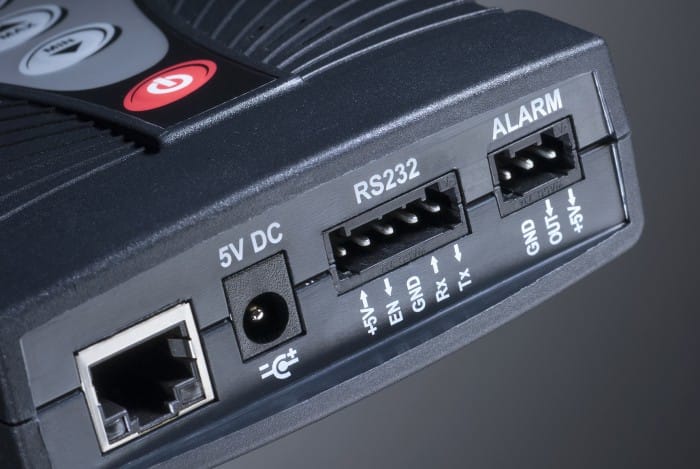

Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Optional accessories

Temperature Probes

Pt1000TG8/M, temperature probe

Pt1000TG8/M, temperature probe

Temperature range: -80 to 200°C
code SN104M
Price $60
In stock 23 pcs
Pt1000TG8/M, temperature probe, cable 2 m

Pt1000TG8/M, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105M
Price $65
In stock 110 pcs
Pt1000TG8/M, temperature probe, cable 5 m

Pt1000TG8/M, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108M
Price $75
In stock 136 pcs
Pt1000TG8/M, temperature probe, cable 10 m

Pt1000TG8/M, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113M
Price $100
In stock 88 pcs
Pt1000TR050S/M, temperature probe, cable 1 m

Pt1000TR050S/M, temperature probe, cable 1 m

Temperature range: -50 to 350°C
code SN247M
Price $130
In stock 9 pcs
Pt1000TR050S/M, temperature probe, cable 2 m

Pt1000TR050S/M, temperature probe, cable 2 m

Temperature range: -50 to 350°C
code SN248M
Price $140
In stock 12 pcs
Pt1000TR050S/M, temperature probe, cable 5 m

Pt1000TR050S/M, temperature probe, cable 5 m

Temperature range: -50 to 350°C
code SN249M
Price $190
In stock 10 pcs
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Temperature range: -50 to 200°C
code SN252M
Price -
In stock 17 pcs
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254M
Price -
In stock 2 pcs
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255M
Price -
In stock 10 pcs
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256M
Price -
In stock on request
Pt1000TG7/M, temperature probe

Pt1000TG7/M, temperature probe

Temperature range: -50 to 200°C
code SN164M
Price $85
In stock 2 pcs
Pt1000TG7/M, temperature probe, cable 2 m

Pt1000TG7/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165M
Price $85
In stock 16 pcs
Pt1000TG7/M, temperature probe, cable 5 m

Pt1000TG7/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166M
Price $95
In stock 24 pcs
Pt1000TG7/M, temperature probe, cable 10 m

Pt1000TG7/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167M
Price $115
In stock 17 pcs
2301-220/M, temperature probe, cable 1 m

2301-220/M, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168M
Price $95
In stock 11 pcs
2021-150/M, temperature probe, cable 1 m

2021-150/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169M
Price $120
In stock 5 pcs
2034-220/M, temperature probe, cable 1 m

2034-220/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175M
Price $130
In stock 13 pcs
2061-200/M, temperature probe, cable 1 m

2061-200/M, temperature probe, cable 1 m

Temperature range: -30 to 200°C
code SN178M
Price $170
In stock 14 pcs
2061-200/M, temperature probe, cable 2 m

2061-200/M, temperature probe, cable 2 m

Temperature range: -30 to 200°C
code SN179M
Price $175
In stock 10 pcs
2061-200/M, temperature probe, cable 5 m

2061-200/M, temperature probe, cable 5 m

Temperature range: -30 to 200°C
code SN180M
Price $190
In stock 20 pcs
2061-200/M, temperature probe, cable 10 m

2061-200/M, temperature probe, cable 10 m

Temperature range: -30 to 200°C
code SN181M
Price $215
In stock 7 pcs
PTS350A-5/M, temperature probe, cable 5 m

PTS350A-5/M, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182M
Price $95
In stock 17 pcs
PTS350A-10/M, temperature probe, cable 10 m

PTS350A-10/M, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183M
Price $115
In stock 4 pcs
Pt1000TGL40/M, temperature probe, cable 1 m

Pt1000TGL40/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185M
Price $55
In stock 25 pcs
Pt1000TGL40/M, temperature probe, cable 2 m

Pt1000TGL40/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186M
Price $60
In stock 21 pcs
Pt1000TGL40/M, temperature probe, cable 5 m

Pt1000TGL40/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187M
Price $65
In stock 19 pcs
Pt1000TGL40/M, temperature probe, cable 10 m

Pt1000TGL40/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188M
Price $75
In stock 17 pcs
Pt1000TR160/M, temperature probe, cable 1 m

Pt1000TR160/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199M
Price $50
In stock 21 pcs
Pt1000TR160/M, temperature probe, cable 2 m

Pt1000TR160/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200M
Price $50
In stock 33 pcs
Pt1000TR160/M, temperature probe, cable 5 m

Pt1000TR160/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201M
Price $55
In stock 43 pcs
Pt1000TR160/M, temperature probe, cable 10 m

Pt1000TR160/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202M
Price $65
In stock 73 pcs
Pt1000TR160/M, temperature probe, cable 15 m

Pt1000TR160/M, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203M
Price $70
In stock 18 pcs
2091-250/M, Stick-in probe, cable 1 m

2091-250/M, Stick-in probe, cable 1 m

Temperature range: -30 to 200°C
code SN210M
Price $180
In stock 4 pcs
2091-250/M, Stick-in probe, cable 2 m

2091-250/M, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211M
Price $190
In stock 13 pcs
2091-250/M, Stick-in probe, cable 5 m

2091-250/M, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212M
Price $230
In stock 8 pcs
2091-250/M, Stick-in probe, cable 10 m

2091-250/M, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213M
Price $295
In stock on request
Pt1000TG68/M, temperature probe, cable 2 m

Pt1000TG68/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232M
Price $85
In stock 26 pcs
Pt1000TG68/M, temperature probe, cable 5 m

Pt1000TG68/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233M
Price $100
In stock 26 pcs
Pt1000TG68/M, temperature probe, cable 10 m

Pt1000TG68/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234M
Price $120
In stock 24 pcs
Pt1000TR125/M, temperature probe, cable 1 m

Pt1000TR125/M, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239M
Price $145
In stock 2 pcs
Pt1000TR125/M, temperature probe, cable 2 m

Pt1000TR125/M, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240M
Price $160
In stock 8 pcs
Pt1000TR125/M, temperature probe, cable 5 m

Pt1000TR125/M, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241M
Price $200
In stock 4 pcs
Pt1000TR125/M, temperature probe, cable 10 m

Pt1000TR125/M, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242M
Price $260
In stock 4 pcs

Temperature/Relative humidity

Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIL/M
Price $145
In stock 9 pcs
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C
code DIGIL/M-1
Price $155
In stock 5 pcs
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C
code DIGIL/M-10
Price $220
In stock 2 pcs
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -3 to 105°C
code DIGIL/M-15
Price $260
In stock 1 pcs
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C
code DIGIL/M-2
Price $160
In stock 2 pcs
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C
code DIGIL/M-5
Price $185
In stock 3 pcs
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIS/M
Price $125
In stock 8 pcs
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C
code DIGIS/M-1
Price $130
In stock 2 pcs
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C
code DIGIS/M-10
Price $200
In stock 1 pcs
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C
code DIGIS/M-15
Price $240
In stock 2 pcs
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIS/M-2
Price $140
In stock 1 pcs
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIS/M-5
Price $160
In stock 3 pcs
Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/M-1
Price $155
In stock 3 pcs
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/M-2
Price $160
In stock on request
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/M-5
Price $185
In stock 3 pcs

Temperature range: -10 to 60°C
code

Thermocouple probes

CP500 thermocouple K surface probe

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C
code CP500
Price $100
In stock 2 pcs
CZ550 thermocouple K surface probe

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C
code CZ550
Price $100
In stock 5 pcs
CZ900 thermocouple K needle probe

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C
code CZ900
Price $100
In stock 6 pcs
GD1250 thermocouple "K" wire probe

GD1250 thermocouple "K" wire probe

Temperature range: -65 to 980°C
code GD1250-1
Price $45
In stock 3 pcs
GD1250 thermocouple "K" wire probe 2m

GD1250 thermocouple "K" wire probe 2m

Temperature range: -65 to 980°C
code GD1250-2
Price $80
In stock 7 pcs
GD1250 thermocouple "K" wire probe 3m

GD1250 thermocouple "K" wire probe 3m

Temperature range: -65 to 980°C
code GD1250-3
Price $120
In stock on request
GD1250 thermocouple "K" wire probe 4m

GD1250 thermocouple "K" wire probe 4m

Temperature range: -65 to 980°C
code GD1250-4
Price $155
In stock on request
GD260 thermocouple "K" wire probe

GD260 thermocouple "K" wire probe

Temperature range: -65 to 260°C
code GD260-1
Price $25
In stock 21 pcs
GD260 thermocouple "K" wire probe 2m

GD260 thermocouple "K" wire probe 2m

Temperature range: -65 to 260°C
code GD260-2
Price $45
In stock 9 pcs
GD260 thermocouple "K" wire probe 3m

GD260 thermocouple "K" wire probe 3m

Temperature range: -65 to 260°C
code GD260-3
Price $65
In stock 4 pcs
GD260 thermocouple "K" wire probe 4m

GD260 thermocouple "K" wire probe 4m

Temperature range: -65 to 260°C
code GD260-4
Price $85
In stock 3 pcs
GD700 thermocouple "K" wire probe

GD700 thermocouple "K" wire probe

Temperature range: -65 to 700°C
code GD700-1
Price $25
In stock 2 pcs
GD700 thermocouple "K" wire probe 2m

GD700 thermocouple "K" wire probe 2m

Temperature range: -65 to 700°C
code GD700-2
Price $45
In stock on request
GD700 thermocouple "K" wire probe 3m

GD700 thermocouple "K" wire probe 3m

Temperature range: -65 to 700°C
code GD700-3
Price $65
In stock on request
GD700 thermocouple "K" wire probe 4m

GD700 thermocouple "K" wire probe 4m

Temperature range: -65 to 700°C
code GD700-4
Price $85
In stock 3 pcs
GT1150 thermocouple "K" insertion probe

GT1150 thermocouple "K" insertion probe

Temperature range: -50 to 1150°C
code GT1150
Price $100
In stock 10 pcs

Other accessories

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price $10
In stock 48 pcs

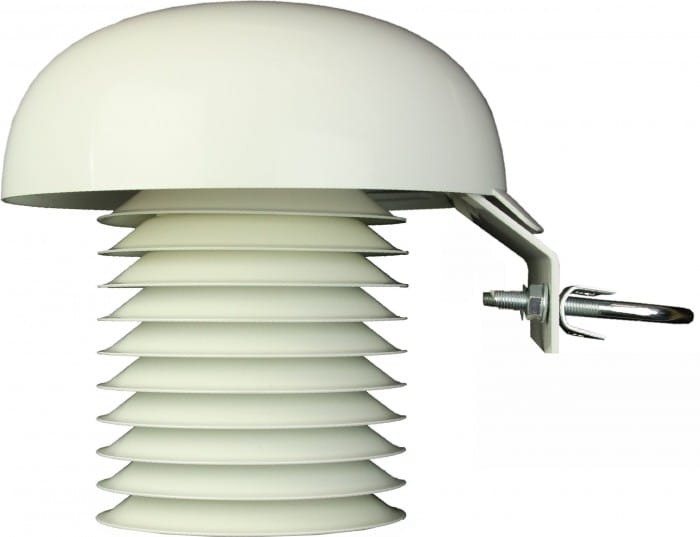

COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

COMETEO Professional Universal Multi-plate Radiation Shield for Weather Sensors

code F8110
Price $250
In stock 6 pcs
Plastic transport case for Multilogger

Plastic transport case for Multilogger

code BM511
Price $75
In stock 10 pcs
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026
Price $30
In stock 1 pcs
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price $70
In stock 2 pcs
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
Price $50
In stock 16 pcs
Adapter for easy connection U/I signals to Multilogger

Adapter for easy connection U/I signals to Multilogger

code MLP006
Price $30
In stock 4 pcs
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Price $15
In stock 2 pcs
Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Price $45
In stock 16 pcs
Watertight case with cable glands for Multilogger, transparent lid

Watertight case with cable glands for Multilogger, transparent lid

code MLP007
Price $155
In stock on request

Monitoring software

COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Price $1
In stock yes

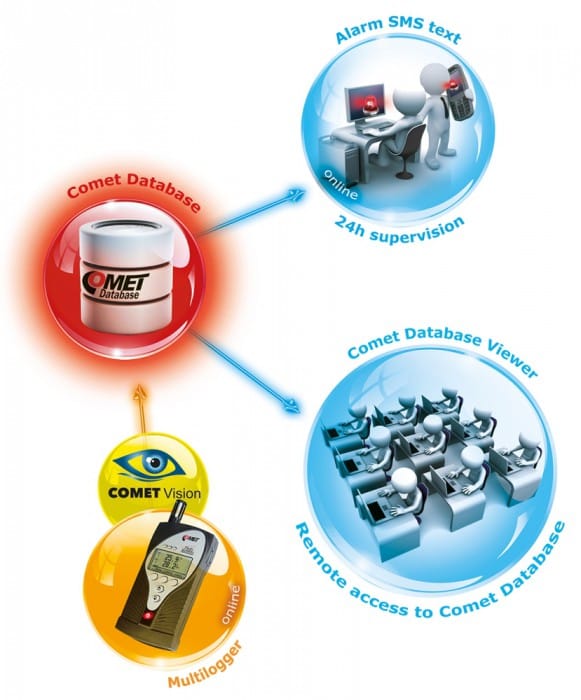

Comet Database

Comet Database

code CDB
Price $370
In stock yes

Multilogger Demo
